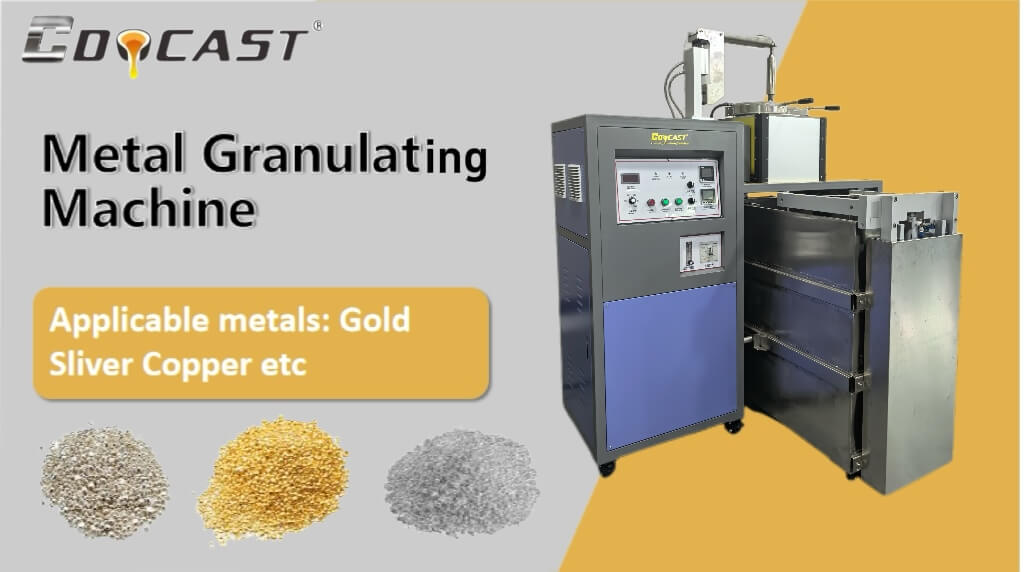

Cdocast Metal Granulating Machine
Cdocast Metal Granulating Machine
- CDOCAST metal granulating machine
What Is Metal Granulating Machine
Cdocast metal granulating machine is a machine used for producing various metal granules such as gold, silver, copper, etc. It is widely used in jewelry, scrap metal recycling, refining and other fields. The metal granulator combines metal melting with granulation to produce metal particles such as gold, silver, copper, etc. It can achieve the manufacturing of 5 kg to 300 kg of metal granules.
Metal materials are melted into a liquid state through melting, and then the liquid metal flows into a mold with holes and is cooled by water to form irregular metal granules. Different sizes of granules can be obtained by the size of the mold aperture.The entire melting process is carried out in protective gas to make the granules shiny.
0.8-1.0mm is the best size to obtain spherical granules.
The Advantages Of Metal Granulating Machine
- The metal granulator is used to produce high-quality precious metal particles and alloy particles with uniform colors. The surface of the finished particles has no oxidation, high density, and no pores, especially good sphericity, uniform particles, and stable color.
- Adopting the most advanced IGBT intermediate frequency induction heating technology, the melting speed is fast. PID technology can achieve precise temperature control and improve the quality of finished products.
- The maximum melting temperature can reach 1600℃, and PLC control system can be used. It can be operated through a touch screen, with simple buttons and more convenient use, and clear parameter settings.
- Equipped with an inert gas protection system, it minimizes metal melting and oxidation during the casting process, especially suitable for precious and alloy metals that are prone to oxidation. It also reduces the loss of metal smelting and extends the lifespan of the crucible.
- By adopting the separation arrangement of the material box and the water tank, the material can be easily collected and obtained when the granulation is completed.
- The mold is a porous design, installed at the bottom of the crucible to cast the molten metal into particles, and the granulation speed is faster.
- Use dedicated cooling water to prevent metal particles from adhering to each other, making particle formation more uniform.
- A detailed and complete self-diagnosis system and protection functions ensure a low equipment failure rate.
- It has the function of automatic frequency tracking, making the melting process more stable and safe. During work, there is no noise and the granulation time is shorter, greatly improving production efficiency.
- Can achieve 24-hour continuous work. The feeding can be continuously carried out, and after the first batch of smelting is finished, the feeding can continue to be carried out in the smelting furnace without stopping the machine, thus achieving mass production and being more efficient.
Why Choose CDOCAST Metal Granulating Machine
CDOCAST metal granulating machine is suitable for producing various metal particles, such as gold, silver, K-gold, copper, copper alloys, etc. The metal granulator mainly consists of a smelting system, a water tank, and a loading frame. Its structural composition is simple, using advanced IGBT induction heating technology, with faster and more stable melting speed, and higher cost-effectiveness, making it a good choice for many metal processing plants.
CDOCAST metal granulating machine is equipped with an argon flow protection device. During the melting and granulation process, argon or nitrogen gas will be injected for protection to minimize the oxidation of precious metals. CDOCAST can customize different metal granulators for customers based on different metals and production capacities.
We have many years of expertise in this field, with good quality and quite competitive prices.
To know more informationwarmly welcome your inquiry!
