Hydraulic titling Small Induction Furnace

CDOCAST Top Advanced Hydraulic Small Induction Furnace . Inquiry Now!

Hydraulic Titling Small Induction Furnace
Hydraulic Titling Small Induction Furnace2
small induction furnace

1Finished Products1

1Product Details1

[what is hydraulic small induction furnace]

The hydraulic small induction furnace is specially designed for melting small volumes of 100-350 Kg of ferrous and non-ferrous metals.

The small induction furnace is equipped with a hydraulic tilting mechanism, the tilting furnace body comes with hydraulic cylinder and hydraulic station, IGBT induction heating technology is applied  for the power supply, the small induction melter comes with  PLC touch screen design, which makes the whole operation more precise, accurate and safe.

The whole furnace body is made of steel shell, with silicon steel sheet around the furnace body for magnetic insulation, which can effectively prevent the furnace body from heating up.Due to the structural design of the all-steel shell furnace body, the entire furnace is very strong and its service life is greatly extended.

Melting capacity of this small induction furnace is from 100kg upto 350kg ,graphite crucible is adopt for varies metals, the melting temperature can reach  1650 degree in 10 minutes.

Welcome to Inquiry more details about our HYDRAULIC TILTING SMALL INDUCTION FURNACE IN CHINA

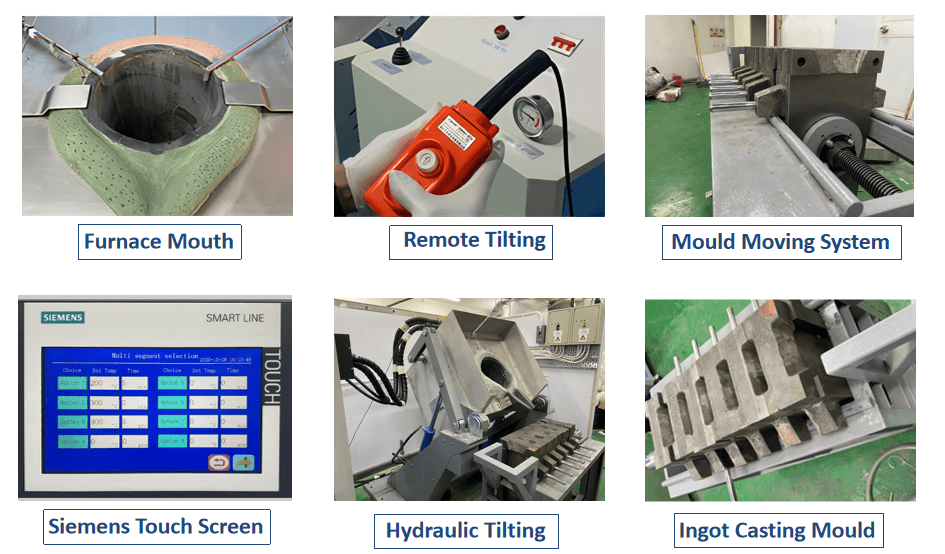

Machine Pictures

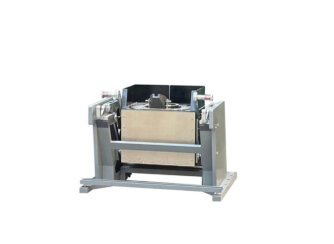

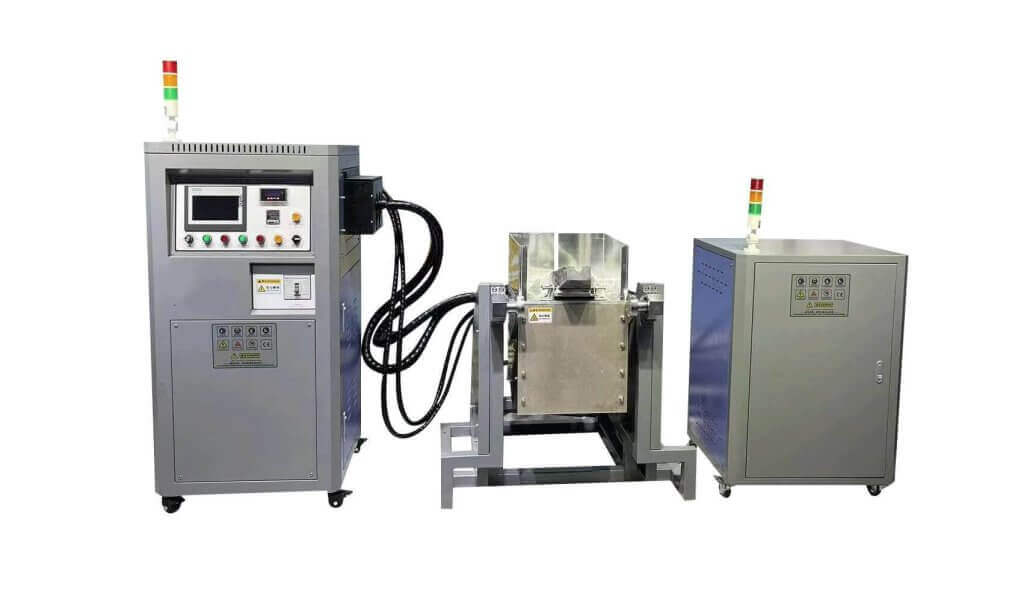

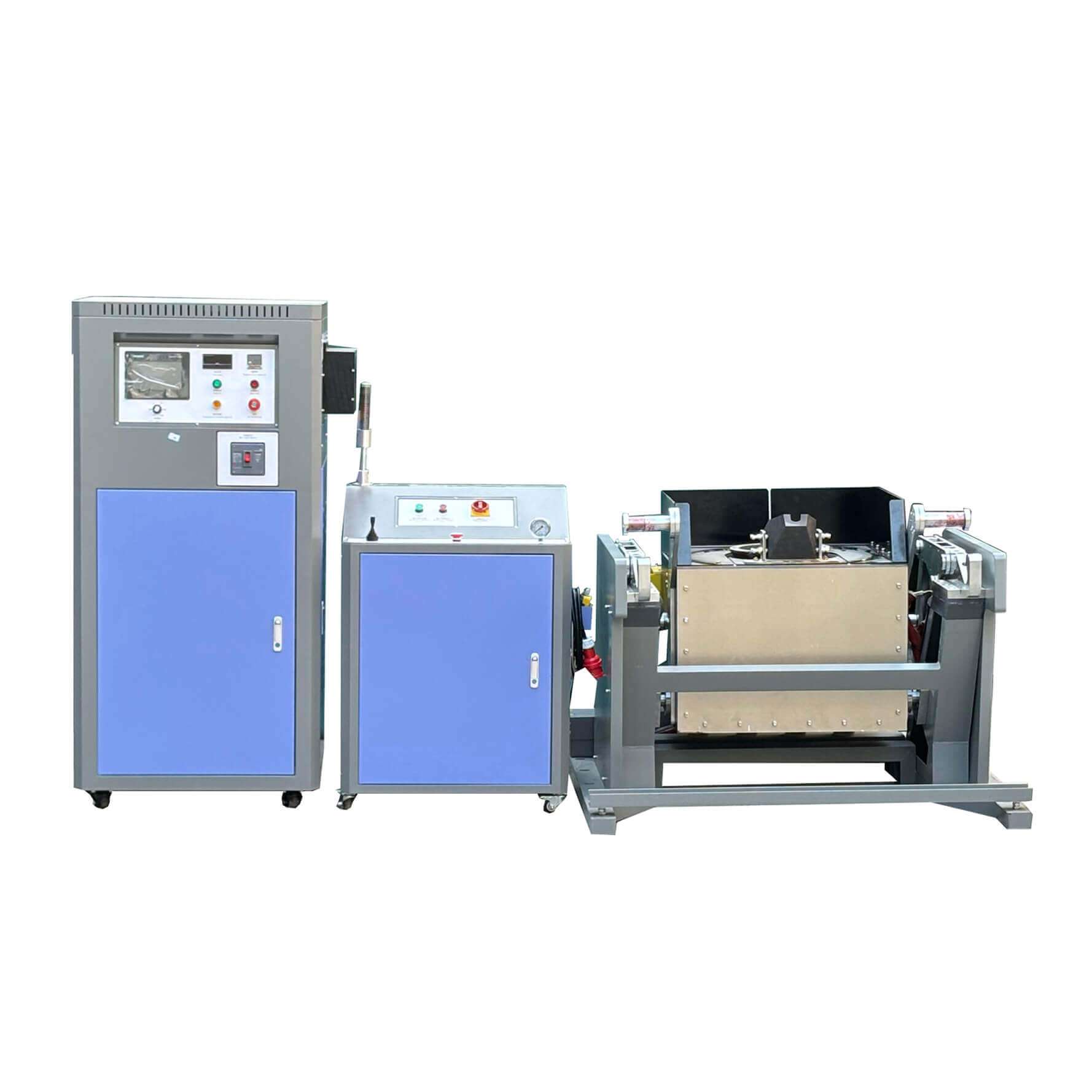

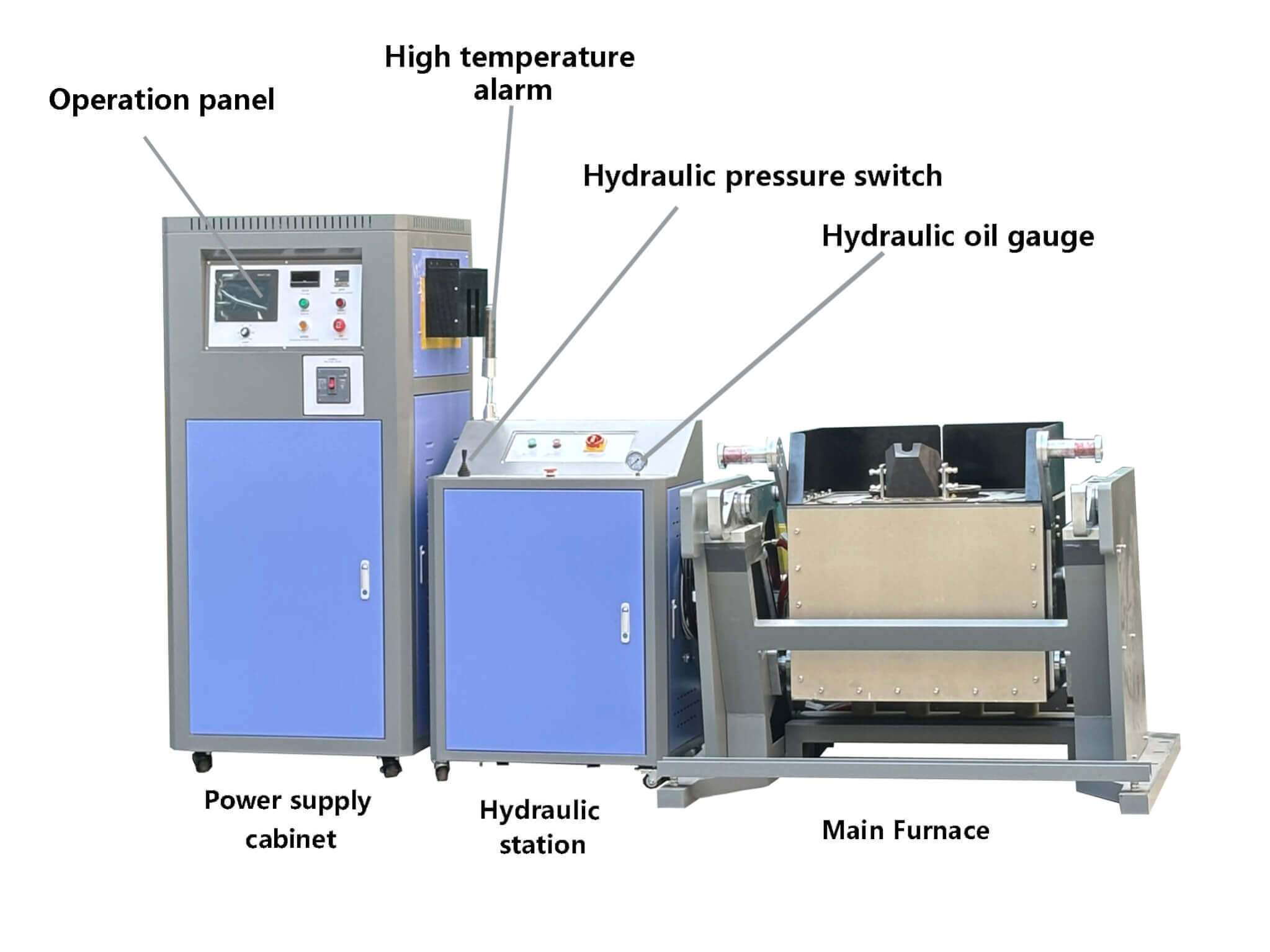

50-150KG Hydraulic Small Induction Furnace



Click to watch the video

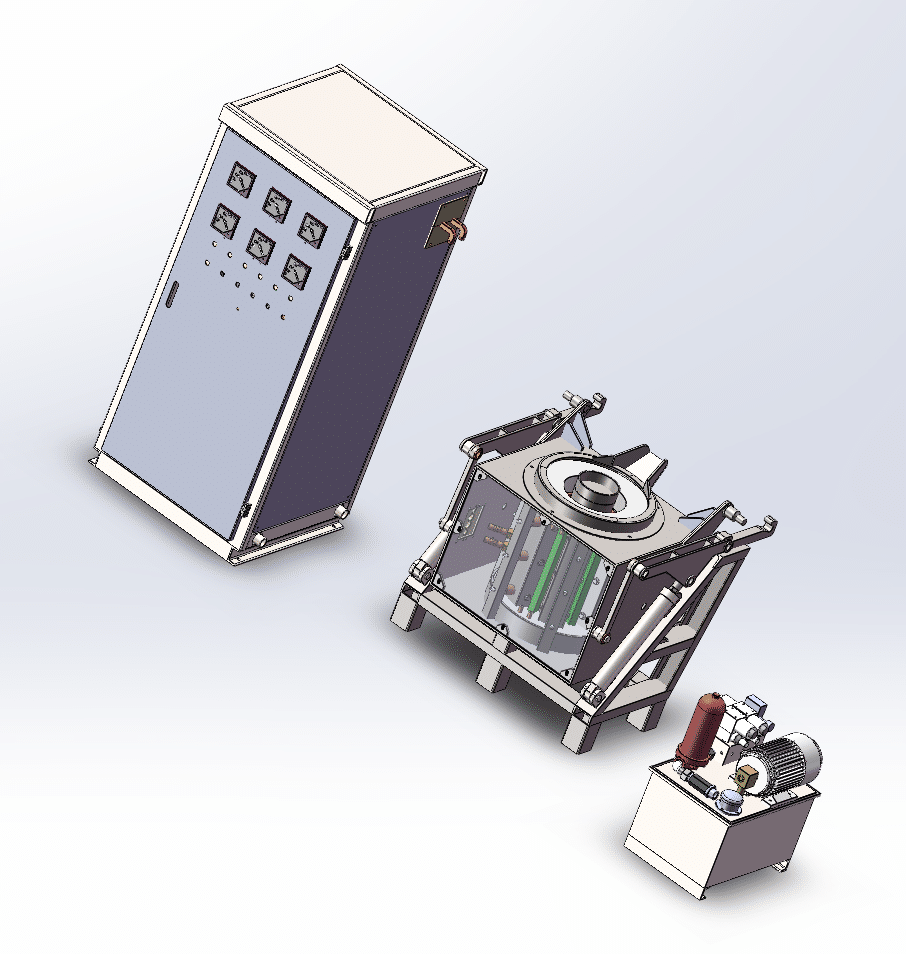

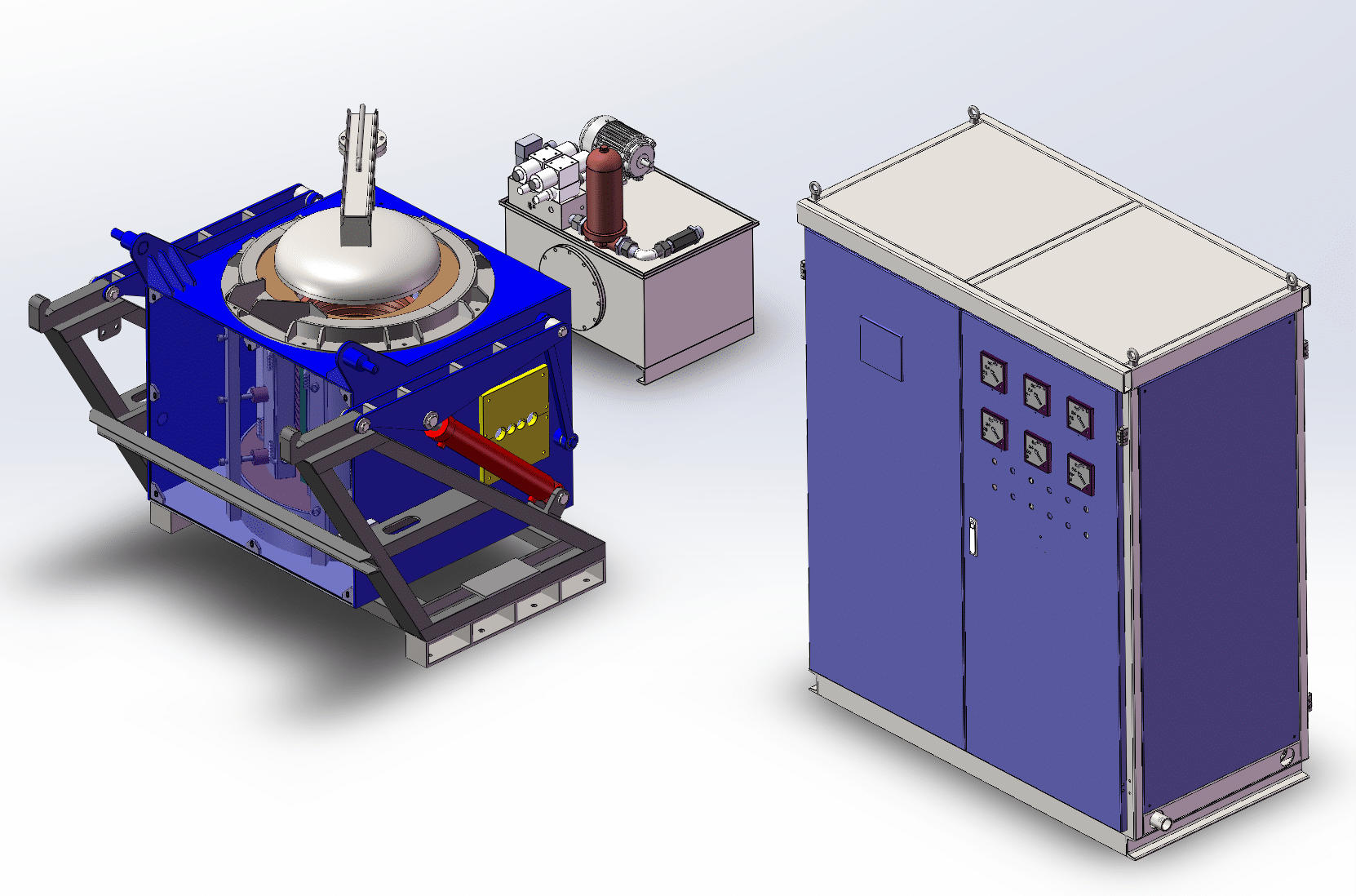

100-300KG Hydraulic Induction Furnace



Click to watch the video

*The shell can be customized as 8cm thick stainless steel plate, make the furnace stronger and durable without rust

Parameter

Power Supply Parameter of Hydraulic titling small induction furnace

Model CDO-HT45 CDO-HT70 CDO-HT90 CDO-HT110 CDO-HT160
MAX input power 45KW 70KW 90KW 110KW 160KW
MAX input current 68A 105A 135A 168A 240A
Input voltage Three-phase 340V ~420V 50/60Hz
Oscillation frequency 1K~20KHz
Requirement of cooling water Hydraulic pressure ≥0.3Mpa
Flow rate ≥20L/Min
Temperature of water ≤45℃

Melting Capacity Parameter of Hydraulic titling small induction furnace

Model Fe, ss Cu, Au, Ag Al, Al-alloy
CDO-HT45 18kg 50kg 18kg
CDO-HT70 25kg 80kg 25kg
CDO-HT90 40kg 120kg 40kg
CDO-HT110 50kg 150kg 50kg
CDO-HT160 100kg 250kg 100kg
Remark: Above melting capacity sheet for general reference; Melting duration: When the crucible is hot,20~30min./workload; When the crucible is cold(first melt),40~50min./ workload.

Click the link to get the crucible size

Feature

1:CDOCAST’ hydraulic small induction furnace with advanced IGBT induction heating technology are characterized by a significant energy saving of about 20% compared to KGPS induction heating.

2:Adopt the Ultra-highly conductive graphite crucible which is available to meltalmost all metals,  the  super-strong electromagnetic stirring force makes alloying and metallization more easier

3:CDOCAST small induction furnace comes with Siemens touch screen design, the integrated power cabinet structure makes the whole operation more convenient & automatic. All functions are centralized in the PLC module and the entire melting process can be monitored in real time.

4: Comes With The ability to work continuously for 24 hours, which allows customers to meet a variety of production requirements.

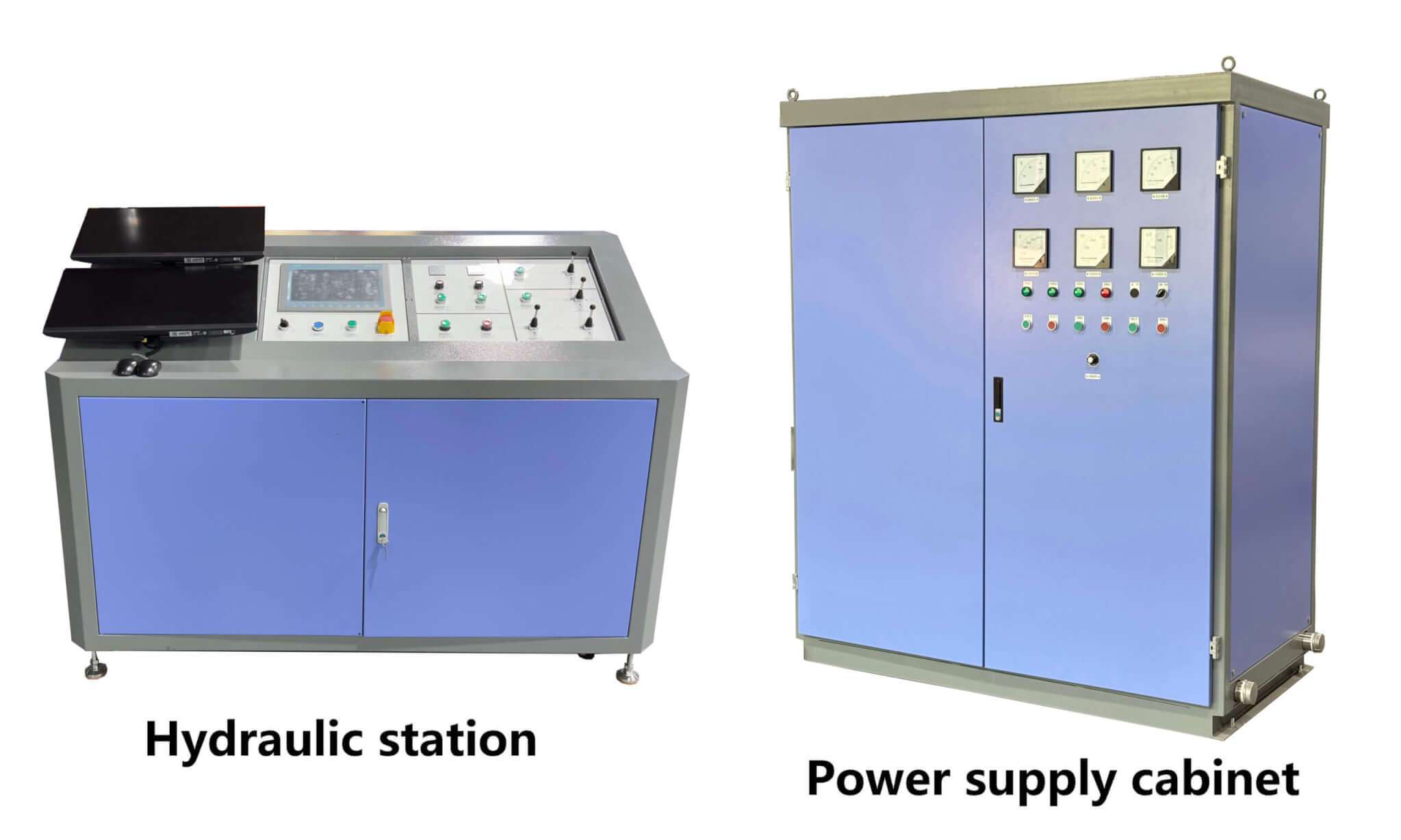

5:A removable hydraulic station designed to keep workers away from the hot molten pot  when it’s time to dump, making the pouring process safer.

Hydraulic-Titling-Small-Induction-Furnace

Hydraulic tilting mechanism can be operated remotely or control switch on the hydraulic station

Hydraulic Titling Small Induction Furnace POWER

Equipped with various safety alarm functions, over-current, over-pressure, water shortage, high temperature alarm, in case of emergency, the furnace can automatically stop running to gurantee the  operation safety

Hydraulic Titling Small Induction Furnace panel

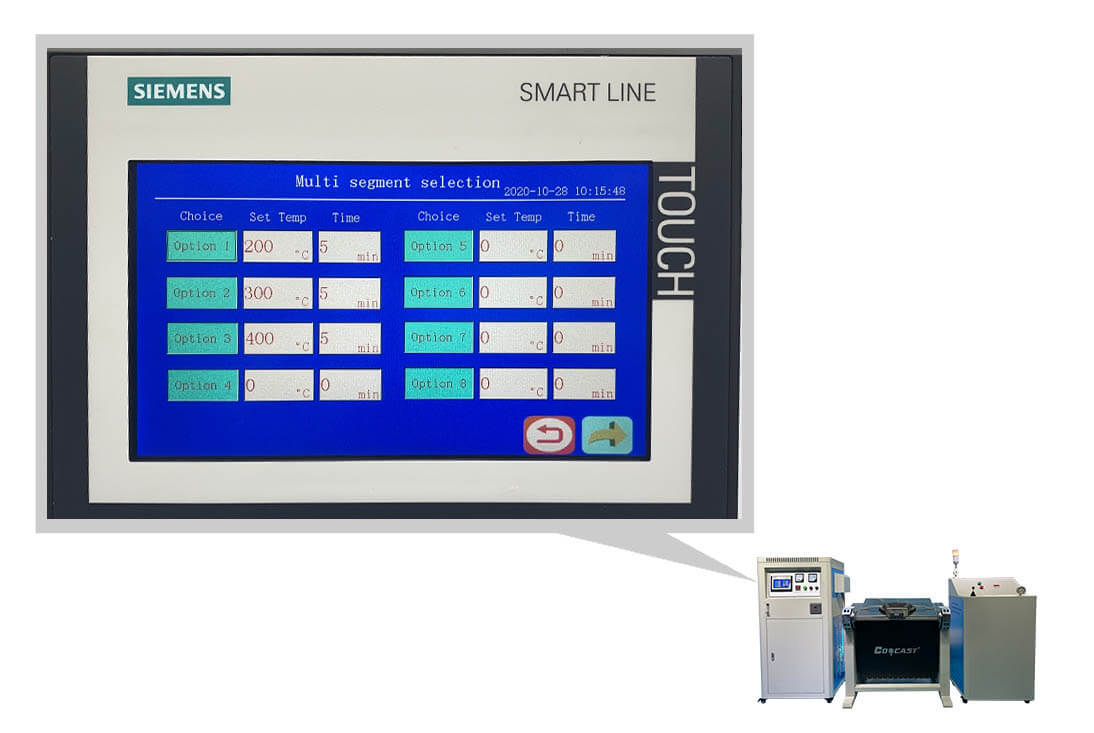

Seimens Touch Screen (PLC) comes with the Hydraulic small induction furnace which can make all operational functions programmed

Why CDOCAST Hydraulic titling Small Induction Furnace

2 Years Warranty Time

2 Years Warranty Time

CDOCAST Provide 2 Warranty time , and during the warranty time we will be responsible for the all aftersales service & spare parts for free

Innovation

Innovation

CDOCAST Provide more value & turnkey Solution to Metal Melting & Casting According to Each Customer

 Quality Gurantee

Quality Gurantee

We owe it to each of our customers, CDOCAST adopt world famous brand components to improve our machine working performance.
