Wax Burnout Oven

The most popular wax burnout furnace for sale. Inquiry now!

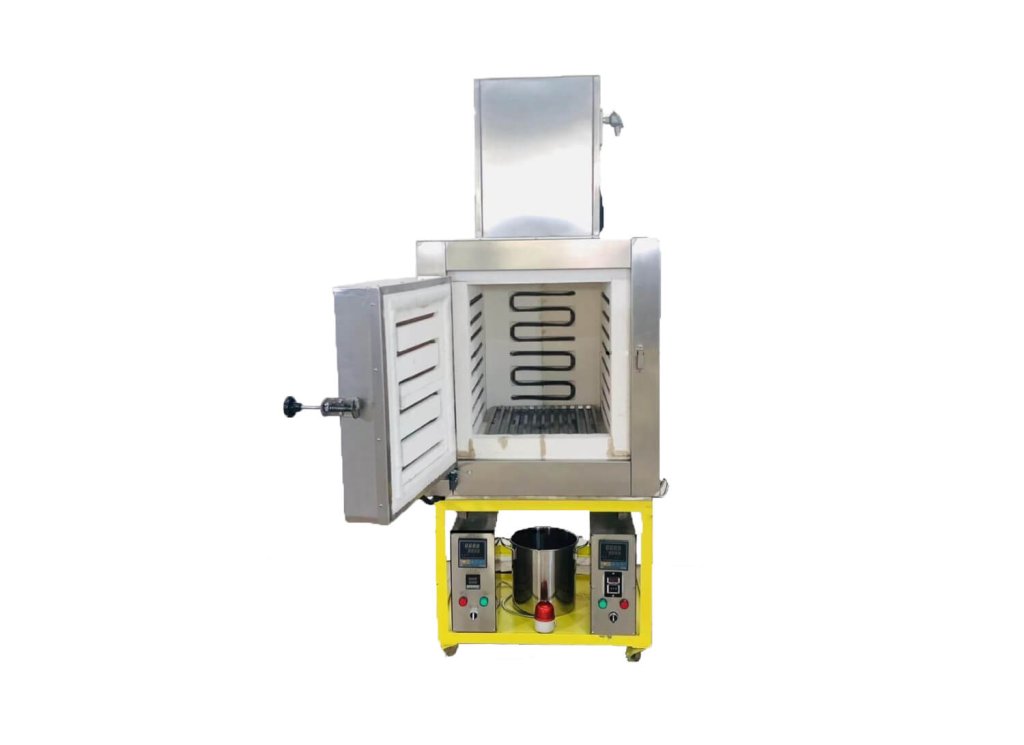

Small burnout oven
Jewelry Vacuum Casting Machine

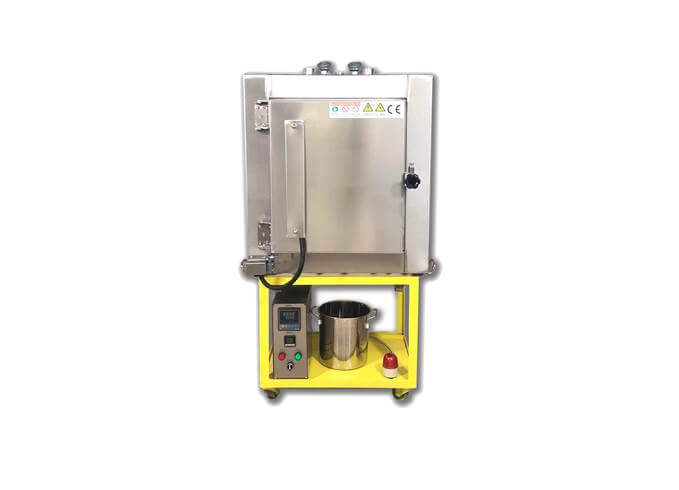

Small burnout oven

1Product Shows1

1Product Details1

[what is wax burnout oven]

The Wax Burnout Oven is used for melting and flowing the wax in the plaster mold and a hollow plaster mold is obtained in the process of jewelry casting.

A special secondary combustion design recollects the part of the dewaxing process that is not fully burned and re-burns fully to minimize the wax smell in the environment.

The Oven adopts a stainless steel shell, which is more durable than an iron shell and has better anti-corrosion performance. It uses high temperature resistant and wear-resistant bricks as thermal insulation bricks to ensure stable temperature.

Also, the Burnout Oven is easy to operate and adopts imported heating wire. When replacing the heating wire, there is no need to disassemble the refractory plate, and it can be replaced directly.

The oven has high safety performance. When the furnace door is opened, it will automatically cut off the power to ensure the safety of the operator.

Machine Pictures

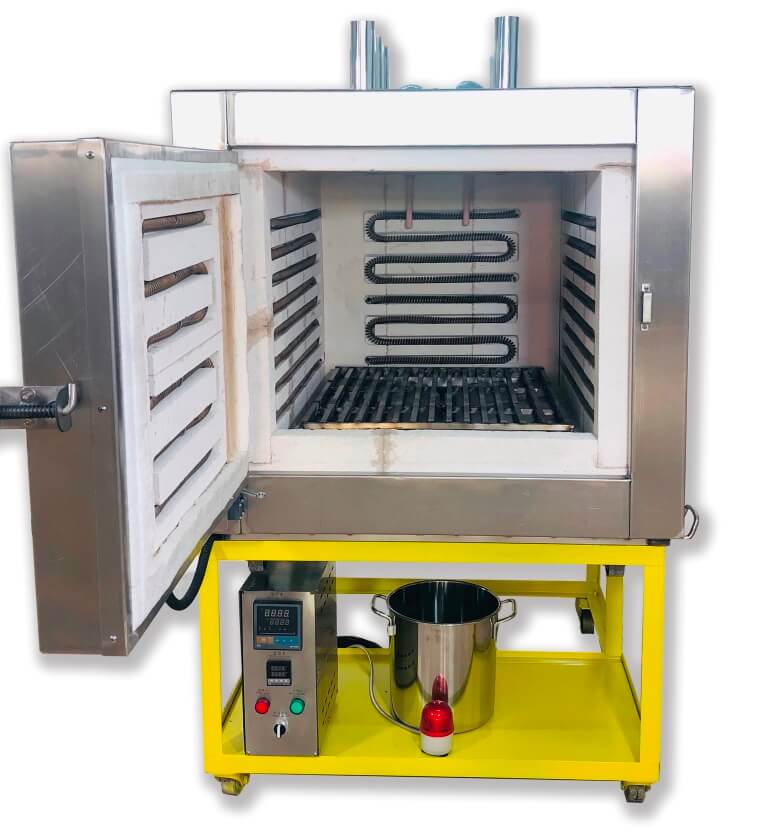

small burnout oven detail

Parameter

Model number CDO-WF2 CDO-WF4 CDO-WF6 CDO-WF9 CDO-WF12 CDO-WF18 CDO-WF24 CDO-WF32 CDO-WF40
Power source Single phase 220V Single phase 220V Single phase 220V Single phase 220V 3 phase 380V, 50/60Hz 3 phase 380V, 50/60Hz 3 phase 380V, 50/60Hz 3 phase 380V, 50/60Hz 3 phase 380V, 50/60Hz
Power 2.5kw 3kw 6kw 6kw 7.5kw 7.5kw 9kw 12kw 17kw
Capacity 2 pcs of 4*9 inch flask 4 pcs of 4*9 inch flask 6 pcs of 4*9 inch flask 9 pcs of 4*9 inch flask 12 pcs of 4*9 inch flask 18 pcs of 4*9 inch flask 24 pcs of 4*9 inch flask 32 pcs of 4*9 inch flask 40 pcs of 4*9 inch flask
maximum temperature 1000℃ 1000℃ 1000℃ 1000℃ 1000℃ 1000℃ 1000℃ 1000℃ 1000℃
Chamber size 300* 150* 300 mm 310*310*350 mm 440*310*350 mm 440*440*350 mm 440*310*570mm 440*460*570 mm 580*460*570 mm 600*600*570 mm 720*600*570 mm
Dimension 470* 750* 940 mm 620*750*940 mm 620*890*980 mm 740*880*940 mm 620*900*1080 mm 760*900*1080 mm 1020*700*1100 mm 1030*900*1100 mm 1150*900*1100 mm
Weight 81KG 103KG 136KG 150KG 165KG 179KG 186KG 200KG 220KG

Feature

Features of the wax burnout oven

1Wax burnout oven is specially designed for secondary combustion, it recollects the incomplete part of the dewaxing process and re-burns it to fully burn and minimize the wax smell in the environment.

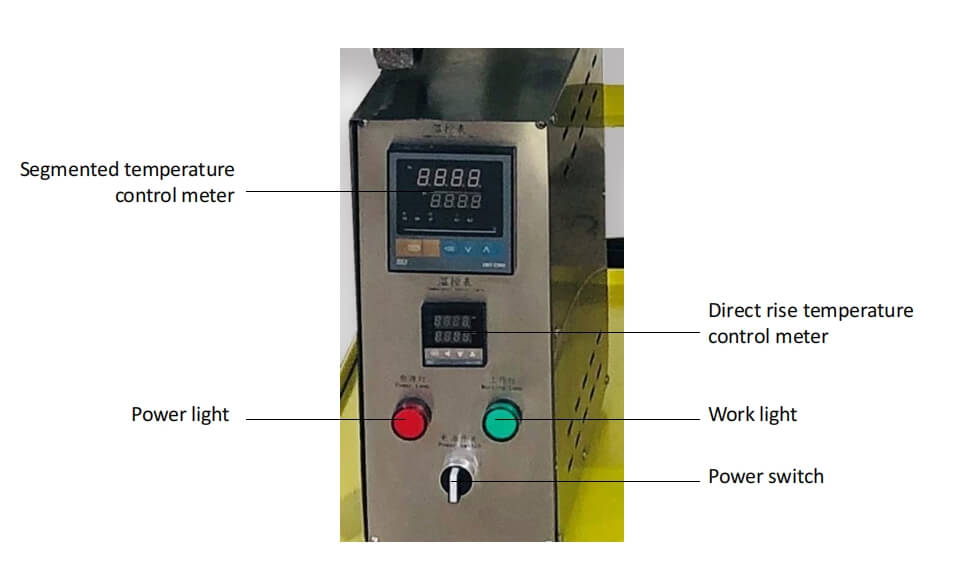

2Full automatic temperature control with over-temperature protection and break-even protection to prevent the stove from burning out of control and causing fire hazards.
3:. Proven intermittent power failure function to control the heating speed, to ensure the quality of plaster type sintering and improve the output rate of castings.
4. The heating element design layout is reasonable, the temperature inside the furnace is even, air convection is favorable to the evaporation and discharge of water after heating of wet workpiece, which improves the service life of heating element.
5 The furnace door is equipped with a safety device, when the door is opened, the door automatically closes to ensure the safety of the operator.
6The furnace is made of new high temperature resistant and light weight material, which has the characteristics of high efficiency, energy saving and environmental protection.

Why CDOCAST Wax Burnout Oven

2 Years Warranty Time

2 Years Warranty Time

CDOCAST Provide 2 Warranty time , and during the warranty time we will be responsible for the all aftersales service & spare parts for free

Innovation

Innovation

CDOCAST Provide more value & turnkey Solution to Metal Melting & Casting According to Each Customer

 Quality Gurantee

Quality Gurantee

We owe it to each of our customers, CDOCAST adopt world famous brand components to improve our machine working performance.
