[laser marking machine principle]

The principle of laser marking machine is to use a laser beam to make permanent marks on a variety of different material surfaces.

The effect of marking is to expose the deeper layers of material through the evaporation of the surface material, or to “engrave” the marks through the chemical and physical changes of the surface material caused by light energy, or to burn away part of the material through light energy to reveal the desired etching pattern or text.

Laser marking machines are mainly divided into: CO2 laser marking machine, semiconductor laser marking machine, fiber laser marking machine and YAG laser marking machine.

Laser marking machine is mainly used in some occasions requiring finer and higher precision. For example: electronic components, integrated circuits, electrical appliances, mobile communications, hardware products, tool accessories, precision equipment, glasses and watches, jewelry, auto parts, plastic buttons, building materials, PVC pipes.

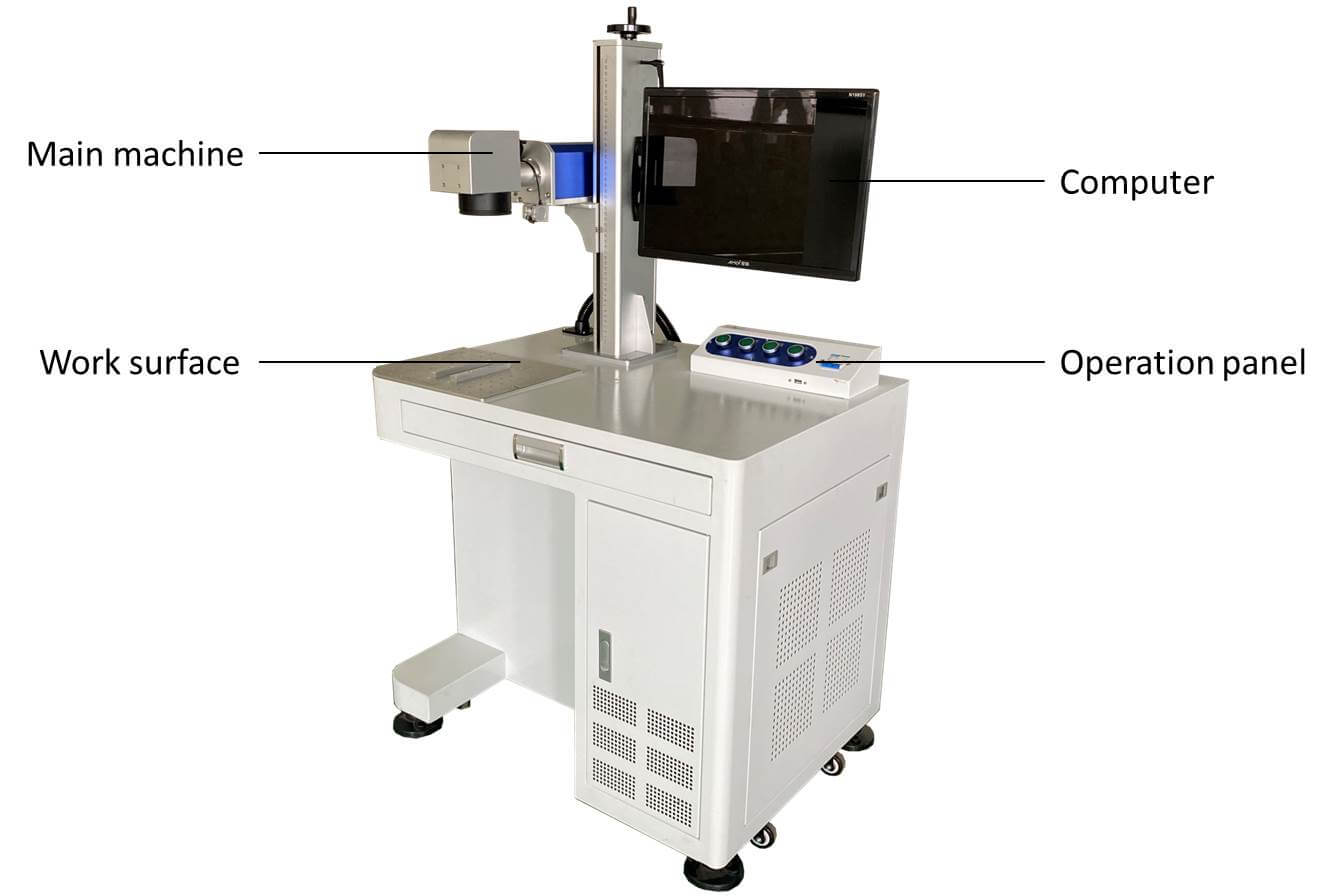

laser marking machine details


Model number: CDO-LM20 CDO-LM30
Laser power: 20W 30W
Laser wavelength 1064nm 1064nm
Beam quality <1.3m² <1.3m²
Repeat frequency 20-200KHz 20-200KHz
Marking speed: 9000mm/s 9000mm/s
Marking range: ≤300*300mm(customized) ≤300*300mm(customized)
Min. line width 0.02mm 0.02mm
Min. character 0.1mm 0.1mm
Power consume 0.8KW 0.8KW
Cooling way Air-cooling Air-cooling
Power demand 220V±10%/50Hz 220V±10%/50Hz

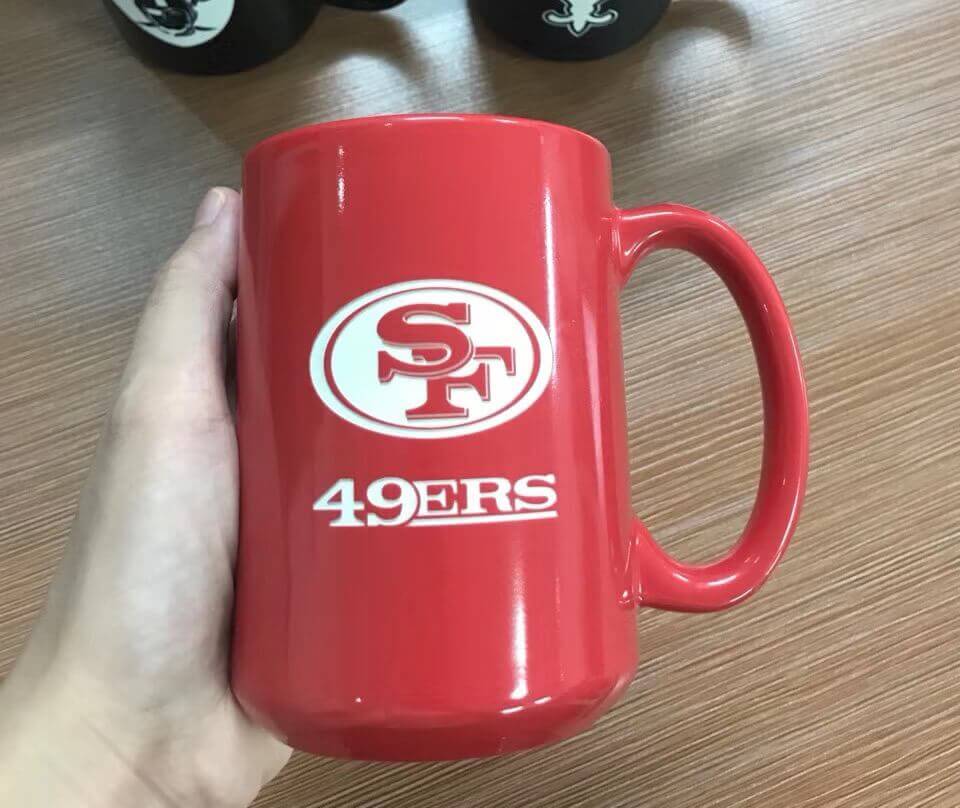

The laser marking machine can process a variety of metal and non-metal materials. Especially for high hardness, high melting point, brittle materials, marking is more advantageous.

1:It belongs to non-contact processing, does not damage the product, has no tool wear, and has good marking quality.

2:The laser beam is thin, the processing material consumption is small, and the processing heat affected zone is small.

3:High processing efficiency, computer control, easy to realize automation.

Why CDOCAST Laser Marking Machine

2 Years Warranty Time

2 Years Warranty Time

CDOCAST Provide 2 Warranty time , and during the warranty time we will be responsible for the all aftersales service & spare parts for free



CDOCAST Provide more value & turnkey Solution to Metal Melting & Casting According to Each Customer

 Quality Gurantee

Quality Gurantee

We owe it to each of our customers, CDOCAST adopt world famous brand components to improve our machine working performance.
