Small Vacuum induction melting furnace

1-10KG SMALL Vacuum induction melting furnace for all metals melting. INQUIRY NOW!

Vacuum induction melting furnace
Vacuum induction melting furnace
Vacuum induction melting furnace

1Finished Products1

1Product Details1

[what is  Small Vacuum induction melting furnace ]

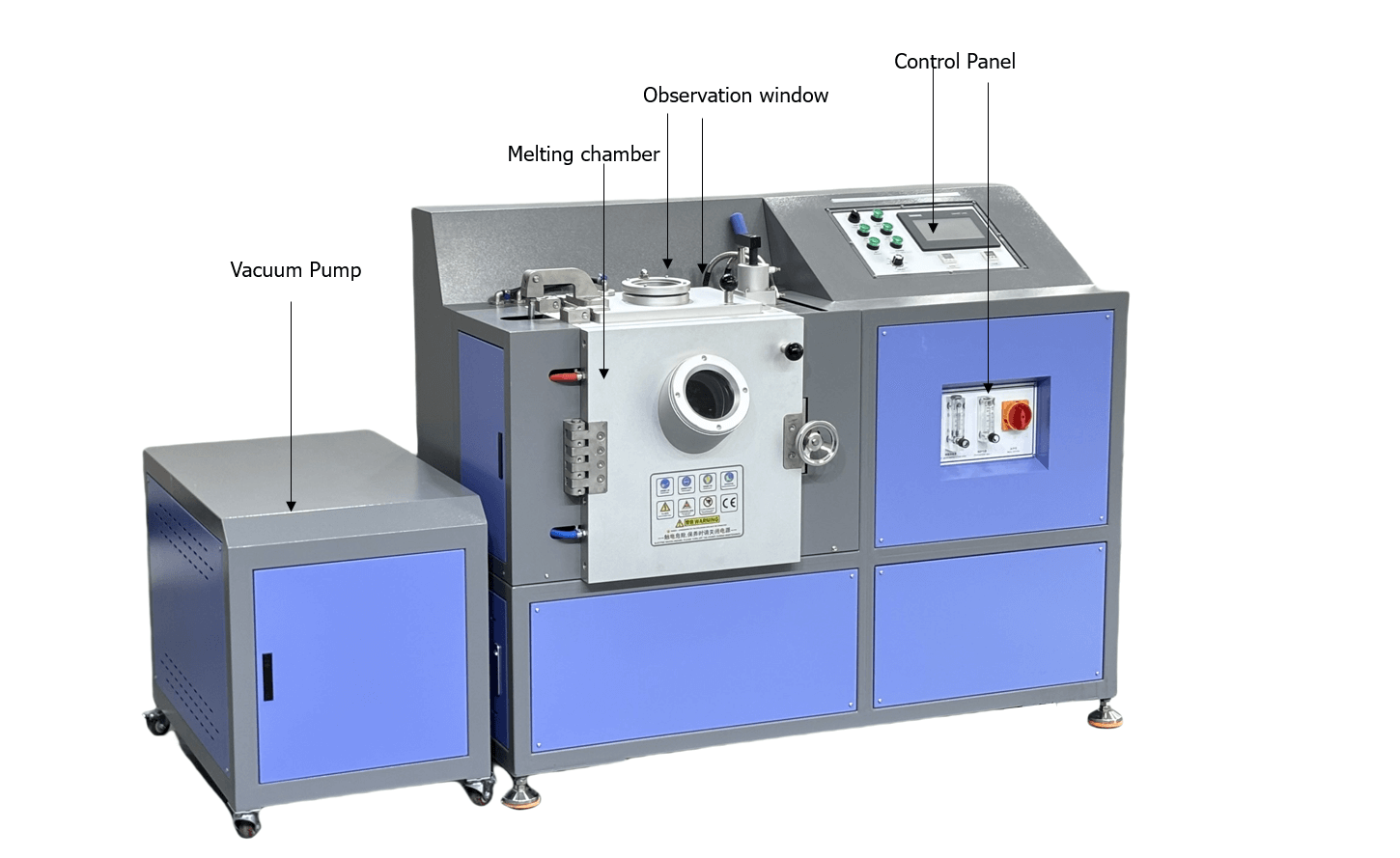

CDOCAST Small vacuum Induction melting furnace is specially designed for melting small volume non-ferrous and ferrous metals under vacuum condition, the complete melting furnace mainly consists of furnace, vacuum pump, pouring mechanism,  different levels of vacuum pump will be choosen according to different vacuum degree requirement.

The maximum temperature of this small vacuum furnace can reach 2200 degrees. It can be used to smelt precious metals (gold, silver, platinum, palladium) and other high-temperature alloys, such as nickel-based alloys.

This vacuum induction melting furnace adopted IGBT induction heating technology and comes with a rapid melting speed. For example,The melting speed of 10kg of molten metal can be completed in 1o  minutes, due to this high  efficiency feature which makes this small vacuum melter popular in the market. Moreover, the entire pouring process is carried out in a vacuum condition to ensure that the metal is protected to the greatest extent from oxidation and the quality of the castings.

Detail

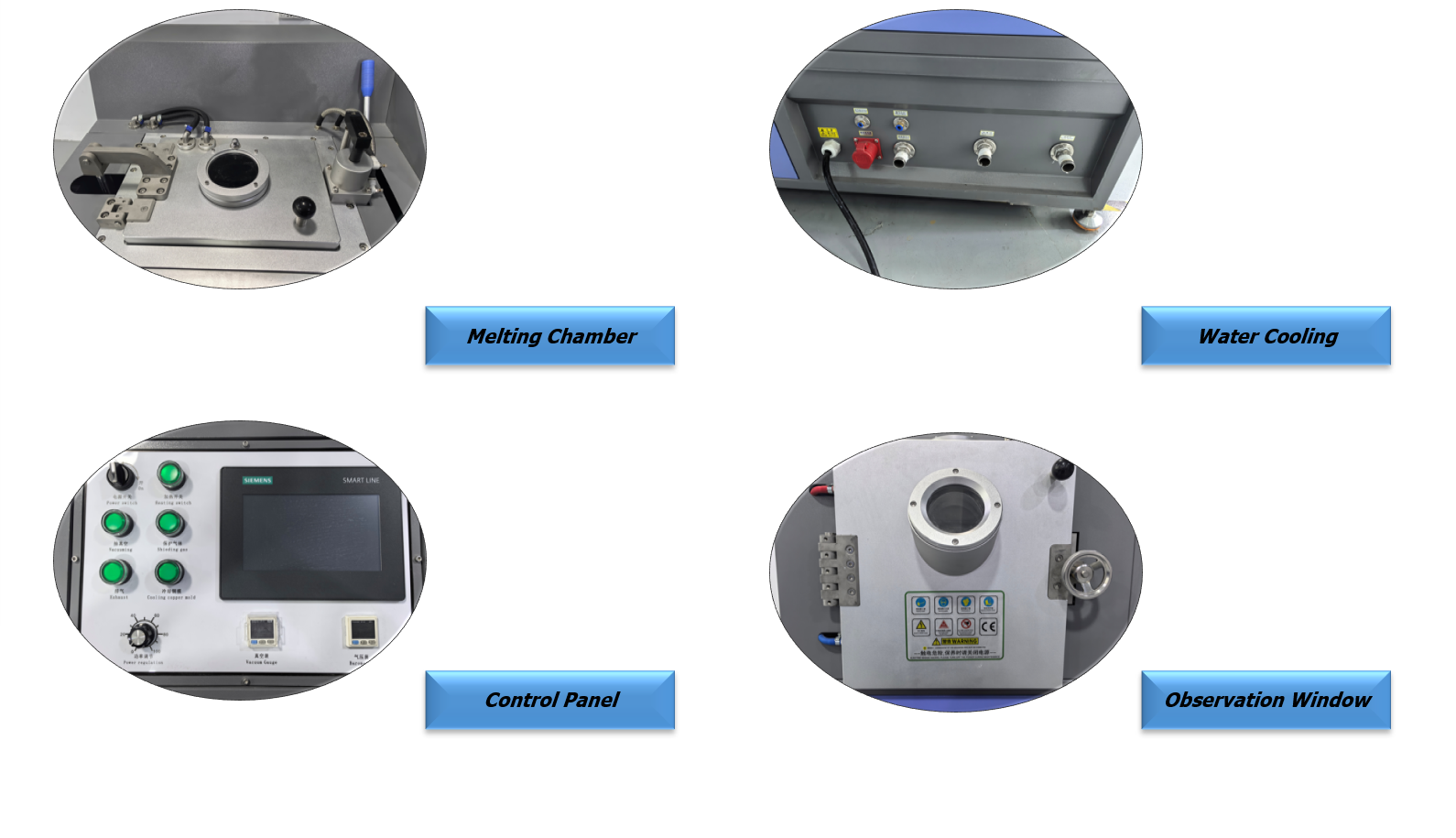

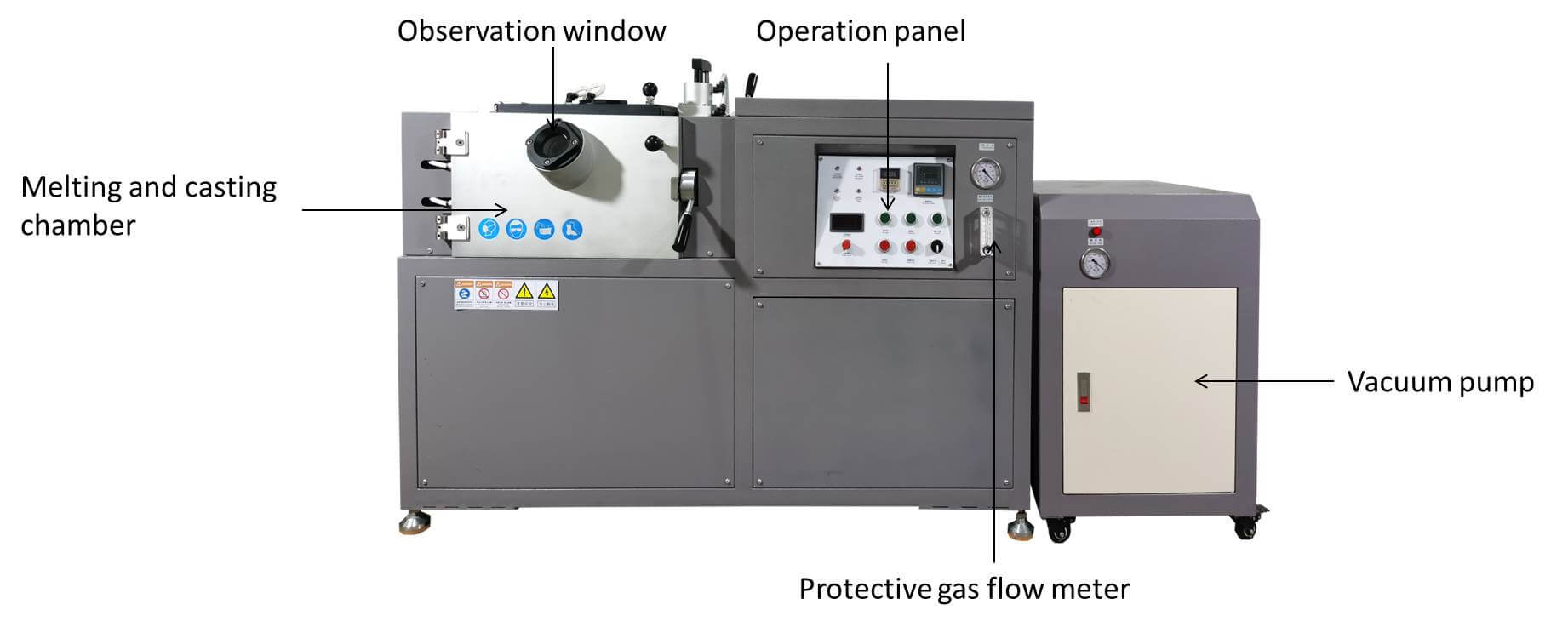

small vacuum melting furnace small vacuum melting furnace panelsmall tilting vacuum melting furnace

Parameter

Model number CDO-VTF15
Power source 3 phase 380V, 50/60Hz
Power 45-160 kw
Applicable metal Gold, Silver, Platinum, Palladium, and their alloys
Melting time 7-10 minutes
Max capacity Palladium: 2 kg Gold: 3 kg Silver: 1.6 kg
Max temperature 2600℃
Water cooling requirement ≥0.3Mpa, flow rate≥20L/min, ≤45℃
Dimension 690*1200*1100mm
Weight 220 kg
Heating technology Induction heating

Click the link to get the crucible size

Feature

[ Small Vacuum induction melting furnace Feature]

1: Integrated design, smelting power supply and furnace body are designed  integrated to one operation cabinet ,thus the whole equipment is small in size and do not occupying space

2:·Optional program heating and temperature control which can set the heating or cooling curve according to your process requirements, and the vacuum melting furnace  will automatically heat or cool according to this process

3:Cdocast small vacuum melting furnace comes With pouring device, you can pour the melted sample into the ingot mold which is prepared in advance, and pour out the sample shape you want

4:· This vacuum induction melting furnace can be smelted in a variety of atmospheres: smelting in air, protective atmosphere and high vacuum. Adopt one device to achieve multiple functions which can greatest saves your cost.

5.· Optional secondary feeding system: it can add other elements in the melting process, which is convenient for you to prepare diversified samples

6:The furnace body can be designed with stainless steel structure, and with water cooling, to ensure that the temperature of the shell is lower than 35 ℃, to protect your personal safety…

Vacuum induction melting furnace

Melting and casting process takes place in a vacuum, almost no oxidation and no loss of your precious metals

Vacuum induction melting furnace

Vacuum melting machine is equipped with two observation so that both melting and casting can be clearly seen

Vacuum induction melting furnace

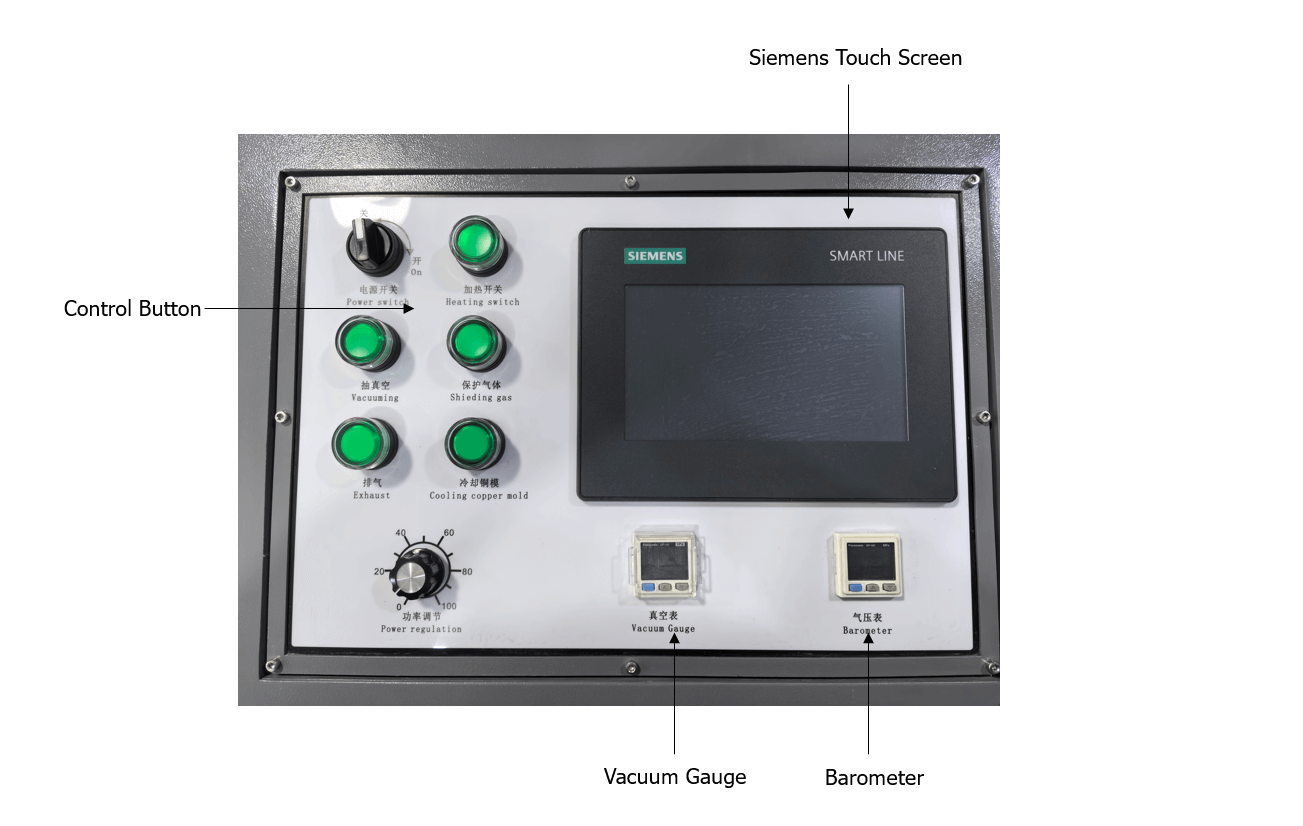

Operation panel can be customized to Siemens touchscreen panel,which can make the whole operation more advanced and easier

Why CDOCAST Small Vacuum induction melting furnace

2 Years Warranty Time

2 Years Warranty Time

CDOCAST Provide 2 Warranty time , and during the warranty time we will be responsible for the all aftersales service & spare parts for free

Innovation

Innovation

CDOCAST Provide more value & turnkey Solution to Metal Melting & Casting According to Each Customer

 Quality Gurantee

Quality Gurantee

We owe it to each of our customers, CDOCAST adopt world famous brand components to improve our machine working performance.

Contact Us

    Expand Your Knowledge With Small Vacuum induction melting furnace

    Make High Quality Gold Bar & Bullion

    Make High Quality Gold Bar & Bullion

    Investing in gold bullion has become the best choice for many investors.let’s take a look at the specific process of making high-quality mirror-finished gold bars or silver bars

    Graphite Crucible & Mould For Mini Gold Melting Furnace

    Graphite Crucible & Mould For Mini Gold Melting Furnace

    Graphite Crucible & Mould For Mini Gold Melting Furnace,Click here to get more information about how to choose the most suitable graphite crucible & mould

      1-10kg Integrated Gold Melting Machine

    1-10kg Integrated Gold Melting Machine

    CDOCAST Gold melting furnace is absolutely inventive design furnaces which is designed with the aim of offering effective melting action on precious metals……

    Vacuum Gold Bar Casting Mahcine

    Vacuum Gold Bar Casting Mahcine

    Gold Vacuum casting machine is designed for those ingot casting of gold, silve or other precious metal on basis of the customized mould…….

    What’s in your mind? Let’s talk.


      Rating Us

      • Product Name: Small Vacuum induction melting furnace
      • Description: CDOCAST small vacuum induction melting furnace is a high temperature heating equipment used for smelting and melting nickel, cobalt, nickel-iron and other metals all these are done in a protective atmosphere. Electrical eddy currents are used to make the melting process possible.
