handheld xrf analyzer

Find the most popular handheld xrf analyzer in the market

1Products Show1

1Product Details1

Background of handheld XRF analyzers

XRF (X-ray fluorescence) is an innovative, non-destructive technology for material analysis. It`s unique and almost universal,
An X-ray gun sees sample contents by using an X-ray source to measure the secondary ways (fluorescent) the sample emits. Such an analysis is clear and fast.

Portable XRF Spectrometers can be used in any field that requires analysis of elements or compounds from Na to U. The main business industries include building materials (cement, glass, ceramics), metallurgy (steel, non-ferrous metals), petroleum (trace elements such as S, Pb, etc.), chemical industry, environmental protection, food safety, geological mining, commodity inspection, quality inspection, and human body trace element inspection, etc.

handheld XRF metal tester Working principle

The sample is bombarded with X-rays, and the sample is excited to produce X-ray fluorescence.

X-rays usually knock out the inner electrons of the K and L layers of the element atoms, and the generated holes are filled by the high-energy outer electrons. High-energy electrons replenished to low-energy orbits radiate the excess energy as X-ray fluorescence.

These radiated spectral lines contain the characteristics of various elements. Like a fingerprint, and independent of the chemical valence states of the atoms. The intensity of the radiation is proportional to the concentration of this element in the sample.

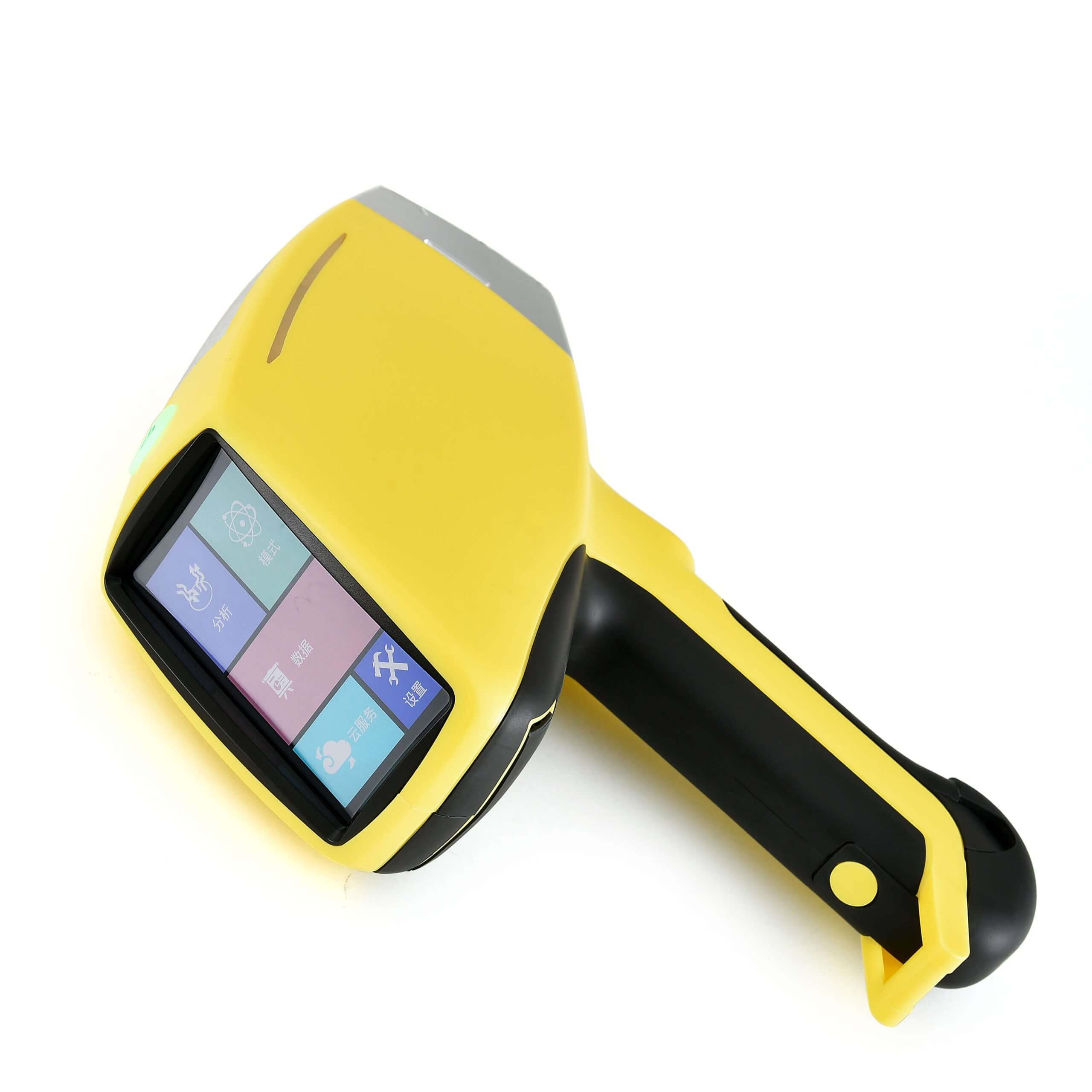

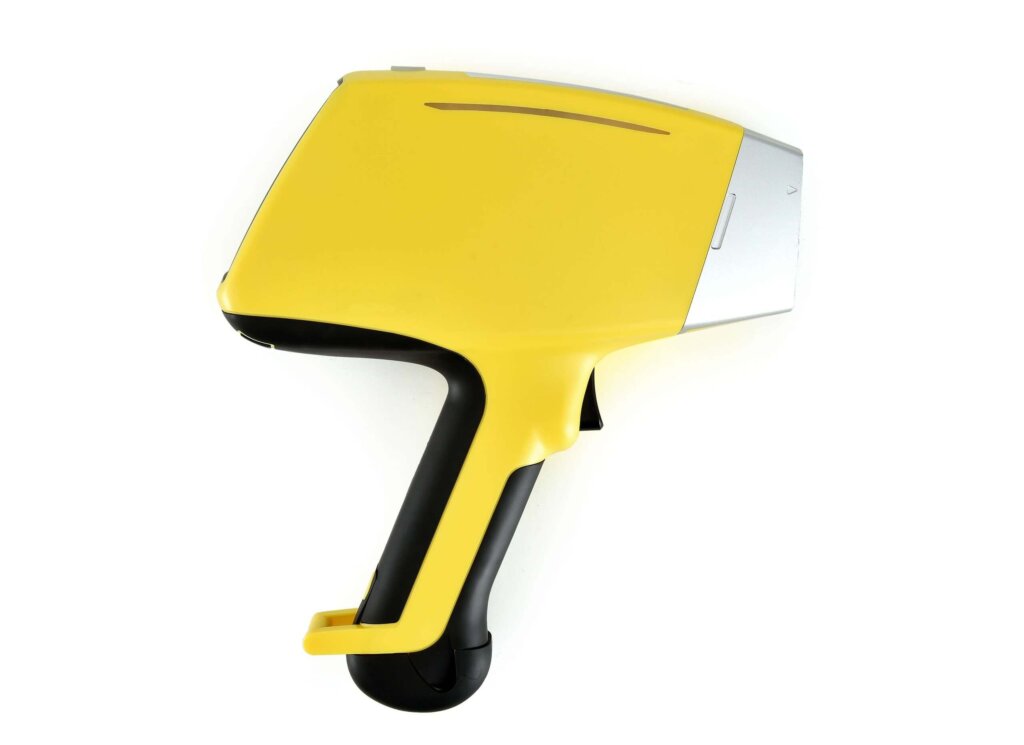

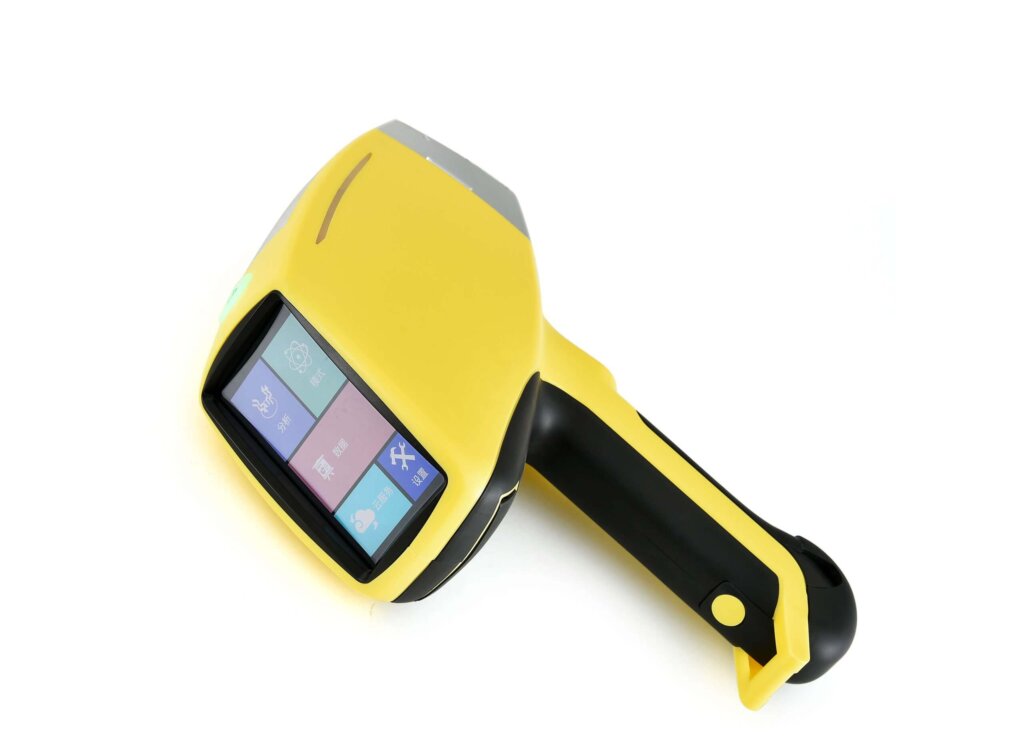

Machine Pictures

Parameter

Model	TrueX G5	TrueX G7	TrueX 800	TrueX 860	TrueX 900	TrueX 960
Weight	1.6Kg（With battery）
Size	254 x 79 x 280 mm（L x W x H）
Excitation source	Up to 50KV/200μA， tube pressure and tube flow can be adjusted freely, Target Ag (standard), Au(optional), W(optional), Rh(optional).
Monitor	4.3-inch industrial-grade resistive touch screen, multiple language operating system
Accuracy	Analysis accuracy can reach 0.05% (content is greater than 96%)
Detector	Si-Pin detector	SDD detector	Si-Pin detector	SDD detector	Si-Pin detector	SDD detector
Application	Precious metal	Precious metal	Alloy	Alloy	Mining	Mining

Model	Measuring Element
TrueX G5/G7	Fe,Co,Ni,Cu,Zn,Se,Ru,Rh,Pd,Ag,Cd,In,Ir,Pt,Au,Pb
TrueX 800	Ti，V，Cr，Mn，Fe，Co，Ni，Cu，Zn，Se，Zr，Nb，Mo，Rh ，Pd，Ag，Cd，Sn，Sb，Hf，Ta，W，Re，Pb，Bi(25 elements)
TrueX 860	Mg，Al，Si，P，S，Ti，V，Cr，Mn，Fe，Co，Ni，Cu，Zn，Se，Zr，Nb，Mo，Rh ，Pd，Ag，Cd，Sn，Sb，Hf，Ta，W，Re，Pb，Bi(30 elements)
TrueX 900	K，Ca，Ti，V，Cr，Mn，Fe，Co，Ni，Cu，Zn，As，Se，Rb，Sr，Y，Zr，Nb，Mo，Ag，Cd，Sn，Sb，Hf，Ta，W，Au，Hg, Pb，Bi(30 elements)
TrueX 960	Mg，Al，Si，P，S，Cl，K，Ca，Ti，V，Cr，Mn，Fe，Co，Ni，Cu，Zn，As，Se，Rb，Sr，Y，Zr，Nb，Mo，Ag，Cd，Sn，Sb，Hf，Ta，W，Au，Hg, Pb，Bi(36 elements)

Feature

Small size and light weight, easy to carry.
One-button operation. The element symbols are displayed in Chinese and English, with high precision and fast speed, close to the laboratory-level analysis level.
Nondestructive testing. Built-in DoubleBeam™ technology. High security level.
Professional management analysis software, which can provide customized analysis reports. Automatic calibration and diagnosis of instrument failures; software upgrades can be achieved through the Internet.
USB, WIFI, wireless bluetooth and other methods for data transmission, files can be in EXCEL, PDF and other formats, users can create custom test reports. Cloud data services are available.
Built-in all-round environment sensing system. Real-time perception of environmental changes, automatic adjustment of parameters.
Intelligent battery with MSBUS bus, real-time monitoring battery, backup battery can directly check the remaining capacity of the battery.

Model

TrueX GOLD/ TrueX GOLD +Handel XRF Analyzer：

The TrueX GOLD/GOLD+ precious metal Handel XRF analyzer can non-destructively analyze the elemental content of gold, silver, and platinum group metals, as well as non-precious alloyed metals and gold-plated samples. Compared with the traditional tin gold assay, nickel matte gold assay and other analytical methods, the TrueX GOLD/GOLD+ precious portable analyzer has stronger detection capability, shorter detection time, and is more efficient and portable. It is widely used in jewelry manufacturing and recycling, industrial catalysts, electronic devices and other fields.

TrueX 700/TrueX 760 Soil Handel XRF Analyzer

The TrueX 700/760 soil analyzer are lightweight and can be used in most environments and weather conditions. It can easily detect RCRA metals, major contaminants, and quickly get reliable analysis data at the touch of a button, helping you to timely Develop strategies whose detection costs are much lower than laboratory analysis.

TrueX 800/TrueX 860 Metal Alloy Handel XRF Analyzer

The TrueX 800/860 alloy analyzes are important means of material reliability identification (PMI) in the production process of boilers, vessels, pipes, manufacturing and other high temperature and high pressure industries. Identify metal materials in the production process of key engineering industries in the military and civilian countries such as iron and steel smelting, non-ferrous metals, aerospace, weapons manufacturing, submarines and ships. In the process of installation and construction of petrochemical refining, fine chemical, pharmaceutical, power station, aerospace and other projects, metal materials are identified to ensure equipment acceptance, material acceptance, and meet the specified requirements of the project. It is a powerful tool for metal identification in the scrap metal recycling industry.

TrueX 900/TrueX 960 mining Handel XRF Analyzer

The TrueX 900/960 mining Handel XRF Analyzer provides fast, accurate elemental analysis results with little or no sample preparation at all stages of mining activity, from grassroots exploration and development to ore grade control, and even environmental investigations , Compared with traditional laboratory methods, the sample density is increased, saving time and effort.
