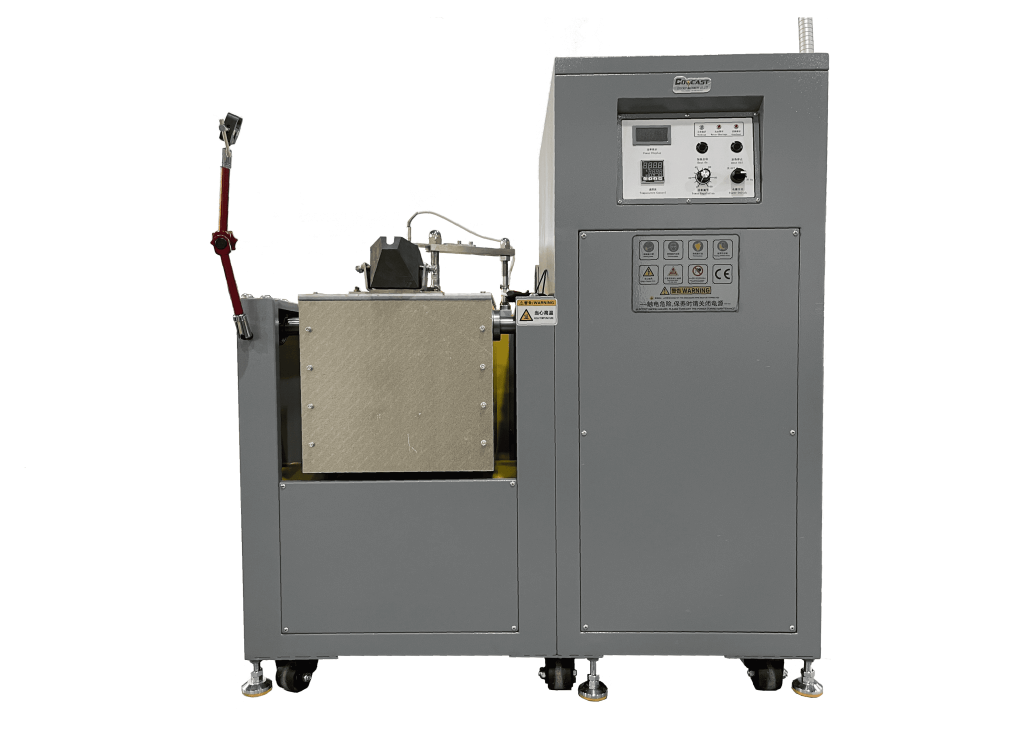

Manual Tilting Metal Melting Furnace

Small metal melting furnace for sale.Manual tilting & Motor Tilting is available.

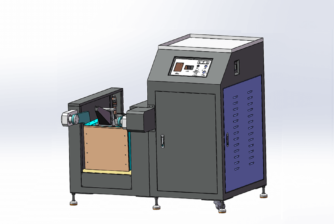

Motor Tilting Metal Melting Furnace2
Motor Tilting Metal Melting Furnace videov
Motor Tilting Metal Melting Furnace

1Finished Products1

1Product Details1

[what is metal melting furnace]

CDOCAST manual tilting metal melting furnace is a smelting equipment specially designed for smelting 10-200kg of non-ferrous metals & non-ferrous metals. It adopts advanced IGBT induction heating technology. The melting speed is about 20-50 minutes per batch. The first melt the when the furnace is cold. The melting time takes usually 40 minutes, and the melting time of the second batch can be  reduced to 30 minutes when the furnace is hot.

This small manual tilting metal melting furnace is available to  work continuously for 24 hours. The furnace body adopts a  manual tilting structure, which is simple and convenient , Economical.

A motor can be also added to make the furnace body into motor automaticlly titling furnace body, especially for the bigger capacity melting furnace which is difficult for work to tilt manually.

Silicon carbide graphite and zirconia crucibles are adopted in the metal melting furnace, usually for melting gold, silver, copper, and aluminum. We will use silicon carbide graphite crucibles, while for melting high melting point metals such as stainless steel, iron and platinum, we use zirconia crucibles which can Withstand the high temperature.

Detail

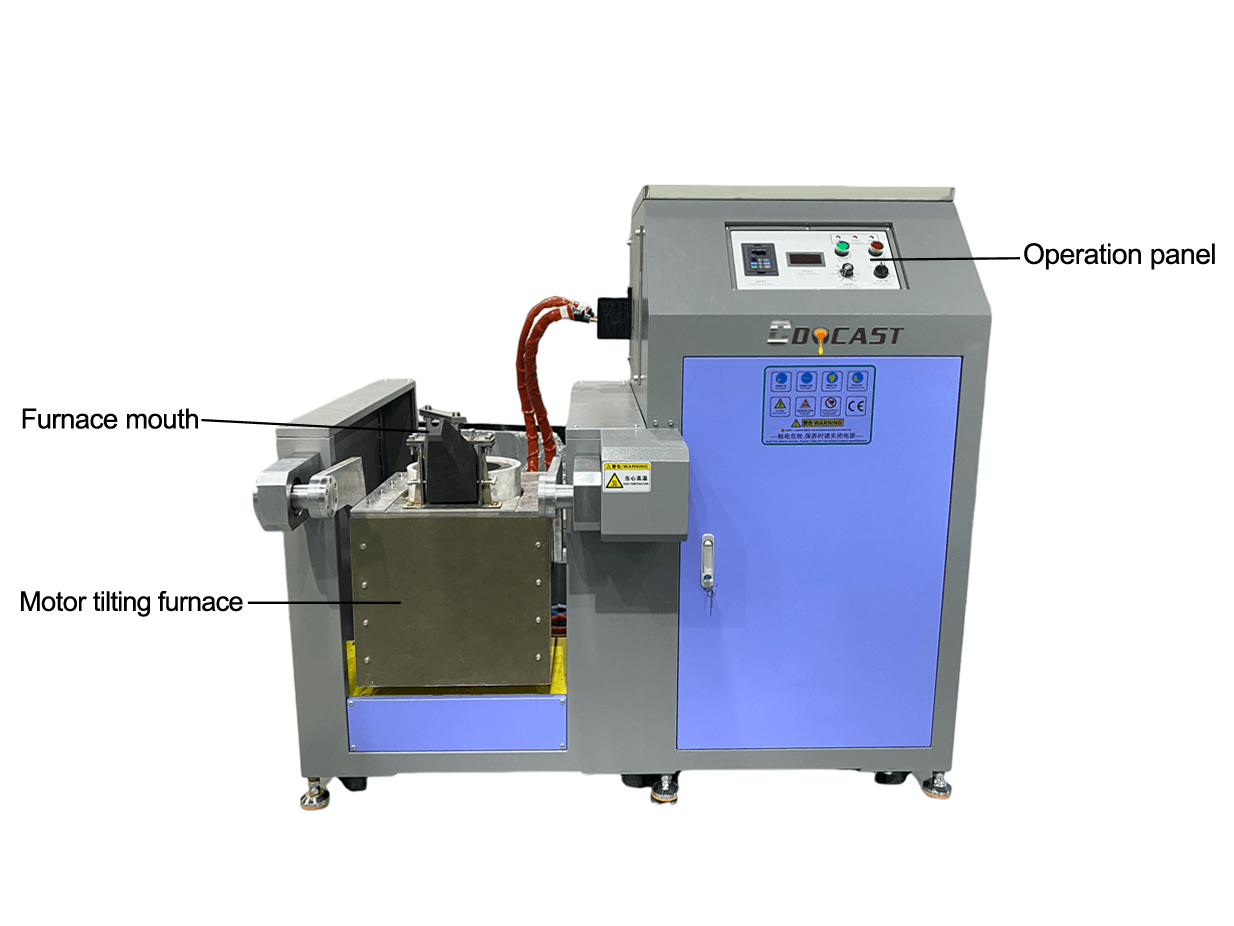

manual tilting metal melting detail

Parameter

Power Supply Parameter of Manual Tilting Metal Melting Furnace

Model CDO-MTF15 CDO-MTF25 CDO-MTF35 CDO-MTF45 CDO-MTF70 CDO-MTF90 CDO-MTF110 CDO-MTF160
MAX input power 15KW 25KW 35KW 45KW 70KW 90KW 110KW 160KW
MAX input current 23A 36A 51A 68A 105A 135A 168A 240A
Input voltage Three-phase 340V ~420V 50/60Hz
Oscillation frequency 1K~20KHz
Requirement of cooling water Hydraulic pressure ≥0.2Mpa ≥0.3Mpa
Flow rate ≥6L/Min ≥20L/Min
Temperature of water ≤45℃
Generator box Weight 28kg 29kg 52kg 52kg 57kg 91kg 99kg 134kg
Volume 51×28×49cm 65×35×58 78×40×88 78×50×88
Transformer box Weight 35kg 35kg 35kg 38kg 52kg 68kg 95kg 95kg
Volume 62×30×53cm 64×48×58 64×65×61

Melting Capacity Parameter of Manual Tilting Metal Melting Furnace

Model Fe, ss Cu, Au, Ag Al, Al-alloy Model Fe, ss Cu, Au, Ag Al, Al-alloy
CDO-MTF15 3kg 10kg 3kg CDO-MTF70 25kg 80kg 25kg
CDO-MTF25 5kg 20kg 5kg CDO-MTF90 40kg 120kg 40kg
CDO-MTF35 10kg 30kg 10kg CDO-MTF110 50kg 150kg 50kg
CDO-MTF45 18kg 50kg 18kg CDO-MTF160 100kg 250kg 100kg
Remark: Above melting capacity sheet for general reference; Melting duration: When the crucible is hot,20~30min./workload; When the crucible is cold(first melt),40~50min./ workload.

Click the link to get the crucible size

Feature

1:Due to its simple structure, the biggest advantage of this  small metal melting furnace is economical which is affordable for starters.

2:Medium frequency metal melting furnace can be used for the melting of gold, silver, steel, stainless steel, brass, aluminium, lead, zinc and almost all metals.

3:The IGBT Models design makes after-sales very convenient. Customers only need to equip some commonly used power boards to perform simple maintenance, without the require for engineers to go  onsite for maintenance, which greatly reduces the customer’s cost of use

4:The whole small meltal melting furnace is only about one to two square meters, occupying a small space, and is the best choice for some starters

5:Compared with the traditional smelting method, the intermediate frequency smelting furnace is more environmentally friendly. There is no need to worry about the local government environmental protection department to knock your door.

6:CDOCAST small metal melting  furnace can work continuously for 24 hours or stop the furnace at any time without any influence on the furnace.

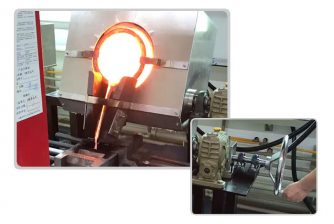

manual Motor Tilting Metal Melting Furnace

Furnace body can be Customizd to manual tilting type and motor tilting type

manual Motor Tilting Metal Melting

The furnace body adopts a  manual tilting structure, which is simple and convenient , Economical.

Motor Tilting Metal Melting Furnace videov

The control panel is customizable to Siemens control system

Why CDOCAST Manual Tilting Metal Melting Furnace

2 Years Warranty Time

2 Years Warranty Time

CDOCAST Provide 2 Warranty time , and during the warranty time we will be responsible for the all aftersales service & spare parts for free

Innovation

Innovation

CDOCAST Provide more value & turnkey Solution to Metal Melting & Casting According to Each Customer

 Quality Gurantee

Quality Gurantee

We owe it to each of our customers, CDOCAST adopt world famous brand components to improve our machine working performance.
