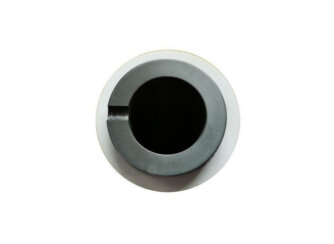

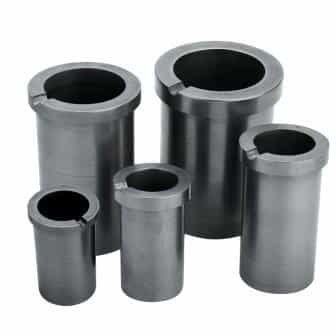

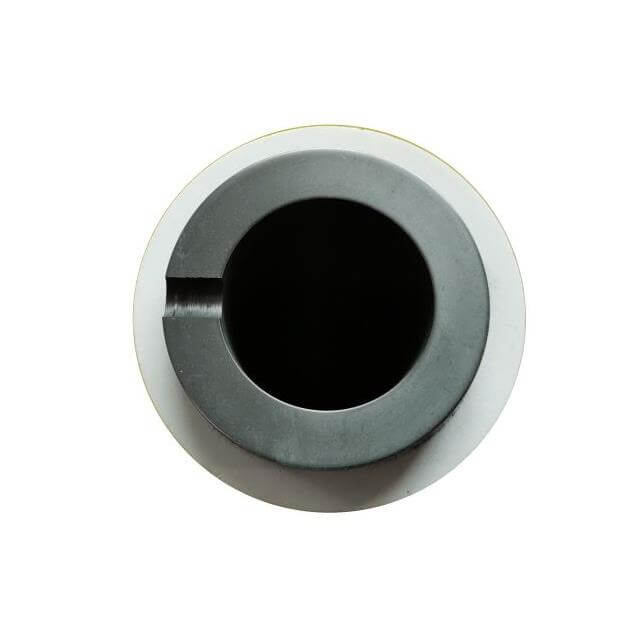

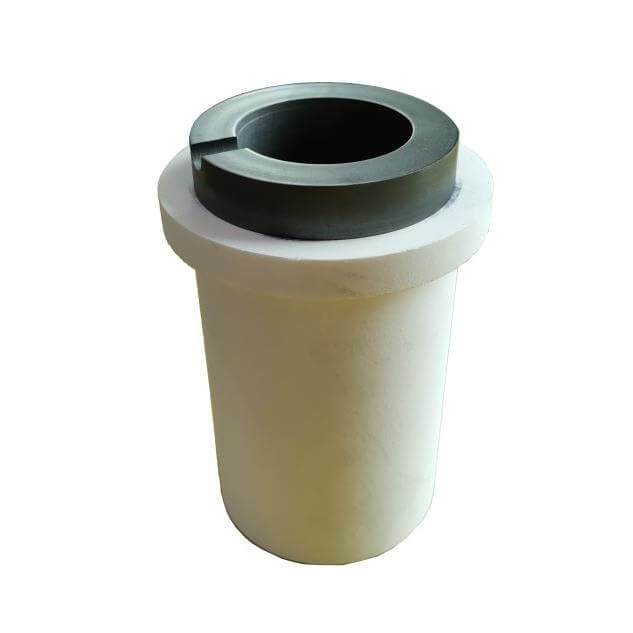

Graphite Crucible

 Graphite Crucible Parameter：

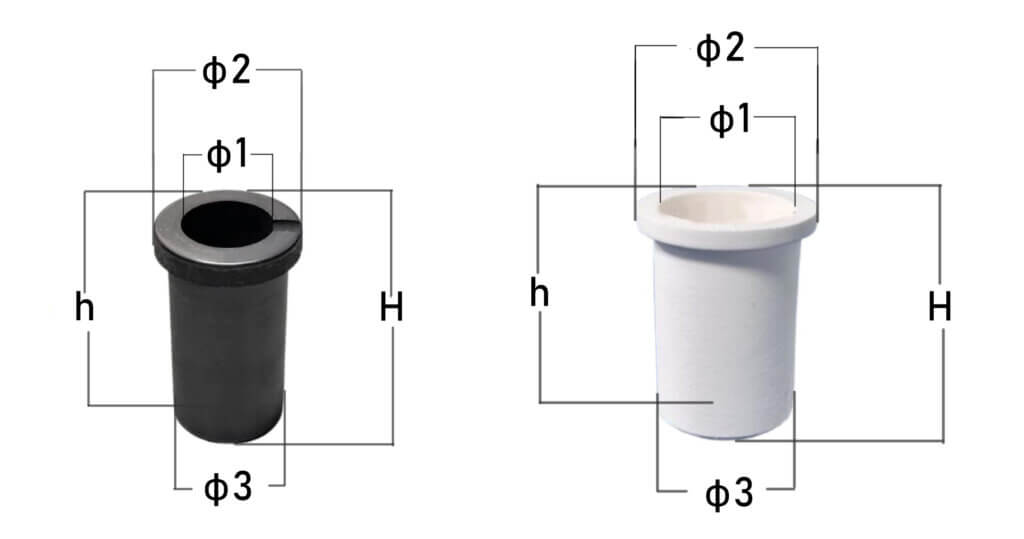

Click the link to get the mould size

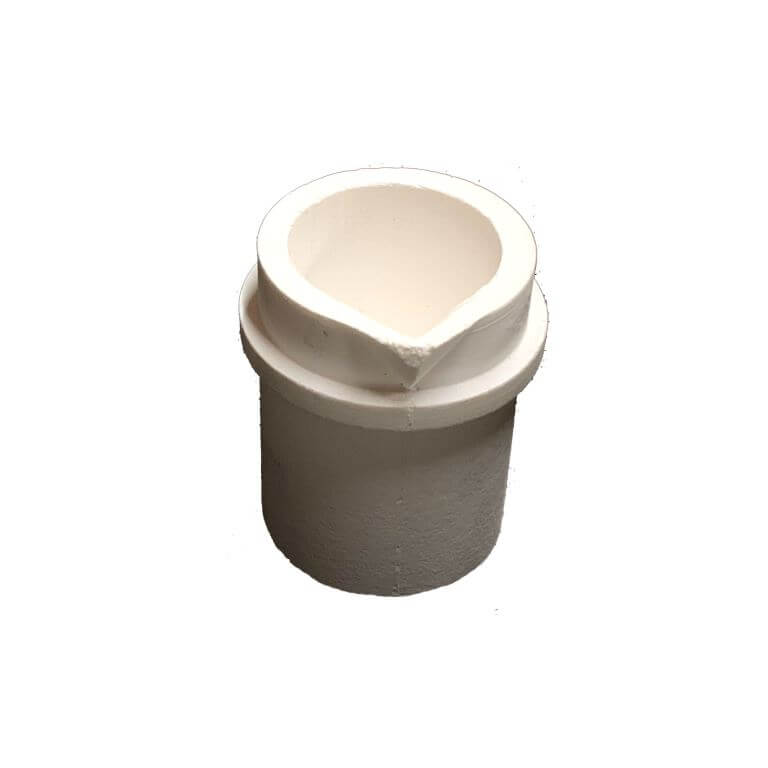

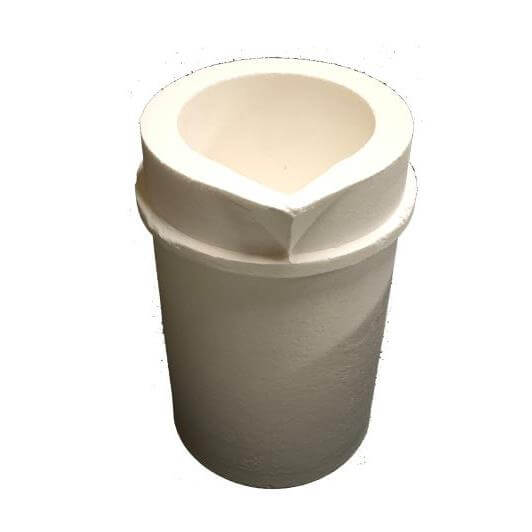

Quartz Crucible Parameter：

Click the link to get the mould size

Silicon Carbide Parameter：

Click the link to get the mould size

What are the key factors affecting the life of graphite crucible?

1. Oxidation and high temperature environment
– Graphite will oxidize rapidly at high temperature (>500°C) in an oxidizing atmosphere (such as air), generating CO₂, which will cause the crucible wall to become thinner or even perforated.
– In an inert atmosphere (such as nitrogen, argon) or vacuum environment, graphite crucibles can withstand high temperatures above 2000°C, and their life span is significantly extended.

2. Melting material characteristics
– Metal type: Longer life when melting low-melting point metals such as aluminum and copper; corrosion and penetration are aggravated when melting high-melting point metals such as iron and nickel or alloys containing active elements (such as titanium and zirconium).
– Slag and molten salt: Alkaline or acidic slag will corrode graphite and shorten its life span.

3. Thermal shock and mechanical damage
– Rapid temperature rise and fall (such as heating to high temperature without preheating) can easily cause cracks.
– Surface damage can be caused by charging impact, tool scratches or improper handling.

4. Material quality and manufacturing process
– High-purity isostatic graphite: high density, low porosity, stronger resistance to penetration and oxidation, and long life.
– Ordinary graphite or graphite containing binder: easy to oxidize and crack, and short life.

What‘s the typical life span of a graphite crucible?

The life of graphite crucible varies significantly depending on the conditions of use:
– Inert atmosphere/vacuum environment: can be used continuously for hundreds to thousands of hours (such as semiconductor single crystal growth furnace), and the life can reach several months.
– Oxidizing environment (used in air):
– Melting aluminum (700~900°C): about 20~50 melting times (several hours each time).
– Melting copper (1100~1200°C): 10~30 times.
– Melting steel (>1500°C): only 1~5 times, need to be replaced frequently.
– Small batch use in the laboratory (strictly control temperature and atmosphere): The life can reach more than 100 times.

How to prolong the life of graphite crucible?

1. Control the using environment
– In an oxidizing atmosphere, the use temperature should be kept below 500°C as much as possible, or an anti-oxidation coating (such as silicon carbide coating, borosilicate glass coating) should be added.
– It is preferred to use in an inert atmosphere or vacuum furnace to avoid direct contact with oxygen.

2. Standardize the operation process
– Preheating: slowly increase the temperature at a rate of 100~200°C per hour to avoid thermal shock.
– Cooling: naturally cool to room temperature after smelting, and forced air cooling or water cooling is prohibited.
– Loading: Avoid metal blocks from directly hitting the inner wall. Soft gaskets or pre-laying a layer of protective materials (such as graphite paper) can be used.

3. Maintenance and repair
– Remove residual metal and slag after each use to prevent penetration corrosion.
– Surface micro-cracks can be repaired with graphite glue or high-temperature ceramic glue, but severe damage requires replacement.

4. Selection optimization
– Choose high-density isostatic graphite crucibles for highly corrosive scenes.
– When melting highly reactive metals, use coated graphite crucibles (such as silicon carbide coating, boron nitride coating).

1.What are the key factors affecting the life of silicon carbide crucible?

1.Operating temperature

– Long-term operation at temperatures close to the limit temperature of silicon carbide (about 1600°C~2200°C) will accelerate material oxidation and structural degradation.

– Frequent temperature fluctuations (such as repeated heating-cooling) will lead to thermal stress accumulation and cracking.

2.Chemical corrosion

– Chemical erosion by molten metals (such as aluminum, copper, molten iron) or slag will gradually damage the crucible surface.

– Acidic or alkaline environments (such as molten salts, certain alloys) may accelerate corrosion.

3.Mechanical shock

– Collisions, knocks or improper loading during operation may cause physical damage (such as cracks, edge collapse).

4.Thermal shock tolerance

– Rapid temperature rise and fall (such as direct high-temperature heating without preheating) will cause cracking due to uneven thermal expansion.

5.Material quality

– High-purity silicon carbide (such as reaction sintering or pressureless sintering process) has a longer life, while low-purity or impure products are prone to oxidation failure.

2.What’s the typical life span of silicon carbide crucible?

The life of silicon carbide crucibles varies greatly depending on the application scenario:

– Laboratory scenario (low frequency, small batch melting): can maintain hundreds to thousands of cycles, and the life may be several years.

– Industrial scenario (high temperature, high frequency melting of metal): usually dozens to hundreds of melting times, for example:

– Melting aluminum: about 100~300 times (aluminum is less corrosive).

– Melting copper or iron alloys: may be shortened to 50~150 times (due to higher temperature and more severe oxidation).

– Extreme conditions (such as melting highly corrosive alloys or ultra-high temperatures): The life may be only a few hours to dozens of times.

3. How to prolong the life of silicon carbide crucible?

1.Standardize the operation process

– Preheating: When using for the first time or not in use for a long time, it is necessary to slowly heat up to the working temperature (such as 100°C per hour).

– Cooling: Avoid forced air cooling or water cooling, and move it after cooling naturally to room temperature.

– Loading: Avoid metal blocks directly hitting the inner wall of the crucible, and a soft cushion can be used.

2.Choose the appropriate model

– Select the corrosion resistance grade according to the characteristics of the smelting material (such as high-purity SiC or crucibles with anti-oxidation coating).

– Avoid overload (such as volume exceeding the designed capacity).

3.Maintenance and cleaning

– Remove residual metal or slag after each use to prevent continuous chemical erosion.

– Regularly treat surface deposits with weak acid (such as dilute hydrochloric acid) or special cleaning agents.

4.Regular inspection

– Observe whether there are cracks, peeling or obvious oxide layers on the inner wall before use.

– Minor cracks can be repaired with high-temperature ceramic glue, but serious damage requires immediate replacement.

*The life span of silicon carbide crucibles is relatively long, and proper operation and maintenance can significantly extend their service life. In industrial scenarios, it is recommended to record the working conditions (temperature, time, materials) of each smelting process and optimize the usage plan through data analysis. If the crucible is replaced frequently, it is necessary to evaluate whether the excessive loss is caused by improper process or wrong selection. If necessary, consult CDOCAST team for customized solutions.

1.Graphite crucibles has good thermal conductivity and high temperature resistance;

2.Using in high temperature process, thermal expansion coefficient is small ,it has resistance strain performance to hot and cold, Strong corrosion resistance to the acid, alkali solution;

3.Graphite composition of graphite crucibles are all using natural graphite;

4.Graphite crucibles should not immediately be placed it in the cold metal table after heating,in order to avoid to break for the rapid cooling.

5.High mechanical strength, thermal shock resistance is strong, long service life, etc.

6.The properties of terminal ash content less than 300PP, which keeps the metal pure after smelting.
