How to Make Gold and Silver Jewelry with Vacuum Pressure Lost Wax Casting
Vacuum pressure lost wax casting is one of the most common production routes for gold jewelry, silver jewelry, copper alloy jewelry and small precision castings. The quality of the final jewelry depends on wax pattern accuracy, investment mixing, burnout, melting temperature, vacuum level, pressure control and post-casting cleaning.
What is jewelry vacuum pressure casting?
Jewelry vacuum pressure casting combines vacuum extraction and controlled gas pressure to help molten metal fill the investment mold more completely. Compared with simple gravity casting, the vacuum removes air from the chamber and the pressure helps the melt flow into thin, detailed and complex jewelry patterns.

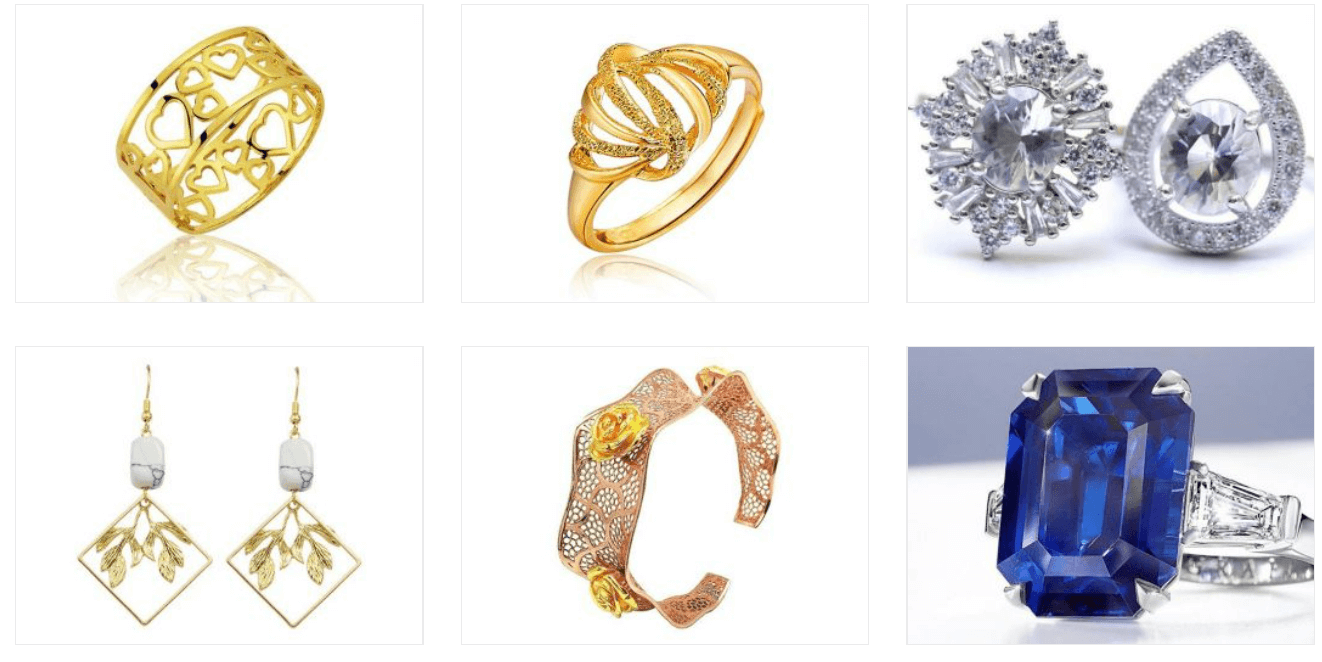

This process is especially useful for gold rings, silver pendants, hollow jewelry, small ornaments, customized wax patterns and 3D printed resin patterns. For jewelry manufacturers, the main goal is stable filling, fewer casting pores, smoother surface quality and repeatable batch production.
Why use a vacuum pressure lost wax jewelry casting machine?
The buyer should not only compare machine capacity. A good jewelry casting line must control air removal, metal filling, investment preparation and burnout quality together.
Complete lost wax jewelry casting process
The full gold silver jewelry casting process normally includes wax pattern making, investment mold preparation, burnout, vacuum pressure casting, cleaning and polishing. Each step affects the final surface, porosity and dimensional accuracy.
Make the silicone mold, wax pattern and wax tree
For repeated jewelry designs, the master model is placed into silicone rubber and vulcanized to make a silicone mold. Wax beads are then heated in a wax injection machine and injected into the silicone mold. After cooling, the wax patterns are removed and welded onto a wax sprue to form a wax tree for batch jewelry casting.
- Wax tree layout affects metal flow and final casting yield.
- The tape around the flask should normally be higher than the flask to prevent investment overflow.
- For complex custom jewelry, 3D printed wax or castable resin patterns can also be used.
Make the investment gypsum mold
Investment powder and water are mixed according to the supplier's recommended ratio. A vacuum investment mixer removes air bubbles during mixing, then the investment slurry is poured into the flask. A vibration vacuum machine helps the slurry fill the details around the wax tree and reduces burrs and pores after casting.
- Wrong investment ratio can cause cracks, rough surface or poor detail.
- Vacuum mixing and vibration are important for fine jewelry patterns.
- The investment mold should be dried and set before burnout.
Burnout and dewaxing
The flask is placed into a burnout furnace. The burnout curve removes wax or resin, dries the investment mold and brings the flask to a suitable casting temperature. For larger production batches, a burnout furnace with secondary combustion can reduce wax smell and improve workshop environment.
- Incomplete burnout may leave carbon residue and cause casting defects.
- Too fast heating can crack the investment mold.
- Burnout furnace size should match flask size and daily production volume.
Melting and vacuum pressure casting

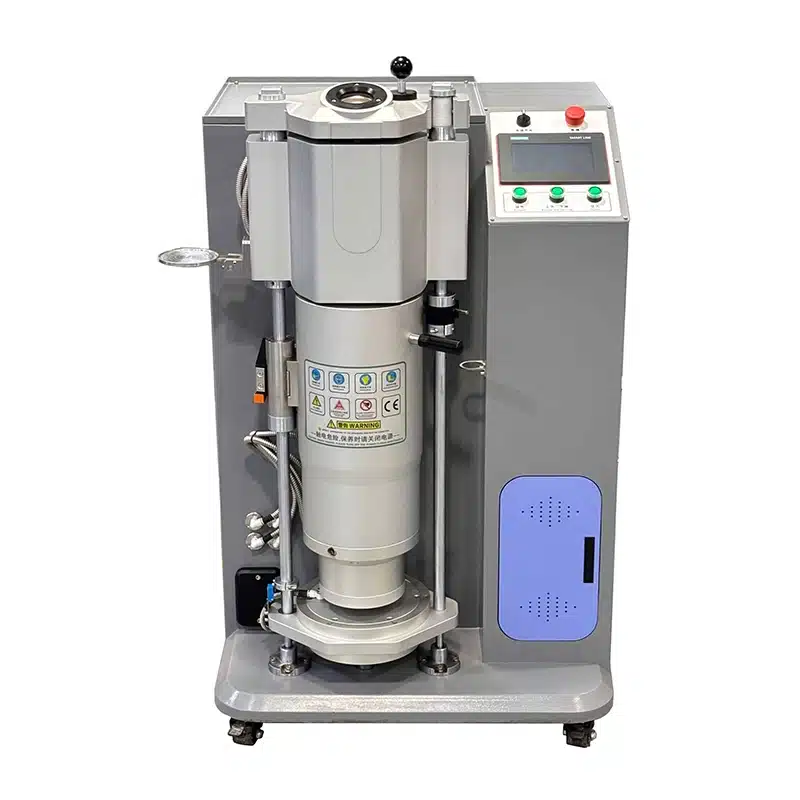

The heated flask is placed into the casting chamber and the metal is placed into the melting chamber. After setting the working parameters, the vacuum pressure casting machine melts the metal, evacuates the chamber, introduces protective gas when required and applies pressure to complete the casting cycle.
- Suitable for gold, silver, copper and many jewelry alloys.
- Siemens touch screen and PLC control help store casting parameters.
- Temperature, vacuum level, pressure and timing should be adjusted according to alloy and flask size.
Remove investment and clean the semi-finished casting

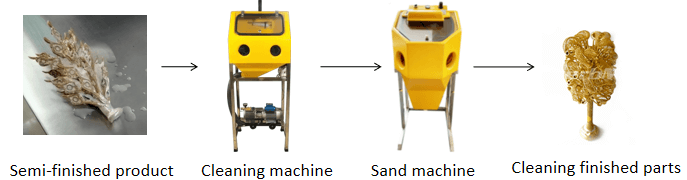

After casting and cooling, the investment mold is broken down and the semi-finished jewelry tree is removed. The casting surface usually has remaining plaster and oxide. A plaster cleaning machine, water spray cleaning and sandblasting can help remove investment residue and prepare the casting for polishing.
- Cleaning should be complete before final polishing.
- Sandblasting can remove tiny surface oxides.
- Careful cleaning reduces later polishing time.
Deburring and polishing
After cleaning, the casting can be cut from the sprue, deburred and polished. Jewelry workshops may use magnetic polishing, vibration polishing, sandblasting, polishing media or double-barrel eddy current polishing according to the jewelry shape and required finish.
- Magnetic polishing is useful for small burrs and fine details.
- Vibration polishing requires suitable liquid and polishing media.
- Double-barrel eddy current polishing can combine deburring and bright polishing.
Equipment needed for a gold silver jewelry casting workshop
A complete jewelry casting workshop is not only one casting machine. Buyers should confirm wax pattern equipment, investment preparation, burnout, casting, cleaning and polishing equipment before planning production.
| Process stage | Common equipment | Main purpose | Buyer note |
|---|---|---|---|
| Wax pattern making | Vulcanizer, wax injector, silicone mold, 3D printer | Produce accurate wax or resin patterns for lost wax casting. | 3D printing is better for complex custom jewelry and fast samples. |
| Investment mold | Vacuum investment mixer, vibration vacuum machine, flask | Remove bubbles and form a clean investment mold around the wax tree. | Investment quality strongly affects surface and porosity. |
| Burnout | Wax burnout oven or rotary burnout oven | Remove wax/resin and prepare the mold cavity. | For resin patterns, confirm burnout curve with resin supplier. |
| Melting and casting | Vacuum pressure jewelry casting machine | Melt metal and cast into the investment mold under vacuum and pressure. | Confirm chamber size, flask size, crucible capacity and alloy type. |
| Cleaning and finishing | Plaster cleaning machine, sandblasting machine, polishing equipment | Remove investment residue, oxide and burrs. | Finishing equipment should match jewelry style and production volume. |
How to choose a vacuum pressure jewelry casting machine
Before buying a vacuum pressure lost wax jewelry casting machine, confirm your production style instead of choosing only by price. Different workshops need different chamber size, flask size, crucible capacity and automation level.
- Target material: gold, silver, copper alloy, karat gold, brass or other jewelry alloys.
- Maximum flask size and jewelry tree height.
- Single batch metal weight and expected daily production volume.
- Whether you use wax injection, 3D printed wax or castable resin patterns.
- Required casting surface quality and acceptable porosity level.
- Whether the machine can store casting parameters for repeat orders.
Common casting defects and process checks
| Problem | Possible reason | Process check |
|---|---|---|
| Incomplete filling | Metal temperature too low, poor wax tree design, insufficient pressure or cold flask. | Check alloy temperature, sprue design, flask burnout temperature and pressure setting. |
| Visible pores | Air trapped in investment, poor vacuum, dirty material or unsuitable casting program. | Check vacuum mixer, investment ratio, vacuum pump performance and metal cleanliness. |
| Rough surface | Investment quality, burnout residue, overheat or incorrect flask temperature. | Check investment shelf life, burnout curve, resin residue and casting temperature. |
| Cracked investment mold | Incorrect water/powder ratio, fast heating or insufficient setting time. | Control investment mixing, drying time and burnout ramp rate. |
Related CDOCAST pages for jewelry casting production
FAQ about vacuum pressure lost wax jewelry casting
What materials can be cast by vacuum pressure jewelry casting?
It is commonly used for gold, silver, copper and jewelry alloys. The casting program should be adjusted according to alloy melting point, fluidity, flask size and jewelry structure.
Is vacuum pressure casting better than gravity casting for jewelry?
For detailed jewelry patterns, thin sections and higher surface requirements, vacuum pressure casting usually gives better filling and fewer pores than simple gravity casting.
Can 3D printed resin patterns be used for lost wax jewelry casting?
Yes. Many jewelry workshops use 3D printed wax or castable resin patterns for complex custom jewelry. The burnout curve must be suitable for the resin material to avoid residue and rough surface.
Why does jewelry casting still have pores after using a vacuum casting machine?
Pores can come from investment bubbles, poor wax tree design, insufficient burnout, dirty metal, incorrect temperature or weak vacuum performance. The complete process should be checked step by step.
What information should I provide before buying a jewelry casting machine?
Provide your material, maximum flask size, casting weight per batch, jewelry type, daily output and whether you use wax injection or 3D printed patterns. This helps select the right chamber size and machine capacity.
