Precious Metal Testing Technical Guide

XRF Gold Testing Machine Guide: Accuracy, Detectors and Testing Limits

An XRF gold testing machine can identify surface elemental composition quickly and without cutting or acid damage, but reliable buying decisions require more than one reading. This technical buyer guide explains detector selection, calibration, collimator size, sample geometry, plated jewelry, tungsten-filled counterfeits and the situations that require destructive confirmation.

XRF gold testing machine XRF gold testing accuracy gold purity testing machine precious metal XRF analyzer
EDX3000 Plus FAST-SDD XRF gold testing machine
EDX3000 Plus
CDOCAST S6 desktop XRF gold analyzer
S6
EDX800 Plus split type XRF analyzer
EDX800 Plus

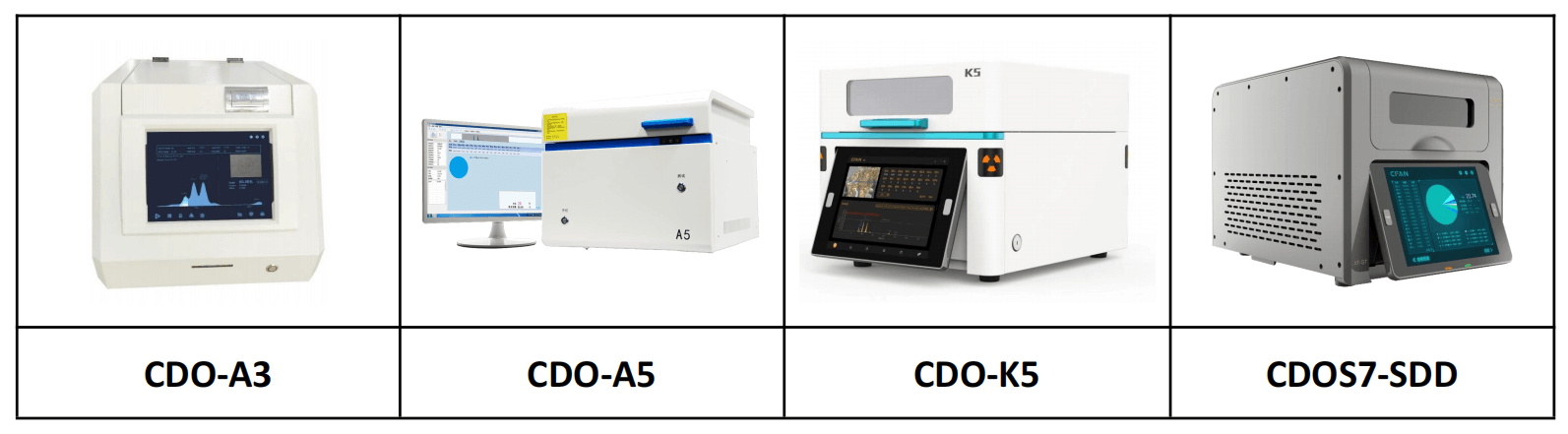

Current CDOCAST desktop XRF series for jewelry shops, gold buyers, recycling counters and high-precision laboratories.

Can XRF verify real gold?

XRF is excellent for fast elemental screening and karat estimation at the tested surface. It can detect gold, silver, platinum-group metals and many alloying or suspicious elements when the instrument, calibration and test method are suitable. However, a normal XRF reading does not automatically prove that the entire object has the same composition. Plating, curved geometry, mixed components, solder, surface treatment and a different internal core can mislead a single-point result. Suspicious high-value material should be tested at multiple positions and confirmed by cutting, melting, density testing or an appropriate laboratory assay when necessary.

CDOCAST X3 desktop XRF analyzer for daily jewelry and precious metal testing

When Should You Use an XRF Gold Analyzer?

Use an XRF analyzer for jewelry when the business needs fast screening of gold, silver, platinum, palladium and alloying elements. As a non-destructive gold testing machine, it is useful for incoming-material checks, karat sorting, recycling decisions, production quality control and customer-facing transaction records.

The X-ray tube excites atoms near the sample surface. Each detectable element produces characteristic fluorescence energies, and the detector converts the spectrum into qualitative and quantitative results using the selected calibration model. Measurement quality depends on the complete system: tube, detector, optical geometry, collimator, software, standards, test time and sample condition.

Important limitation: XRF is primarily a surface and near-surface elemental method. It does not directly reveal the full internal construction of a thick item or replace a representative bulk assay. Treat the result as one part of a controlled verification workflow.

How XRF Gold Testing Works

A repeatable test requires controlled positioning and the correct calibration—not only pressing “Start.”

01Excite the SampleThe X-ray tube irradiates the selected spot under an enclosed, interlocked chamber.
02Collect FluorescenceElements emit characteristic X-ray energies from the analyzed surface region.
03Resolve the SpectrumThe detector and software separate peaks, background and overlapping element signals.
04Apply CalibrationThe selected method converts spectral intensity into composition and karat estimates.

Desktop XRF vs Handheld XRF vs Fire Assay

These methods answer different questions and should not be treated as interchangeable.

Decision factorDesktop XRF gold testerHandheld XRF analyzerFire assay or laboratory method
Primary useControlled precious-metal screening at a shop, counter or laboratoryPortable field screening of scrap, alloys, ore or large itemsRepresentative bulk or reference analysis using the selected laboratory method
Sample controlEnclosed chamber supports stable positioning and interlocked testingOperator geometry and surface contact can vary more in the fieldRequires representative sampling and sample preparation
Damage to itemNormally non-destructive at the tested pointNormally non-destructive at the tested pointUsually destructive or requires removal of representative material
Internal core verificationLimited; a normal surface result does not prove bulk uniformityLimited; multiple points improve screening but not full-depth proofCan represent bulk composition if sampling and method are appropriate
Best fitGold buying, jewelry stores, recycling and production QCField sorting, mining, scrap yards and large-object inspectionSettlement, certification, dispute resolution and high-confidence confirmation

Proportional, Si-PIN and SDD XRF Detector Comparison

Detector type matters, but accuracy claims must be evaluated using the full instrument and application.

Detector optionPractical strengthsTypical buyer fitQuestions to verify
Gas proportional detectorEconomical screening of common precious-metal elementsBasic gold and silver verification with a limited element listElement range, resolution, calibration matrices and repeatability
Si-PIN detectorSemiconductor detection with wider commercial precious-metal capabilityJewelry shops, gold buyers and recycling operations needing broader alloy analysisResolution, cooling, count rate, Re/W separation and software method
SDD or FAST-SDD detectorHigher count-rate capability and stronger peak separation in demanding systemsLaboratories, complex alloys and high-precision work; CDOCAST EDX3000 Plus uses a FAST-SDD configurationCertified resolution, detection limits by matrix, calibration and test time
Si-PIN vs SDD XRF detector: do not select from detector name alone. Request results from representative standards and difficult samples using the proposed tube, optics, software, calibration and measurement time.

What Are the Main XRF Gold Analyzer Limitations?

Most testing errors are caused by sample and method mismatch rather than one isolated component.

Plating and surface treatmentA gold surface can dominate the reading while a different material remains underneath.
Curved or irregular geometryChanging distance and angle affects excitation, signal collection and repeatability.
Solder and mixed componentsA large beam may measure the main alloy, solder and nearby stones or settings together.
Wrong calibration methodA model developed for one alloy family may give biased results on another matrix.
Short measurement timeRapid screening may not provide enough counts for weak or overlapping element signals.
Surface contaminationPolish, dirt, oxidation or residues can influence the analyzed surface region.

Collimator Size and Sample Geometry

The XRF collimator size determines the approximate illuminated spot. A smaller spot helps isolate tiny clasps, solder joints, suspicious marks and individual areas of mixed jewelry, but it collects fewer counts under otherwise identical conditions and may need a longer test.

A larger collimator collects signal from a wider area and may improve count statistics on a flat, uniform sample. It can also mix signals from adjacent materials. For example, a broad spot on a gold setting beside platinum can report a composition that represents neither component correctly.

Before buying, test flat standards, curved jewelry, small parts, chains, soldered items and coated samples. The optical path, camera, sample stage and available collimator sizes should match the objects used in daily business.

Handheld XRF analyzer testing precious metal jewelry sample geometry

How to Detect Gold Plated Tungsten and Other Counterfeits

No single non-destructive reading should be used as absolute proof of internal composition.

01Inspect the ItemCheck seams, black spots, wear, drill marks, solder and inconsistent color.
02Test Multiple PointsMeasure different faces, edges, suspicious areas and both sides where possible.
03Use the Right SpotSelect a collimator that isolates the target without mixing nearby materials.
04Compare RepeatabilityRepeat tests and investigate composition changes between positions.
05Cross-Check PhysicallyUse weight, dimensions, density and other approved screening methods.
06Confirm When NeededFor high-risk purchases, cut, drill, melt or obtain representative laboratory assay results.
07Document the DecisionSave spectra, sample photos, positions, methods and operator notes.
08Control the WorkflowDefine when a transaction must stop and require destructive confirmation.

How to Choose an XRF Gold Testing Machine

Convert the real testing workload into measurable acceptance requirements.

Elements and concentration range

List the common alloys and suspicious elements, including Au, Ag, Pt, Pd, Cu, Ni, Zn, W, Re and other materials relevant to the business.

Detector and spectral resolution

Request the proposed detector type, certified resolution, cooling method and performance on overlapping peaks in representative matrices.

Calibration and standards

Confirm the XRF calibration standard set, available precious-metal methods, daily verification procedure, drift correction and custom profile support.

Collimator and sample chamber

Match spot sizes, chamber dimensions, camera positioning and sample support to rings, chains, bars, coins, scrap and larger objects.

Test time and throughput

Specify screening time, quantitative time, samples per hour, report requirements and the method used for low-level or difficult elements.

Radiation safety and compliance

Verify interlocks, warning indicators, leakage documentation, local registration, operator training and applicable destination-market requirements.

Software and data ownership

Check report formats, spectra access, audit trail, user permissions, database export, software updates and recurring license costs.

Service and operating environment

Confirm installation, remote diagnostics, calibration support, tube and detector service, temperature, humidity and voltage stability.

XRF Gold Analyzer Acceptance Test Checklist

Do not accept an instrument using only one clean gold standard.

Certified standards covering the intended gold and alloy ranges
Repeatability tests at short and normal measurement times
Representative rings, chains, coins, bars, scrap and curved samples
Plated, soldered and multi-material samples with known construction
Tungsten, rhenium and other suspicious-element test pieces
Small and large collimator comparison on the same item
Multiple-position test procedure and spectrum review
Calibration, drift check and daily quality-control workflow
Report export, user access, data backup and software update test
Door interlock, warning indicator and radiation-safety documentation
Technical and safety references: the IAEA notes that XRF is widely used for fast elemental analysis and classifies instruments by dispersion and detection approach; see its XRF laboratory instrumentation overview. XRF uses ionizing radiation, so buyers must verify the regulatory category and requirements that apply in the destination market. For U.S. context, review the FDA cabinet and analytical X-ray guidance.

Related Precious Metal Testing Resources

Continue to the equipment and reference pages that match the testing environment.

XRF Gold Testing Machine FAQ

Direct answers to common questions about accuracy, calibration and counterfeit testing.

How accurate is an XRF gold testing machine?

Accuracy depends on the instrument, detector, calibration, standard quality, test time, sample geometry, surface condition and alloy matrix. A percentage printed on a specification sheet is not universal accuracy for every sample. Evaluate bias and repeatability using certified standards and representative jewelry or scrap.

Can XRF detect gold-plated tungsten?

XRF may detect tungsten when it is present within the effective analyzed region or exposed at a tested location. A sufficiently thick gold layer can dominate a surface reading, so XRF alone cannot guarantee that an item has no hidden tungsten core. Use multiple positions, physical checks and destructive confirmation for high-risk material.

What is the difference between Si-PIN and SDD XRF detectors?

Both are semiconductor detectors. SDD systems commonly support higher count rates and stronger spectral separation in demanding applications, while Si-PIN systems can provide practical performance for commercial precious-metal testing. The complete instrument, calibration and test method determine actual results.

How often should an XRF gold analyzer be calibrated?

Follow the manufacturer’s startup and quality-control procedure. Daily verification with suitable standards is common, while recalibration frequency depends on instrument stability, environmental conditions, method changes and quality-system requirements. Record control results so drift is visible.

Does XRF test the surface or the whole gold item?

XRF analyzes a surface and near-surface region whose effective depth depends on the element, energy, matrix and instrument conditions. It does not directly measure the entire volume of a thick bar or jewelry item. Bulk claims require representative sampling or an appropriate confirmatory method.

Which XRF collimator size should I choose?

Use a smaller spot to isolate tiny features, solder joints or suspicious areas, accepting that fewer counts may require longer testing. Use a larger spot on flat, homogeneous samples when broader coverage is appropriate. Buyers handling varied jewelry benefit from multiple collimator options and camera positioning.

Can XRF replace fire assay for gold?

XRF is faster and non-destructive, making it valuable for screening, sorting and quality control. Fire assay or another validated laboratory method may still be required for representative bulk composition, settlement, certification or disputes. The methods are complementary rather than automatic replacements.

Test the Samples You Actually Buy

Prepare your target elements, alloy range, suspicious materials, sample shapes, throughput and reporting requirements before comparing XRF instruments.
