Introduction to Precious Metal Wire Production
The production of high-precision gold and silver wires with diameters as fine as 1mm represents a remarkable feat of metallurgical engineering. These specialized wires serve critical functions across multiple industries, including electronics (for semiconductor bonding wires), luxury jewelry crafting, medical device manufacturing, and advanced scientific applications. The manufacturing process demands exceptional precision, as even micron-level variations can significantly impact the wire’s performance characteristics.

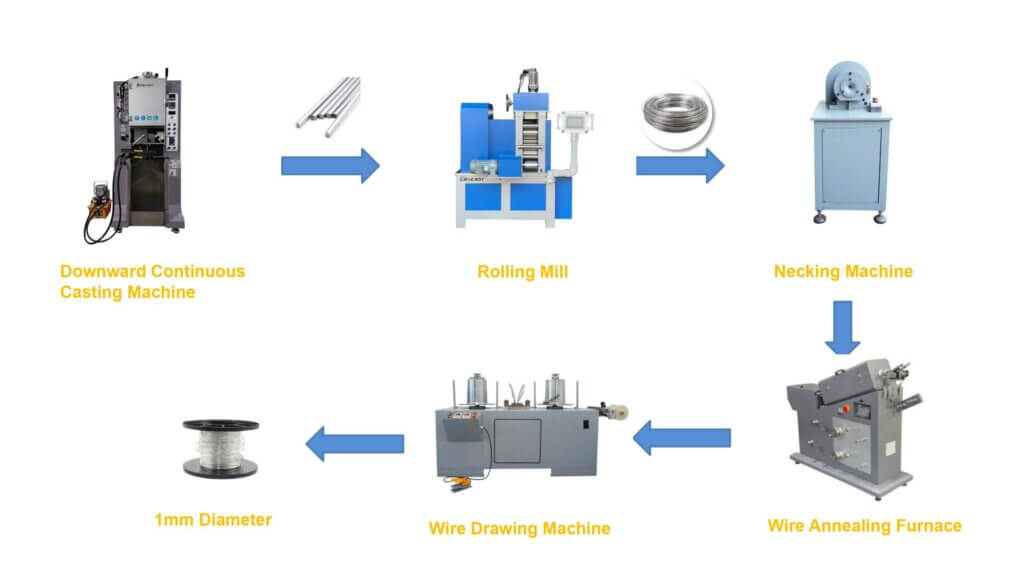

This comprehensive guide will examine the complete production workflow, focusing on five essential pieces of equipment that transform raw precious metals into perfectly calibrated 1mm wires:
- Downward Continuous Casting Machine – Creates the initial wire rod from molten metal
- Rolling Mill-Systematically reduces the wire diameter through controlled compression
- Necking Machine– Prepares wire ends for the drawing process
- Annealing Furnace – Optimizes material properties through heat treatment
- Wire Drawing Machine – Achieves the final 1mm diameter with micron-level precision
Each stage in this process contributes uniquely to the wire’s final quality, with particular attention to maintaining the metal’s structural integrity, surface quality, and mechanical properties. We’ll explore not only how each machine operates but also why each step is crucial for producing wire that meets the exacting standards of high-tech industries.
1. Downward Continuous Casting Machine: Foundation of Quality
The Critical First Step
The downward continuous casting machine establishes the fundamental quality parameters for the entire production process. Unlike traditional casting methods that produce discrete ingots, this continuous process creates a uniform, uninterrupted rod of precious metal, typically with an initial diameter between 8-12mm.
Advanced Process Mechanics
The casting process begins with high-purity gold or silver (99.99% or better) being melted in a Pure Graphite crucible under controlled atmospheric conditions to prevent oxidation. The molten metal then flows into a water-cooled graphite mold where solidification begins immediately. What makes the downward continuous process unique is the extraction mechanism – as the metal solidifies at the mold interface, it’s continuously drawn downward by precision-controlled rollers at a rate perfectly synchronized with the solidification front.
Key parameters under constant monitoring include:
– Melt temperature (typically 50-100°C above the metal’s melting point to get better Metal fluidity )
– Cooling water temperature and flow rate
– Extraction speed (usually 100mm-200mm per minute)
– Atmospheric gas composition
1. Downward Continuous Casting Machine Setup
Machine Components
A typical downward continuous casting system consists of:
– Melting furnace(induction or resistance heating)
– Graphite crucible & mold (water-cooled)
– Extraction rollers(servo-controlled speed)
– Cooling system (water spray or immersion)
–Coiling unit(for continuous wire collection)
2. Process Parameters for 8mm Wire Production
Key Adjustments for 8mm Diameter
– Mold Nozzle Size: 8.2–8.5mm (accounts for shrinkage)
– Cooling Rate: Faster cooling for finer grain structure
– Tension Control: Prevents wire deformation during extraction
3. Step-by-Step Operating Procedure
(1) Startup & Preheating
- Preheat the graphite mold to 200–300°C to avoid thermal shock.
- Load gold/silver feedstock into the crucible.
- Melt under inert gas (Ar/N₂) to prevent oxidation.
(2) Casting Initiation
- Start extraction rollers at low speed (100 mm/min).
- Begin water cooling once the molten metal exits the mold.
- Gradually increase speed to the target rate (200mm/Min).
(3) Continuous Production
– Monitor diameter with laser micrometers.
– Adjust cooling rate to prevent surface cracks.
– Check tension to avoid wire breakage.
(4) Coiling & Post-Processing
– Spool the wire onto take-up reels.
– Inspect for defects (cracks, porosity).
– Annealing (if needed) to relieve stress.
4. Common Defects & Troubleshooting
| Defect | Cause | Solution |
| Surface cracks | Rapid cooling, improper mold temp | Adjust water flow, preheat mold |
| Diameter variation | Unstable extraction speed | Optimize roller tension |
| Porosity | Gas entrapment | Degas molten metal before casting |
| Wire breakage | Excessive tension | Reduce extraction speed |
5. Advantages of Downward Continuous Casting
✅High production efficiency(continuous operation)
✅ Superior surface finish (no oxidation)
✅ Fine, uniform grain structure (better ductility)
✅Minimal material waste (no cutting losses)
6. Conclusion
Downward continuous casting is the optimal method for producing 8mm gold and silver wire with high precision and consistency. By controlling melting temperature, cooling rate, and extraction speed, manufacturers can achieve defect-free wire ready for further processing (drawing, annealing, etc.).
For best results:
✅ Use high-purity feedstock (≥99.99%)
✅ Maintain stable process parameters
✅ Implement real-time quality checks
2. Rolling Mill: Precision Diameter Reduction
Introduction to Precision Wire Rolling Machine
Equipment Overview
This wire rolling machine is a professional industrial equipment designed for metal wire processing, especially suitable for precision rolling of precious metal wires such as gold and silver. Featuring a heavy-duty steel structure, the machine offers excellent stability and durability, capable of high-precision processing of wires ranging from 8×8mm to 1×1mm.
Key Parameters
| Item | Parameter | Item | Parameter |
| Dimensions | 1340×750×1420mm (L×W×H) | Weight | 900kg (ensures operational stability) |
| Drive System | 5.5kW, 3P motor (380V) | Processing Range | 8×8mm to 1×1mm wires |
| Processing Speed | 18.3 meters/minute (adjustable) | ||
Core Components
1.Rolling Roller System
– Material: Cr12MoV alloy tool steel
– Hardness: HRC 60–62 (Rockwell hardness)
– Size: Φ132×228mm (diameter × length)
– Features: Precision-ground surface with roughness Ra ≤ 0.1μm
2. Lubrication System
– Type: Bearing bush grease lubrication
– Equipped with: Automatic oil injection device
– Maintenance Interval: Grease replenishment every 500 hours of continuous operation
3. Wire Take-up Unit
– Synchronized Take-up Speed: 18.3 ± 0.5 m/min
– Tension Control: Pneumatic braking system
– Spool Capacity: Standard 500mm diameter
– Optional: Automatic wire-traversing device
Workflow:
- Feeding: Coarse wire is guided into the entry system.
- Rolling: Gradual diameter reduction via precision rollers.
- Cooling: Forced air cooling system.
- Take-up: Constant-tension coiling onto spools.
Applications:
– Precious metal wire processing (gold/silver/platinum)
– Pre-treatment for bonding wires in electronics
– Special alloy wire production
– Conductive materials for precision instruments
Advantages:
✅ High-hardness rollers ensure long service life.
✅Precise speed control guarantees dimensional consistency.
✅ Heavy-duty construction minimizes vibration impact.
✅ Modular design simplifies maintenance.
This machine achieves efficient and precise processing of precious metal wires through accurate mechanical design and stable control systems, making it a key production asset in wire manufacturing. The optimized take-up system ensures high-quality wire coiling, preventing tangling or surface scratches.
3. Necking Machine: Preparing for Drawing
Introduction to Precious Metal Pointing Machine
1. Equipment Overview
The precious metal necking machine is a precision processing equipment specifically designed for end treatment of metal wires. It is primarily used to process wire ends into conical or other specific shapes in preparation for subsequent wire drawing processes. This equipment is particularly suitable for precision processing of precious metal wires such as gold and silver.
2. Main Applications
- Preparing wire ends for drawing processes
- Achieving precision shaping of wire ends
- Improving efficiency and quality of subsequent processing
3. Key Parameter
| Item | Parameter | Item | Parameter |
| Dimensions | 730×480×1050mm | Weight | 350kg |
| Motor Power | 3kW | Voltage | 3p, 380V |
| Processing Range | Φ2-12mm | Tapering Ratio | ≤50% |
| Die Material | D2 Tool Steel (HRC60-62) | Die Length | 100mm |
| Lubrication System | Automatic oil lubrication with 3-phase electric pump | ||
4. Operating Instructions
1.Preparation
– Inspect all equipment components
– Verify proper operation of lubrication system
– Select and install appropriate dies
2.Operation Process
– Feed wire into the guiding device
– Start machine for pointing operation
– Control pointing shape through adjustment mechanism
– Automatic discharge after completion
3.Precautions
– Confirm wire diameter is within permitted range before processing
– Regularly inspect die wear condition
– Maintain proper operation of lubrication system
5. Equipment Features
✅Precision guiding system ensures processing accuracy
✅Powerful motor provides stable power output
✅High-quality dies guarantee processing quality
✅Automatic lubrication extends equipment lifespan
6. Application Fields
- Precious metal wire processing
- Special metal wire treatment
- Precision wire preparation for electronics industry
- Special wire processing for instruments and meters
This compact and easy-to-operate pointing machine is an indispensable equipment in metal wire processing. Its precision processing capability ensures wire end shapes meet the strict requirements of subsequent processes.
4. Annealing Furnace: Restoring Workability
Continuous Tunnel Annealing Furnace for Wire: Functions and Application
1. Primary Functions
The continuous tunnel annealing furnace is an industrial system designed for the controlled heat treatment of metal wires (e.g., gold, silver, copper, and alloys). Its core functionalities include:
– Stress Relief: Eliminates work hardening through thermal recovery, restoring ductility for downstream drawing or forming processes.
– Microstructural Optimization: Refines grain structure to enhance mechanical properties (e.g., tensile strength, elongation) and electrical conductivity.
– Dimensional Stability: Reduces residual stresses to prevent warping or fractures during subsequent processing.
-Surface Protection: Optional inert gas atmospheres (N₂/H₂) prevent oxidation, preserving surface finish.
2. Key Features
✅ Continuous Processing: Automated wire feeding, heating, cooling, and coiling enable high-volume production with uniform quality.
✅ Precision Temperature Control: PID-regulated zones (300–1000°C, material-dependent) ensure consistent heat treatment.
✅ Energy Efficiency: Integrated heat recovery systems minimize energy consumption; select models support waste heat utilization.
✅ Modular Design: Customized parameters include heating zone length, cooling methods (air/water quenching), and gas purification systems.
3. Industrial Applications
– Precious Metal Processing: Annealing of Au/Ag/Pt wires for jewelry, bonding wires in microelectronics.
– Non-Ferrous Wire Production: Intermediate annealing of copper/aluminum wires (e.g., cables, enamelled wires, welding filaments).
– High-Performance Alloys: Softening treatment for Ti alloys, Ni-Cr wires, and other specialty materials.
– Precision Electronics: Critical for semiconductor lead frames and micro-coil manufacturing.
4. Operational Workflow
- Feeding: Wire is uniformly fed into the furnace via an unwinding system.
- Heating: Soaked at target temperature (time adjusted for wire diameter/material).
- Controlled Cooling: Gradual or rapid cooling zones prevent secondary hardening.
- Rewinding: Automated tension-controlled coiling outputs annealed wire ready for further processing.
This system is indispensable for high-throughput, precision wire annealing, ensuring repeatable results in advanced metalworking applications.
5. Wire Drawing Machine: Achieving 1mm Precision
The Final Reduction Process
The wire drawing machine performs the ultimate diameter reduction, taking the annealed wire from 3-5mm down to the final 1mm specification. This requires passing the wire through a series of progressively smaller dies, with careful control of multiple parameters at each stage.
Die Technology and Selection
Detailed Classification and Functions of Precious Metal Wire Drawing Machines
1. Machine Types
1.Single-Die Drawing Machine
– Application: R&D labs, small-batch production
– Key Features: Compact structure with single die station
– Processing Range: Φ0.5-3mm precious metal wires
– Speed Range: 5-20m/min
2.Multi-Die Continuous Drawing Machine
– Application: Industrial mass production
– Key Features: 4-12 dies in tandem configuration
– Processing Range: Progressive reduction from Φ3mm to 0.05mm
– Speed Range: 30-150m/min
3.Precision Micro-Drawing Machine
– Application: Electronic-grade wire production
– Key Features: Constant tension control system
– Processing Range: Φ0.1mm to 0.01mm
– Special Configuration: Laser diameter gauge (±0.001mm accuracy)
2. Core Functional Systems
| Item | Parameter |
| Power Drive System | |
| Configuration | Servo motor + gear reducer |
| Power Range | 5-50kW |
| Speed Control Accuracy | ±0.1% |
| Die Temperature Control System | |
| Temperature Range | 20-80℃ |
| Cooling Method | Circulating water cooling |
| Temperature Stability | ±1℃ |
| Tension Management System | |
| Detection Method | Strain gauge sensors |
| Adjustment Range | 0.5-50N |
| Response Time | ≤10ms |
3. Special Function Configurations
1. In-line Annealing Module
– Integration Position: Between dies or exit section
– Heating Method: Induction/resistance heating
– Temperature Control: PID closed-loop regulation
2. Intelligent Inspection System
– Components: Laser diameter measurement + CCD surface inspection
– Inspection Frequency: 1000 times/minute
– Data Output: SPC statistical analysis reports
3. Environmental Treatment Unit
– Lubricant Recovery: Three-stage filtration system
– Waste Collection: Automatic coiling device
– Noise Control: ≤65dB
4. Selection Recommendations
Jewelry Manufacturing
– Recommended Model: Single-Die + Multi-Die combination
– Key Parameter: Surface finish prioritized
Electronics Industry
– Recommended Model: Precision micro-drawing type
– Key Parameter: Diameter consistency prioritized
Medical Devices
– Recommended Model: Cleanroom-specific type
– Key Parameter: Dust-free and pollution-free operation
Note: The latest technological trends show that intelligent drawing machines in 2023 commonly feature AI process optimization systems capable of:
– Die wear prediction
– Dynamic energy optimization
– Automatic defect diagnosis and other advanced functions.
Conclusion: The Art and Science of Precision Wire Production
The journey from molten gold or silver to precision 1mm wire represents a remarkable combination of metallurgical science, mechanical engineering, and process control. Each machine in the production sequence – from the initial downward continuous caster to the final drawing machine – plays an essential role in determining the wire’s ultimate quality and performance characteristics.
As technology advances, we’re seeing several important trends in precious metal wire production:
– Increased automation and digitalization
– Development of “smart” machines with AI-driven process optimization
– Improved energy efficiency and sustainability
– Tighter tolerances and better surface finishes
– Expanded alloy options for specialized applications
For manufacturers, maintaining competitiveness requires continuous investment in both equipment and expertise. For end-users, understanding this production process enables better specification of wire products and more effective troubleshooting of application issues.
Whether for bonding wires in advanced semiconductors, precision components in medical devices, or exquisite details in high-end jewelry, the 1mm gold and silver wires produced through this carefully controlled process enable technologies and products that shape our modern world.
🛠 Ready to Supercharge Your Output? 🛠
👇Click the link below now to get exclusive quotes and technical solutions!
WA:+86 15168765707
Email: [email protected]
Website: www.cdocast.com
