Metal Powder Atomization: Water vs Gas Atomization
Metal powder atomization converts a controlled stream of molten metal into droplets, then solidifies those droplets into powder. The atomizing medium—normally high-pressure water or gas—strongly influences particle shape, surface condition, oxygen exposure, collection method and production cost.
The correct process starts with the powder’s final use. Refining, pressing and sintering may favor economical irregular powder, while laser powder-bed fusion and other demanding feed systems commonly require more spherical, flowable powder with tighter chemistry control.
What Is Metal Powder Atomization?
Metal powder atomization is a manufacturing process in which molten metal or alloy flows through a tundish or nozzle and is broken into small droplets by a high-velocity fluid. The droplets cool and solidify inside an atomization chamber before collection, drying where necessary, screening and classification.
Atomization does not automatically produce one exact particle size. It creates a particle-size distribution. Melt temperature, viscosity, surface tension, metal-stream diameter, atomizer geometry, medium pressure, flow rate, chamber conditions and classification all influence the usable powder fraction.

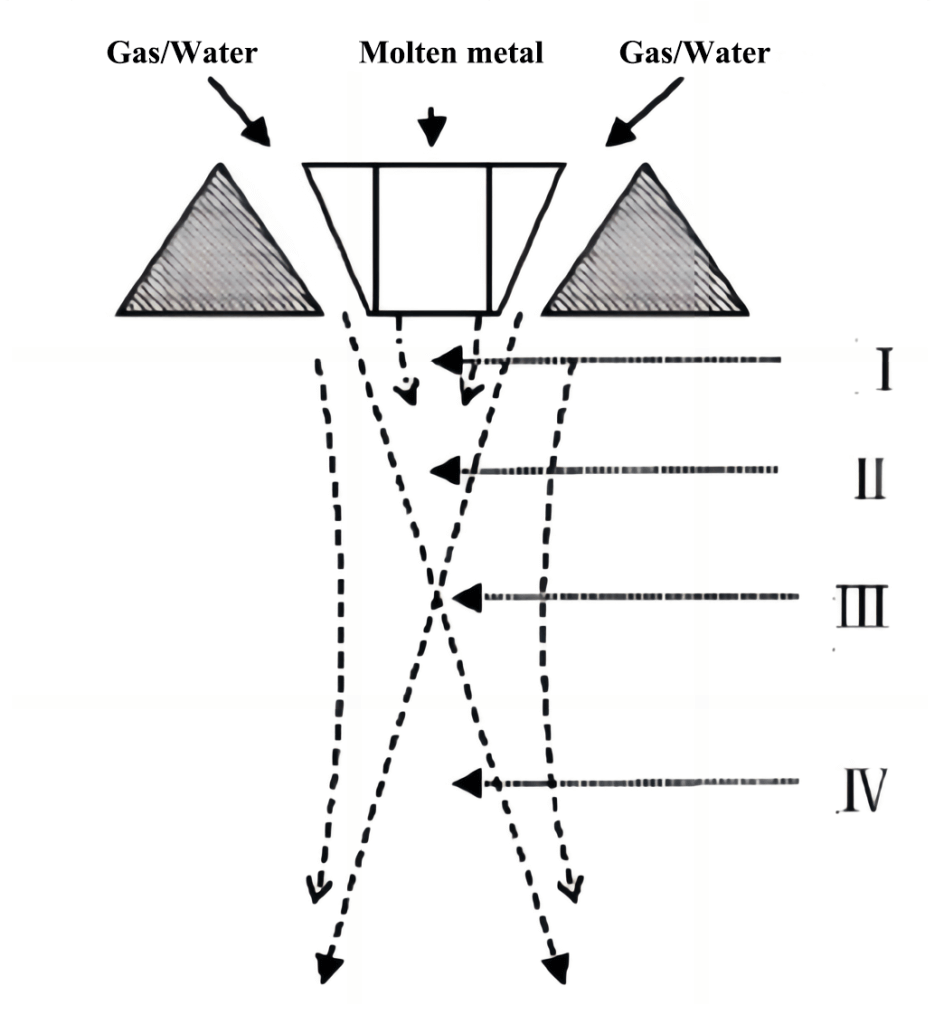

How the Metal Atomization Process Works
The basic route is similar for water and gas atomization. The important difference appears when the molten stream reaches the atomizer. Water jets transfer high momentum and remove heat rapidly. Gas jets—often nitrogen or argon depending on alloy compatibility—form droplets in a controlled atmosphere and allow them to solidify during flight.
A stable melt stream is essential. If the tundish temperature, nozzle flow or atomizing jet changes during a batch, the particle-size distribution and morphology can change with it.
Confirm chemistry and clean feedstock.
Reach the required liquid condition and superheat.
Meter metal through the tundish nozzle.
Water or gas breaks the stream into droplets.
Droplets cool inside the chamber.
Dry if required, sieve and test each fraction.
Water Atomization vs Gas Atomization
| Comparison | Water atomization | Gas atomization |
|---|---|---|
| Atomizing medium | High-pressure water jets. | High-velocity nitrogen, argon or another process-compatible gas. |
| Typical morphology | More irregular or angular particles with rougher surfaces. | More spherical or near-spherical particles under suitable conditions. |
| Cooling and collection | Rapid quenching and wet powder collection; separation and drying are required. | Droplets normally solidify in the chamber and powder is collected dry. |
| Atmosphere and oxygen | Water contact and exposed process stages can increase oxidation risk, depending on metal and protection. | Inert processing can support lower oxygen pickup, subject to system tightness, gas purity and alloy. |
| Particle distribution | Often broad; the required fraction is obtained by screening or classification. | Can provide a useful fine, spherical fraction, but classification is still normally required. |
| Flowability | Irregular powder generally flows less freely. | Spherical powder normally has better flow and packing behavior. |
| Relative operating cost | Often more economical for larger-volume, less morphology-sensitive powder. | Usually higher due to inert gas, chamber, atmosphere and powder-quality requirements. |
| Common applications | Refining preparation, pressing and sintering, some MIM, welding and powder-metallurgy grades. | Additive manufacturing, thermal spray, HIP feedstock and demanding spherical-powder applications. |
Important: these are typical tendencies, not automatic guarantees. A poorly controlled gas atomization run can produce satellites, irregular particles or excessive fines. A carefully developed water atomization process can produce useful sub-spherical fractions. Powder must be tested against the final application specification.

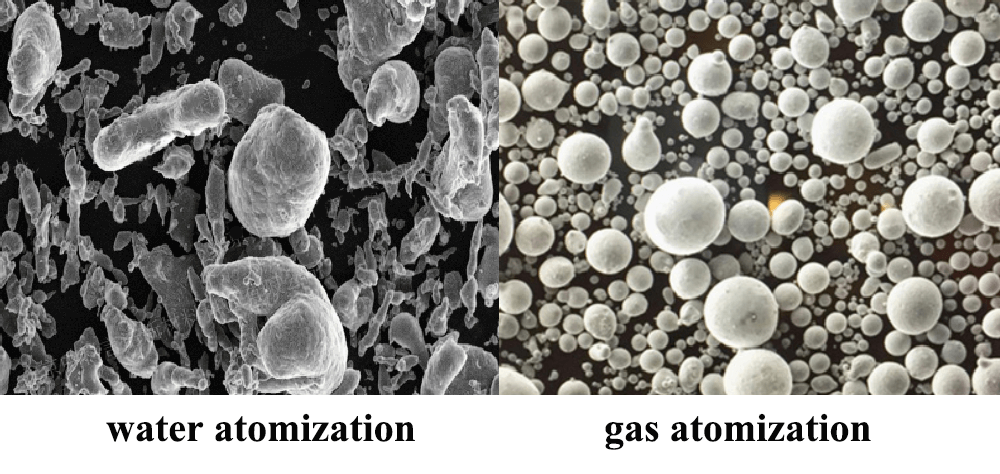

Why Water- and Gas-Atomized Powders Look Different
Water jets break and quench droplets aggressively. The droplets may solidify before surface tension can round them completely, which commonly produces irregular particles. Their rougher surface can provide useful green strength and compressibility in selected pressing operations.
Gas-atomized droplets remain airborne while surface tension draws them toward a sphere. Spherical particles generally flow and spread more consistently, which is valuable when a recoater, feeder or narrow channel must deliver a uniform powder layer.
Particle shape is only one part of quality. Satellites, internal pores, hollow particles, surface oxides and contamination can still affect performance.
Six Powder Properties That Matter More Than “Mesh” Alone
Specify the required micron fraction, allowable oversize and fines, and usable yield. A nominal mesh range does not describe the complete distribution.
Shape affects flow, packing, compaction and surface area. Define how roundness, aspect ratio or satellite content will be evaluated.
Set alloy composition, oxygen limit and contamination restrictions. Melting atmosphere, atomization medium and post-processing all influence chemistry.
Flow tests show how consistently powder moves through a funnel, feeder or deposition system. Test method and powder fraction must be stated.
Density affects die filling, packaging, transport and layer packing. Compare results using the same standard and conditioning method.
Water-atomized powder requires controlled separation and drying. Storage atmosphere and packaging can also change powder condition.
What Controls Metal Powder Particle Size?
A machine therefore cannot promise that every particle will be one exact mesh. Buyers should request a target distribution and minimum yield within the useful fraction, then verify it by representative sampling.
Which Metals Can Be Atomized?
In principle, many metals and alloys that can be melted and discharged as a stable stream can be atomized. In practice, the furnace, crucible, tundish, nozzle, atmosphere and collection system must be compatible with the metal’s melting temperature, reactivity and contamination limits.
| Material group | Possible process direction | Points to confirm |
|---|---|---|
| Gold, silver and precious-metal alloys | Water atomization for refining or pressing feed; gas atomization where spherical powder is required. | Recovery rate, cross-contamination, oxygen, security and cleaning between alloys. |
| Copper and copper alloys | Water atomization for economical powder; gas atomization for more spherical grades. | Oxidation control, drying and final electrical or thermal application. |
| Iron and stainless steel | Water or gas atomization according to morphology and chemistry requirements. | Furnace temperature, refractory compatibility, oxygen and post-atomization treatment. |
| Nickel and high-temperature alloys | Controlled inert-gas atomization is common for demanding powder applications. | High-temperature melting, superheat, contamination and inert-atmosphere integrity. |
| Reactive metals and alloys | Require a specially engineered controlled-atmosphere process. | Fire/explosion risk, crucible interaction, oxygen pickup and applicable safety standards. |
When Should You Choose Water or Gas Atomization?
Choose Water Atomization When
- Irregular or sub-spherical powder is acceptable or beneficial.
- Production cost and batch output are major priorities.
- The powder is intended for refining, pressing, sintering or another compatible application.
- Wet collection, separation, drying and wastewater treatment can be properly managed.
- The required oxygen and contamination limits can be achieved with the proposed protection system.
Choose Gas Atomization When
- Spherical morphology and reliable flowability are essential.
- The application requires controlled chemistry and lower oxygen pickup.
- The powder is being developed for additive manufacturing, thermal spray, HIP or another demanding feed system.
- The project can support inert-gas consumption, atmosphere control and higher equipment complexity.
- Qualification will include morphology, chemistry, density and flow testing—not particle size alone.
How to Evaluate an Atomized Metal Powder Sample
Before selecting production equipment, define the test method and acceptable result for the actual powder application. A representative qualification plan may include:
The NIST metal powder metrology overview illustrates why particle size, morphology, density and flow require separate measurements. A supplier sample should be judged against the agreed specification, not only by visual appearance.
Metal Powder Atomization Requires More Than an Atomizing Nozzle
A complete process may include induction melting, tundish heating, high-pressure water or gas systems, an atomization chamber, powder recovery, water separation, drying, sieving, dust collection, inerting, grounding and safe storage. Utilities and safety controls must be engineered for the actual alloy and production scale.
Fine metal powders can present fire, explosion, reactivity, inhalation and static-discharge hazards. Water atomization also creates wastewater and wet powder that must be separated and dried safely; gas atomization adds high-pressure gas and controlled-atmosphere hazards. Review the OSHA combustible-dust guidance and the applicable standards in the installation country.
From Atomization Method to Equipment Selection
Metal Powder Atomization FAQ
What is the main difference between water and gas atomization?
Water atomization uses high-pressure water and normally produces wet, more irregular powder that requires drying. Gas atomization uses a high-velocity gas and can produce more spherical, dry-collected powder under a controlled atmosphere.
Is gas-atomized powder always spherical?
No. Gas atomization tends to produce more spherical powder, but morphology depends on melt condition, nozzle design, gas flow, atomization pressure, chamber conditions and alloy properties. Satellites and irregular particles can still occur.
Can water-atomized powder be used for 3D printing?
Some binder-jet or other applications may accept a qualified water-atomized grade, but laser powder-bed fusion commonly favors spherical gas-atomized powder because of flow and layer-spreading requirements. The decision must be based on the printer, powder specification and trial results.
Does higher atomization pressure always make finer powder?
Pressure is one influential variable, but it must be considered with medium flow, nozzle geometry, metal-stream diameter, alloy viscosity, superheat and atomizer position. Increasing one setting alone does not guarantee a stable fine-powder yield.
What powder information should be provided to an equipment supplier?
Provide the alloy, batch and daily output, required micron distribution, minimum usable yield, morphology, oxygen and impurity limits, flow and density requirements, final application, utilities and preferred test methods.
What is the difference between metal powder and metal granules?
Atomized powder is produced and classified into relatively fine fractions for refining, pressing, sintering, coating or additive processes. Granules are larger particles commonly used for remelting, dosing or refining preparation and usually do not require the same tight powder qualification.
Define the Powder Before Selecting the Atomization Equipment
Send CDOCAST the alloy, required particle-size distribution, morphology, oxygen limit, batch capacity and final application. We can then evaluate water atomization, gas atomization, melting method, chamber structure and powder recovery as one process.
