How to make gold coins and bars?
Gold has been a symbol of wealth, power, and beauty for thousands of years. From ancient civilizations to modern economies, gold coins and bars have played a crucial role in trade, investment, and artistry. The process of creating gold coins and bars is a fascinating blend of metallurgy, precision engineering, and craftsmanship. This article will delve into the detailed steps involved in manufacturing gold coins and bars, as well as the specialized equipment used throughout the process.
1. Sourcing and Refining Raw Gold
The journey of creating gold coins and bars begins with sourcing raw gold. Gold is typically extracted from mines in the form of ore, which contains impurities such as silver, copper, and other metals. To produce pure gold, the ore undergoes a refining process.
1.1 Refining Process:
– Crushing and Grinding: The gold ore is first crushed into fine particles using crushers and grinding mills.
– Chemical Treatment: The crushed ore is then treated with chemicals such as cyanide or chlorine to separate gold from other metals. This process is known as leaching.
– Electrolysis: The gold is further purified through electrolysis, where an electric current is passed through a solution containing gold ions. This results in the deposition of 99.99% pure gold.

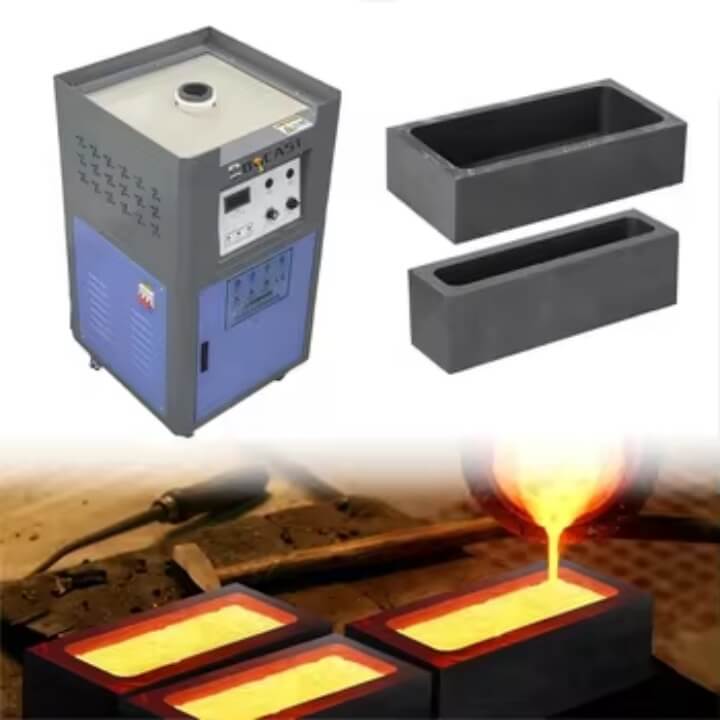

– Melting: The medium frequency melting furnace can raise the temperature to 1100 degrees within 5 minutes, melting the gold into water, and then quickly pouring it into the mold. When the temperature drops to 1064℃, the gold will solidify again and you can get a cast bar.

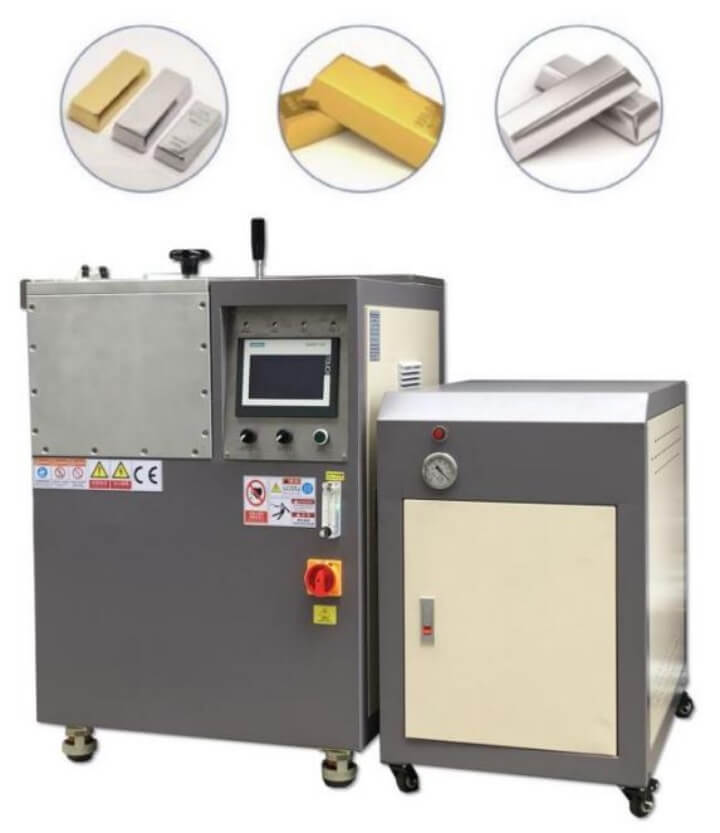

Or use a Vacuum Gold Bar Casting Machine. This machine puts the material into a graphite mold in a vacuum and protective gas environment, melts it, and then cools it to form a gold bar. The gold and silver bars produced in this environment have a smooth surface without pores or water ripples on the surface.
1.2 Equipment Used:
– Crushers and grinding mills
– Leaching tanks
– Electrolytic tanks
– Furnaces for melting and casting gold into bars or granules
2. Designing the Gold Coins and Bars
Once the gold is refined, the next step is designing the coins or bars. This involves creating detailed artwork and specifications for the final product.
2.1 Design Process:
– Artwork Creation: Skilled artists and designers create intricate designs for the coins, often incorporating cultural, historical, or symbolic elements. For bars, the design is simpler, typically featuring the weight, purity, and manufacturer’s logo.
– Digital Modeling: The designs are converted into digital 3D models using computer-aided design (CAD) software.
– Master Die Creation: A master die is created using the digital model. This die is a negative impression of the coin or bar design and is used to produce working dies.
2.2 Equipment Used:
– CAD software
– CNC (Computer Numerical Control) machines for engraving the master die
– High-resolution printers for proofing designs
3. Blanking and Annealing
The production of gold coins and bars requires precise preparation of the gold blanks, which are the raw discs or bars that will be stamped with the design.

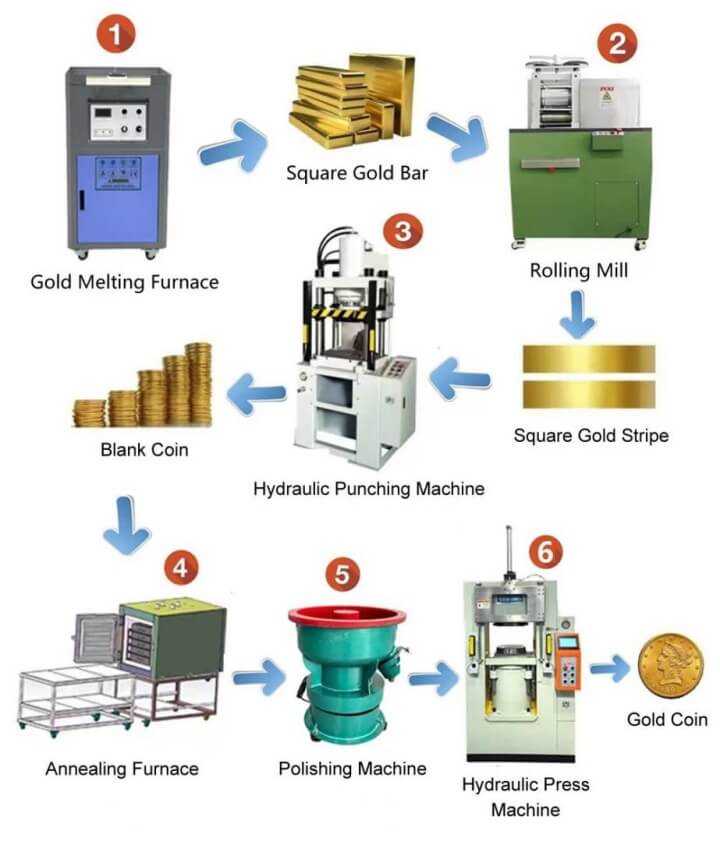

3.1 Blanking Process:
– Melting and Casting: Pure gold is melted in a furnace and cast into long strips or bars.
There are many ways to make gold bars. As mentioned above, you can use a melting furnace or a vacuum gold bar casting machine. Another more common method is a Continuous Casting Machine. The material is placed in a melting chamber for melting, and then the required gold strip is continuously pulled down through a customized mold.
– Rolling: Whether it is smelted gold bars or cast gold strips, they need to be pressed to the appropriate thickness by a sheet press, which can also make the surface of the material smoother and flatter. After repeated pressing, strips of gold strips will be formed.
– Cutting: The strips are fed into a blanking press, which cuts out round discs (for coins) or rectangular pieces (for bars) of the required size and weight.
– Polishing: The customer will put the stamped gold sheet into a polishing machine with steel balls, and repeated polishing will produce a shiny gold bar
– Annealing: The blanks are heated in an annealing furnace to soften the gold, making it easier to stamp without cracking.
3.2 Equipment Used:
– Induction furnaces for melting gold
– Blanking presses
– Polishing Machine
– Annealing furnaces
4. Stamping and Minting
The most critical step in the manufacturing process is stamping the design onto the gold blanks. This is where the blanks are transformed into coins or bars.
4.1 Stamping Process:
– Loading the Dies: The working dies, created from the master die, are loaded into a coin press or bar stamping machine.
– Striking: The gold blanks are placed between the dies, and immense pressure (up to hundreds of tons) is applied to stamp the design onto the blanks. For coins, this process is often repeated multiple times to ensure sharp details.
– Inspection: Each coin or bar is inspected for defects, such as misalignment or incomplete stamping.
4.2 Equipment Used:
– Coin presses or stamping machines
– Hydraulic or mechanical presses
5. Finishing and Packaging
After stamping, the gold coins and bars undergo finishing processes to enhance their appearance and durability.
5.1 Finishing Process:
– Polishing: The coins and bars are polished to achieve a shiny, reflective surface. Some coins may also receive a matte or frosted finish for aesthetic purposes.
– Edging: Coins often have reeded or lettered edges, which are added using specialized edging machines.
– Quality Control: Each piece is weighed, measured, and tested for purity using X-ray fluorescence (XRF) analyzers or other testing methods.
– Packaging: The finished coins and bars are packaged in protective cases or capsules to prevent damage and oxidation.
5.2 Equipment Used:
– Polishing machines
– Edging machines
– Precision scales
– Packaging machines
6. Security Features (Optional)
To prevent counterfeiting, many gold coins and bars incorporate advanced security features.
– Micro-engraving: Tiny, intricate designs or text that are difficult to replicate.
