Precious Metal Melting Furnaces

Small Vacuum induction melting furnace

Vacuum induction melting furnace
Small Vacuum Induction Melting Furnace video
Vacuum induction melting furnace

1Finished Products1

1Product Details1

[what is  Small Vacuum induction melting furnace ]

CDOCAST Small vacuum Induction melting furnace is specially designed for melting small volume non-ferrous and ferrous metals under vacuum condition, the complete melting furnace mainly consists of furnace, vacuum pump, pouring mechanism,  different levels of vacuum pump will be choosen according to different vacuum degree requirement.

The maximum temperature of this small vacuum furnace can reach 2200 degrees. It can be used to smelt precious metals (gold, silver, platinum, palladium) and other high-temperature alloys, such as nickel-based alloys.

This vacuum induction melting furnace adopted IGBT induction heating technology and comes with a rapid melting speed. For example,The melting speed of 10kg of molten metal can be completed in 1o  minutes, due to this high  efficiency feature which makes this small vacuum melter popular in the market. Moreover, the entire pouring process is carried out in a vacuum condition to ensure that the metal is protected to the greatest extent from oxidation and the quality of the castings.

Click Here To Know Other Models Of Our Model  Vacuum Induction Melting Furnace

Machine Pictures

Parameter

Model number CDO-VTF15
Power source 3 phase 380V, 50/60Hz
Applicable metal Gold, Silver, Platinum, Palladium, and their alloys
Melting time 7-10 minutes
Max capacity Palladium: 2 kg
Gold: 3 kg
Silver: 1.6 kg
Max temperature 2600℃
Water cooling requirement ≥0.3Mpa, flow rate≥20L/min, ≤45℃
Dimension 690*1200*1100mm
Weight 220 kgs
Heating technology Induction heating

Click the link to get the crucible size

Feature

[ Small Vacuum induction melting furnace Feature]

1: Integrated design, smelting power supply and furnace body are designed  integrated to one operation cabinet ,thus the whole equipment is small in size and do not occupying space

2:·Optional program heating and temperature control which can set the heating or cooling curve according to your process requirements, and the vacuum melting furnace  will automatically heat or cool according to this process

3:Cdocast small vacuum melting furnace comes With pouring device, you can pour the melted sample into the ingot mold which is prepared in advance, and pour out the sample shape you want

4:· This vacuum induction melting furnace can be smelted in a variety of atmospheres: smelting in air, protective atmosphere and high vacuum. Adopt one device to achieve multiple functions which can greatest saves your cost.

5.· Optional secondary feeding system: it can add other elements in the melting process, which is convenient for you to prepare diversified samples

6:The furnace body can be designed with stainless steel structure, and with water cooling, to ensure that the temperature of the shell is lower than 35 ℃, to protect your personal safety…

Vacuum induction melting furnace

Melting and casting process takes place in a vacuum, almost no oxidation and no loss of your precious metals

Vacuum induction melting furnace

Vacuum melting machine is equipped with two observation so that both melting and casting can be clearly seen

Vacuum induction melting furnace

Operation panel can be customized to Siemens touchscreen panel,which can make the whole operation more advanced and easier

分类
Precious Metal Melting Furnaces

Hydraulic titling Small Induction Furnace

Hydraulic Titling Small Induction Furnace
Hydraulic Titling Small Induction Furnace video
small induction furnace

1Finished Products1

1Product Details1

[what is hydraulic small induction furnace]

The hydraulic small induction furnace is specially designed for melting small volumes of 100-350 Kg of ferrous and non-ferrous metals.

The small induction furnace is equipped with a hydraulic tilting mechanism, the tilting furnace body comes with hydraulic cylinder and hydraulic station, IGBT induction heating technology is applied  for the power supply, the small induction melter comes with  PLC touch screen design, which makes the whole operation more precise, accurate and safe.

The whole furnace body is made of steel shell, with silicon steel sheet around the furnace body for magnetic insulation, which can effectively prevent the furnace body from heating up.Due to the structural design of the all-steel shell furnace body, the entire furnace is very strong and its service life is greatly extended.

Melting capacity of this small induction furnace is from 100kg upto 350kg ,graphite crucible is adopt for varies metals, the melting temperature can reach  1650 degree in 10 minutes.

Welcome to Inquiry more details about our HYDRAULIC TILTING SMALL INDUCTION FURNACE IN CHINA

Machine Pictures

50kg Small Hydraulic Tilting Induction Furnace

small hydraulic tilting furnace100-150KG Hydraulic Small Induction Furnace

Click to watch the videosmall induction furnace

100-300KG Hydraulic Induction Furnace

Click to watch the video

small induction furnace

small induction melting furnace

Hydraulic tilting furnaceHydraulic Titling Small Induction Furnace 3*The shell can be customized as an 8cm thick stainless steel plate, making the furnace stronger and more durable without rust

Parameter

分类
Precious Metal Casting Machines

Vacuum Gold Bar Making Machine

Vacuum induction melting furnace
gold bar casting machine video
Vacuum bar (3) (1)

1Finished Products1

1Product Details1

[ Vacuum gold bar Making machine]

The CDOCAST vacuum gold bar Making machine is specially designed for casting high-quality gold and silver bars and ingots. This gold bar Making machine can melt up to 4 x 1 kg of gold and silver ingots per batch.  Or max  1pcs 15kg bullion on batch. And other customized sizes bullion can also be cast in our furnace.

The entire melting process is carried out under vacuum and with argon as a protective gas. As a result, the melted ingots have a shiny surface with no water ripples.The entire vacuum melting & casting process minimizes the loss of precious metals and maximizes the prevention of metal oxidation.

The CDOCAST vacuum gold bar-making machine can cast up to 15Kg of gold bars. We can also customize the machine to make gold ingots of different sizes according to customer needs. 15kg gold bars casting needs a power supply of 75kw, the bigger the bar cast, the more power is required.

Due to the enclosed vacuum melting condition, our vacuum gold bar casting machine has almost no precious metal loss which Greatly reduces the loss of customers.

[Silver Bullion Vacuum Casting Machine]

CDOCAST Silver Bullion Vacuum Casting Machine can cast all types of silver bullion and bar, like 1kg, 10oz, 100oz, 5kg ,1000oz silver bullion or silver bar, our silver bullion Vacuum Casting Machine comes with design of different model, which can cast silver 1kg , 2kg , 4kg ,10kg ,15kg ,30kg 1000oz per batch

CDOCAST  silver vacuum Bullion Casting Furnace design with the latest induction Heating technology with Germany Imported IGBT mould which can guarantee machine work is very stable and energy saving.  the power design comes with 25kw-90kw, the 25kw power cabinet enable the machine to cast 1pcs silver bullion per cycle, and 90kw can cast 5kg silver bullion 3 pcs per time.

In a vacuum environment, the surface of the silver bullion cast is as bright as a mirror without water ripples. It has a good sales volume in the market and is popular with investors. Each Silver Vacuum Bar Casting Machine is equipped with a vacuum pump imported from Germany to ensure that the casting process can be carried out under high vacuum conditions so that the silver bullion  produced is shinier and has Higher density

The casting time of each batch depends on the size and output of silver bullion. The melting time takes about  6-15 minutes and the cooling time takes 10-15 minutes. For example, if you need to cast 10kg of silver bullions at a time, the melting time is about 10 minutes, and the cooling time is 15 minutes, which means that you can complete the casting of  full cycle of 10kg silver in 25 minutes.

CDOCASTcan also provide various customized high-quality graphite molds for the silver bullion vacuum casting machine. The service life of each set of graphite molds is guaranteed to cast more than 200 times. High quality  of graphite molds is also the key to saving production costs

Welcome to Inquiry Us today for More details about the vacuum bullion Casting  Machine for Gold/SIlver

Machine Pictures

1bar/2 bars gold & silver bars vacuum casting machine

Click here to watch the video»

Vacuum Gold Bar Making Machine

1bar/2 bars gold & silver bars vacuum casting machine with auto lid opening

vacuum gold bar making machine

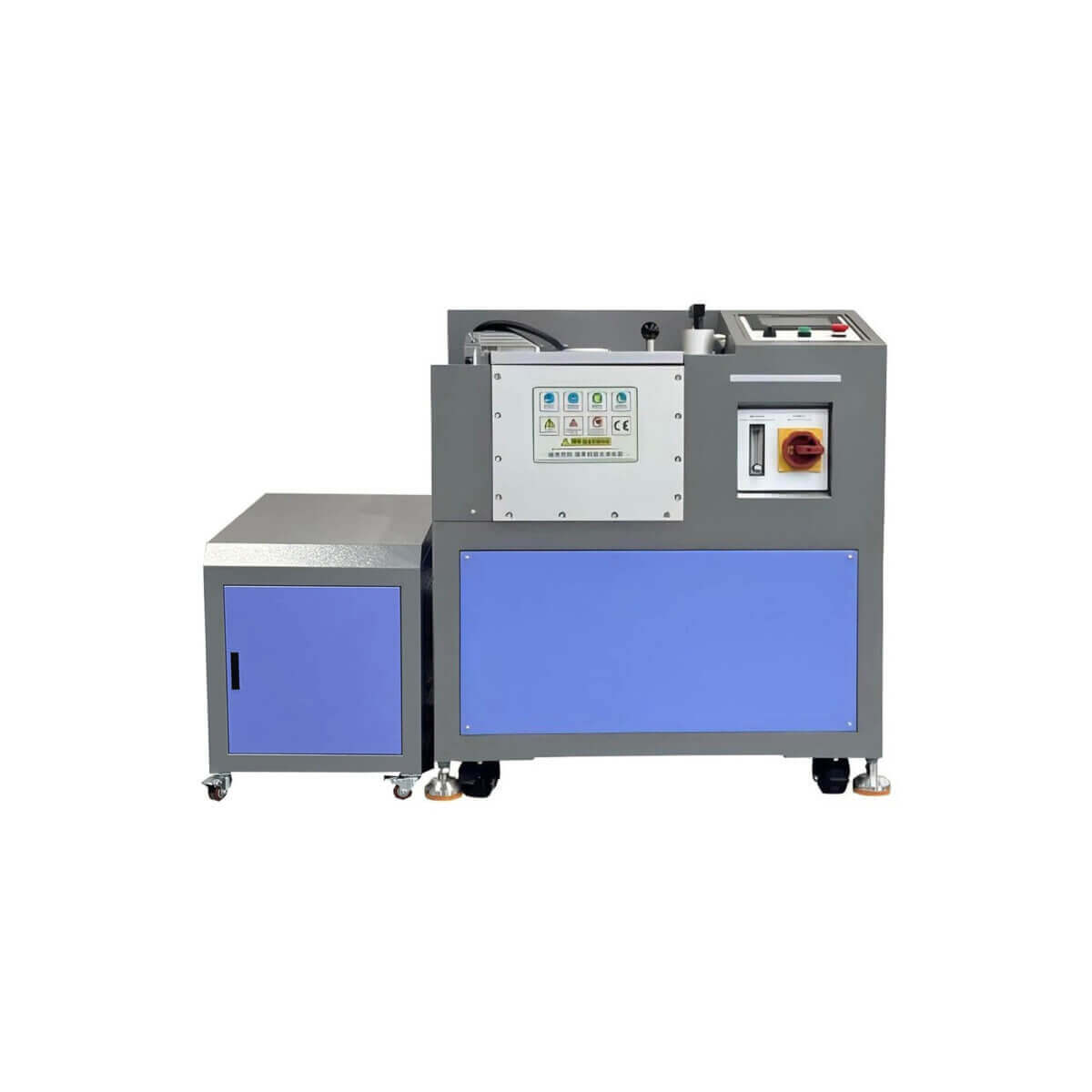

1kg gold bar casting machine4 bars gold silver bullion vacuum casting machine

Click here to watch the video»

Vacuum Gold Bar Making Machine

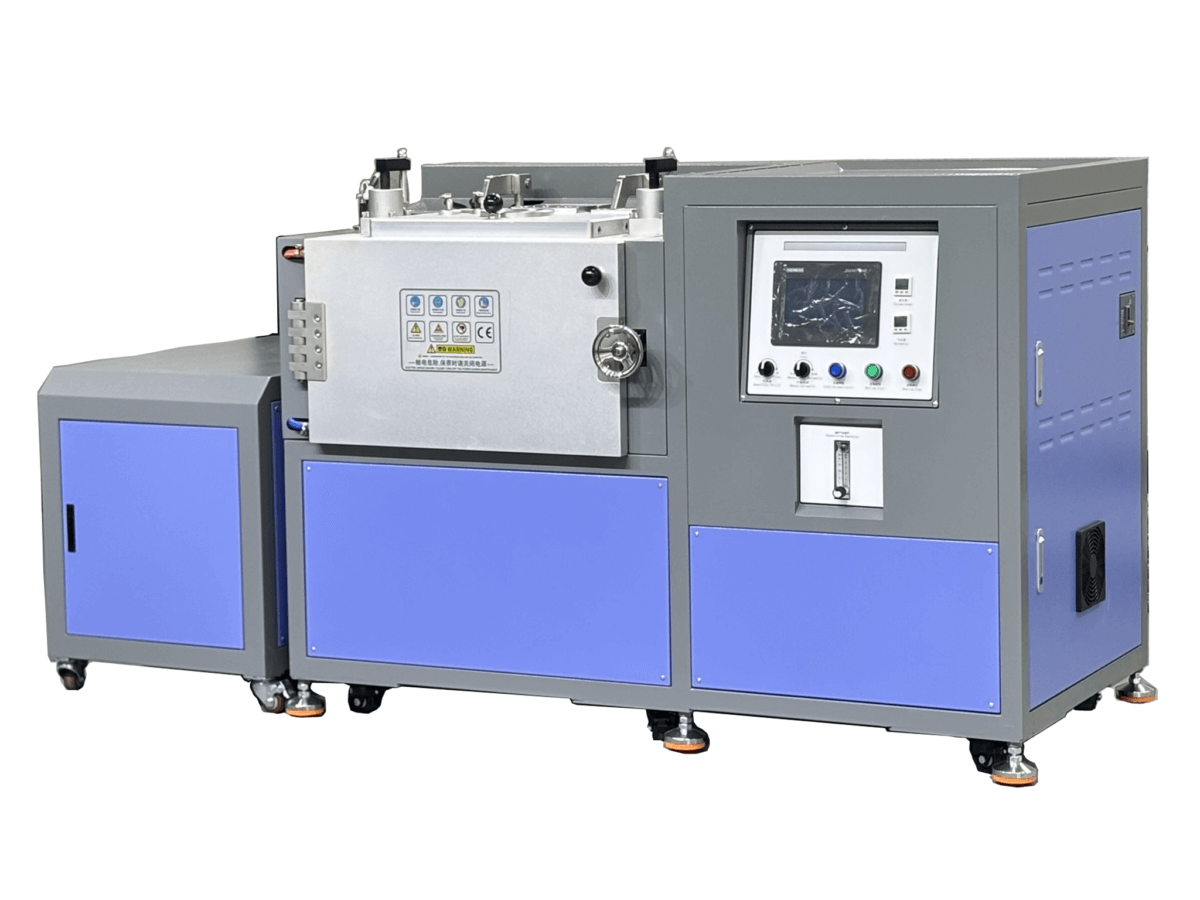

10kg/15kg/20kg/30kg gold silver ingot vacuum casting machine

Click here to watch the video»

vacuum Gold bar casting machine



Gold Silver Vacuum Bullion Casting Machine With Automatic Lid Opening System

Vacuum SIlver Bullion Casting MachineSilver Bullion Casting Machine





Tunnel Furnace For Automatic Vacuum Casting 1000oz 30Kg Silver Bullion

Click here to watch the video»

tunnel furnace for silver bullion casting

*Production Process



tunnel furnace for silver bullion casting

Parameter

Model number CDO-F1 CDO-F2 CDO-F4
Power source Three phase 380V±10%, 50/60Hz Three phase 380V±10%, 50/60Hz Three phase 380V±10%,50/60Hz
Power 25 kw 35 kw 45kw/75kw
Control system PLC/Manual PLC/Manual PLC/Manual
Applicable metal Gold and silver Gold and silver Gold and silver
Melting time About 5-10 min About 5-10 min About 6-12 min
Cooling time About 5-10 min About 5-10 min About 6-12 min
The Max capacity 1 pcs of 1kg bar or customized 2 pcs of 1kg bar or customized 4 pcs of 1kg bar or 15kg bar
Dimension 770*650*1030mm 770*650*1030mm 1530*650*980mm
Weight 180 kg 180 kg 400 kg
Protective gas Nitrogen or argon Nitrogen or argon Nitrogen or argon
Vacuum pump 63 m³/hour 63 m³/hour 63 m³/hour
Heating technology Induction heating Induction heating Induction heating
Casting mode Auto and manual mode switch Auto and manual mode switch Auto and manual mode switch

Click the link to get the mould size

Feature

Gold Silver Vacuum Bullion Casting Machine Feature

1: Our Vacuum gold bar casting machine comes with the plc touch screen system control, the operator only has to fill in the graphite mold with the pre-weighted raw material, like gold powder, and gold grain, close the door of the melting chamber as well as press the START switch to release the automatic cycle,  the casting will start automatically,  after finished the casting cycle, you can obtain the gold or silver bar which is ready for the market.

2:The induction coil of the vacuum gold bar-making machine is custom designed to be either square or rectangular in shape, with a water cooling plate in the middle of the coil. After melting, the cooling plate will be jacked up by a cylinder to rapidly cool the graphite mold, allowing the graphite cover and graphite mold to reach the same temperature, resulting in a bright and flat surface.

3:The entire casting process consists of a melting and cooling process, with melting times ranging from 6 to 12 minutes, depending on the size of the bars The cooling time is usually recommended to be 8 minutes or more, as this will maximize the lifetime of the graphite mold.

4:24-hour continuous operation, thus satisfying customers with high production output requirements.

5:There is no need for engineers to install and debug onsite. Each gold bar casting machine comes with installation and debugging video. Under the  video guidance, you can simply complete the installation and start to run our furnace, what is more, each vacuum gold bar-making machine produced by CDOCAST will be strictly tested before leaving the factory to ensure stable quality

6: Two Year Free Warranty for this Gold Silver Vacuum Bullion Casting Machine to ensure the client safty in purchase

New design Vacuum Gold Bar Making Machine

The Vuum Bar Making Machine is equipped with an automatic cover opening and closing device, which does not require manual opening and closing of the furnace cover. Easy and safe operation.

vacuum Gold Bar Making Machine Mold

High Quality Graphite molds can be customized according to different bar size,and we have professional engineer team to provide the design drawing

Vacuum induction melting furnace

After vacuum pressure casting,the products are with flat and shiny surface and density

分类
Precious Metal Casting Machines

Jewelry Vacuum Casting Machine

Jewelry Vacuum Casting Machine
Jewelry Vacuum Casting Machine
Jewelry Vacuum Casting Machine

1Finished Products1

1Product Details1

【Jewelry Vacuum  Casting Machine】

With the continuous development of modern industry, material science, and manufacturing technology are also constantly innovating. In the field of casting, vacuum pressure casting furnace has attracted widespread attention as a key technology. It achieves significant improvements in material properties and casting quality by applying vacuum and pressure during the casting process. This article will delve into the principles, advantages, and application fields of vacuum pressure casting furnaces, aiming to demonstrate the importance and potential of this technology.

1. Principle of Vacuum Pressure Casting Furnace

Vacuum pressure casting furnace is an advanced casting technology, whose core lies in controlling the atmosphere during the casting process to achieve a high vacuum environment and apply additional pressure. This process involves the following key steps

1.1 Vacuum treatment: Before the start of the casting process, the air inside the vacuum casting machine will be extracted to create a high vacuum environment. This can eliminate the presence of gases and impurities, thereby reducing the internal porosity of the casting and improving its density and uniformity

1.2 Pressurization operation: In a vacuum environment, pressure casting can be achieved by applying additional pressure to the molten metal. This pressure can eliminate bubbles inside the casting and promote a more uniform filling of the molten metal into the mold, thereby reducing shrinkage cavities and defects

CDOCAST Jewelry Vacuum Casting Machine is customized and made to melt and cast 1-6 kg of jewelry gold, silver, and other precious metals. Precious metal is melted and cast in an argon-protected atmosphere under a vacuum to protect your precious jewelry from oxidation, It achieves high density, high compactness, almost no air bubbles, and basically achieves non-shrinkage cavity casting.  Any precise jewelry and metal artwork can be perfectly done with the CDOCAST Jewelry Casting Machine. We also offer a year-round warranty and worldwide on-site training services.

CDOCAST can provide a turn-key set of jewelry casting solutions, including a wax injection machine, wax lost heating oven, jewelry vacuum casting machine &washing machine ..etc. If you want to cast your own designed jewelry, please send us an inquiry, our experts will give you Professional design solutions within 24 hrs.

Ready to receive a personalized quote for your Jewelry Vacuum  Casting Machine? CLICK TO REQUEST A QUOTE TODAY.

Machine Pictures

1-4kg Model Jewelry Vacuum Casting Machine

Click here to watch the video

jewelry casting machine detail

1 KG Mini Jewelry Vacuum Casting Machine

Click here to watch the video

Jewelry Vacuum Casting Machine

Mini Jewelry Vacuum Casting Machine

Semi Automatic Jewelry Vacuum Casting Machine

Click here to watch the video

semi automatic jewelry casting machineThe jewelry casting  process as below picture shows

Jewelry Vacuum  Casting Machine process

Video>>



To learn all equipment in jewelry casting line

Learn more through the  guided article>>

Parameter

Model number CDO-JP2 CDO-JP4
Power 20kw 25kw
Voltage 380V, 3 phase, 50/60Hz 380V, 3 phase, 50/60Hz
Casting system Vacuum pressure casting system Vacuum pressure casting system
Applicable metal Gold, K-Gold, Silver, Copper, Brass, Bronze, and their alloys Gold, K-Gold, Silver, Copper, Brass, Bronze, and their alloys
Melting time 3-5min 3-5min
Max capacity 24K Gold: 2.0 kg
18K Gold: 1.5 kg
925 Silver: 1.0 kg
24K Gold: 4.0 kg
18K Gold: 3.0 kg
925 Silver: 2.0 kg
Crucible size ∅76×∅56×123 ∅88×∅68×135
Max temperature 1600℃ 1600℃
Protective gas Nitrogen or Argon Nitrogen or Argon
Control of temperature PID PID
Oscillation Induction heating Induction heating
Overall size 800×800×1200 mm 800×800×1200 mm
Weight 155 kg 155 kg

Click the link to get the crucible size

Feature

1:CDOCAST Jewelry Vacuum Pressurized Casting Machine is designed with the most advanced PID temperature control, Max Temperature can reach up to 1600 degrees Celsius, with a temperature difference only 2 degrees.

2:The strong induction electromagnetic stirring force makes the metal solution more uniform, and the casting quality is higher.

3:The entire melting and casting process is carried out under vacuum, thus minimizing metal oxidation and minimizing metal loss.

4:CDOACAST Jewelry Vacuum Pressurized Casting Machine  Equipped with various safety alarms, such as over-current, over-pressure, water shortage and other alarms, when an emergency occurs, the machine can automatically stop

5:Integrated design of the melting and casting chambers for a more compact structure and a smaller footprint for our Jewelry Casting Machine

6: Jewelry Vacuum Casting Machine’s Pressurized casting design highly improves castings’ density and no porosity compare with the traditional casting

Advantage

Advantages of  Jewelry Vacuum Pressure Casting Machine

1:Improving the quality of castings: The vacuum pressure casting machine reduces the presence of gases and impurities, making the internal structure of castings dense and reducing the generation of defects such as pores and shrinkage. This helps to improve the mechanical properties and corrosion resistance of castings, making the final product more reliable.

2:Enhanced alloy properties: In a vacuum environment, the oxidation reaction during the casting process is suppressed, thereby reducing the oxidation loss of the alloy. This can maintain the content of specific elements in the alloy and improve its properties and properties

3:Support for complex structural castings: Vacuum pressure casting furnaces can effectively cast castings with complex structures and rich details, as high vacuum environments and pressure operations can ensure more uniform flow of molten metal in the mold, filling fine voids

4: Energy saving: Compared with traditional casting methods, vacuum pressure casting furnaces have lower energy consumption. Due to faster heating and cooling rates in high vacuum environments, the entire casting cycle is shorter, saving energy and time costs.

Jewelry Vacuum Casting Machine

CDOCAST also offer solutions for high quality wax injection machine and dewaxing burnout oven

Jewelry Vacuum Casting Machine

Pressurized casting improves density and non-porosity of castings

Jewelry Vacuum Casting Machine

CDOCAST jewelry casting machine improve casting success and jewelry quality compared to conventional casting.

分类
Precious Metal Casting Machines

Jewelry Continuous Casting Machine

Jewelry vacuum continuous casting machine
Continuous Casting Machine
vacuum continuous casting machine

1Finished Products1

1Product Details1

[Jewelry Continuous Casting Machine]

The CDOCAST jewelry continuous casting machine is designed to draw small volumes of different shapes of precious metals such as gold, silver, karat gold, copper alloys, etc. This continuous casting machine can melt&cast types of metal into different shapes, like rod, wire, from(6-20mm),strip, bar . The casting speed is adjustable about 200mm/min, and the melting capacity range from 3kg-30kg per batch.

CDOCAST  Precious Metal continuous casting machines are fitted with an inert gas protection device to minimize oxidation of the metal and, in the case of karat gold drawing,

An optional vacuum Casting design allows the entire process to be carried out under vacuum conditions if you want to cast K gold or special Metal alloy, A separate vacuum Casting Chamber will design according to the client’s requirement, which means the melting& casting will both be under the vacuum condition to prevent some special metal alloy will oxide during the casting process. vacuum continuous casting machine is ideal for the k-gold, copper alloy, and brass alloy casting.

CDOCAST continuous casting machines adopt the most advanced medium-frequency induction heating technology, which allows super high temperatures to be reached in a very short time and therefore meets the requirements for continuous casting of most metals.

Need Help? Our advisors are 24/7 online to answer any questions about the precious metal continuous casting machine. Contact us to get a free proposal today.

Machine Pictures

3kg-30kg Capacity Precious Metal Continuous Casting Machine:

Click here to watch the video

Jewelry continuous casting machine

 Vacuum Continuous Casting Machine For K-GOLD, Metal Alloy

Click here to watch the videoStrip Vacuum continuous casting machine

Vacuum Continuous Casting Machine For Rod :

vacuum continuous casting machine

Parameter

Model CDO-JC15 CDO-JC25 CDO-JC30 CDO-JC35
Power 15kw 25kw 30kw 35kw
Voltage Three phase 380V, 50/60Hz Three phase 380V, 50/60Hz Three phase 380V, 50/60Hz Three phase 380V, 50/60Hz
Suitable Metal Gold, Silver, Copper, Brass, Bronze, and their alloys Gold, Silver, Copper, Brass, Bronze, and their alloys Gold, Silver, Copper, Brass, Bronze, and their alloys Gold, Silver, Copper, Brass, Bronze, and their alloys
Melting Time About 5-6 mins About 5-6 mins About 15-30 mins About 15-30 mins
Casting speed 10-20cm/m 10-20cm/m 10-20cm/m 10-20cm/m
Capacity Gold:3.0 kg
Silver: 2.0kg
Copper:1.5kg
Gold:6.0 kg
Silver: 4.0kg
Copper:3.0kg
Gold:10.0 kg
Silver: 6.0kg
Copper:5.0kg
Gold:20.0 kg
Silver:11.0kg
Copper:10.0kg
Gas Argon Gas or Nitrogen Argon Gas or Nitrogen Argon Gas or Nitrogen Argon Gas or Nitrogen
Temperature 1600℃ 1600℃ 1600℃ 1600℃
Overall Size 800*600*1650mm 900*700*1750mm 1000*800*1850mm 1000*800*1850mm
Machine Weight 200kg 220kg 240kg 250kg

Click the link to get the crucible size

Feature

Jewelry Continuous Casting Machine Feature

1:CDOCAST  Jewelry Continuous Casting Machine Adopts intermediate frequency induction heating technology, with the advantage of high power and fast melting, and the highest temperature can reach 1300°C.  It has strong intermediate frequency stirring force, which can lead to a high degree of uniformity of the metal, which is especially helpful for the casting of gold, silver and copper alloys.

2: Equipped with independent temperature control to continuously monitor the temperature during the entire draw process.

3:Comes with the built-in continuous temperature measurement system, easy to monitor the state of metal lead casting, which leads to the best density and quality of the final product.

4:Design With the ability to work 24 hours per day, this function ensures maximum productivity to meet the high production demands of some customers.

5:Power traction casting can realize drawing pipes, drawing rods, drawing sheets, and drawing strip pipes, which has the characteristics of high speed and high density of finished products. It has the unique magnetic stirring induction heating function to make the metal smelt more uniform and increase the casting speed.

6:Special device is designed  in the Pulling for automatic detection of slippage phenomena between the roller and the semi-finished product.

7:If a rapid cooling process is required, a water spray system can be installed to cool the semi-finished product directly.

8:Each continuous casting machine is equipped with advanced hydraulic shears for easy cutting of semi-finished products.

9:Abnormal alarm system, it will automatically stop when an abnormality occurs, so as to protect the machine to the greatest extent and prevent damage to the machine.

10:Different capacities can be customized, down-draw casting, effectively reduce the sand hole of the workpiece, and meet the requirements of deep processing.

Jewelry vacuum continuous casting machine

Hydraulic shear is optional attached to the Jewelry Continuous Casting Machine

Jewelry vacuum continuous casting machine

Vacuum condition is optional and the advanced technology  ensure the finished product dense, uniform and shiny

Jewelry vacuum continuous casting machine

CDOCAST continuous casting machine can cast your precious metals to any desired shape,rod,plate, wire..etc

分类
Precious Metal Casting Machines

Metal granulator

metal Granulator

1Finished Products1

1Product Details1

[How to make silver,gold grains?- metal granulator]

The metal granulator produced by CDOCAST is applied to produce various metal  grains, such as gold, silver, K gold, copper, etc. The metal granulator includes three parts: the furnace, the water tank and the loading frame.

The molten metal will flow through the pure graphite comes with multihole at the bottom , and The whole granulation process is protected by inert gas argon or nitrogen, which minimizes the oxidation of metal.

The gold granulating machine & silver granulating machine are the most commonly used models. CDOCAST metal granulator is equipped with an argon flow protection device. During the melting &granulation process, argon protection will be injected to prevent the oxidation of precious metals to the greatest extent. while if  the customer plan to cast K gold grains, then we will recommend using vacuum granulating machine  to prevent oxidation. click here to get more information about the vacuum metal granulator.

CDOCAST can customized different metal granulator  for customers according to different metals ,different capacities, and different production efficiency for each client, welcome to inquiry us now!

Machine Pictures

1kg-10kg Integrated Gold& Silver Granulator

Click here to watch the video

10kg granulator detail

10kg metal Granulator

10kg metal granulatormetal Granulator1000oz Silver Grains Making Machine With Automatic Lifting Loading Tray

→Click here to watch the video:

30kg silver granulating machine Machine for making metal grains with Motor stirring system

→Click here to watch the video

The granulator can melt metal alloy materials uniformly and evenly due to the motor stirring system.

metal granulating machine with stir system

Vacuum Gold&K-gold&Silver Granulating Machine

The vacuum granulation equipment adopts the vacuum system

to keep the casting process from oxidation, and to ensure the granules with uniform size and shiny appearance.

1kg-6kg Gold silver Vacuum Granulating machine

→Click here to watch the video

vacuum granulating machine

10kg-50kg Gold Silver grans Making Machine

→Click here to watch the video

Platform Type Granules Making Machine

→Click here to watch the video

platform type granules making machine

→Learn more about the granules making machine

Parameter

Model CDO-MG10 CDO-MG20 CDO-MG35 CDO-MG45 CDO-MG55
Power 10kw 25kw 35kw 45kw 55kw
Voltage 380V(220V), 3 phase, 50/60Hz 380V, 3 phase, 50/60Hz
Applicable metal Gold, K-Gold, Silver, Copper, Brass, Bronze
Max temperature 1600℃ 1600℃ 1600℃ 1600℃ 1600℃
Melting time 2-5mins 5-8mins 10-15mins 10-20mins 20-30mins
Granulating time About 5mins About 10mins About 15mins About 20mins About 30mins
Casting method Gravity granulation Gravity granulation Gravity granulation Gravity granulation Gravity granulation
Max capacity Gold: 2-4 kg
Silver: 1-2 kg
Gold: 8-10 kg
Silver: 4-5 kg
Gold: 40 kg
Silver: 20 kg
Gold: 60 kg
Silver: 30 kg
Gold: 100 kg
Silver: 50 kg
Overall size 1000*500*965mm 1150*500*1100mm 1610*1550*1930mm 1610*1550*1930mm 1610*1550*1930mm
Weight 150kg 270kg 600kg 700kg 750kg

Click the link to get the crucible size

Feature

1: The granulator is used to produce high-quality precious metal particles and alloy particles with uniform color. The finished beads have no oxidation, high density and no pores, especially good spherical surface, uniform particles and stable color.

2: The metal granulator comes with Inert gas protection system, which minimize the oxidation in the process of metal melting and casting, especially suitable for precious metals and alloy metals that are easily oxidized. It also reduce the loss of smelted metal and increase the life of the crucible.

3: Applied with the Intermediate frequency induction heating technology, rapid  melting speed, it takes about 15 minutes to melt one batch, and the casting time is about 15 minutes, which means that you will get high-quality metal grains within half an hour.

4: The temperature can reach 1600°C, the granulation time is 20-30 minutes once, and the melting and granulation are completed in one. After the casting is completed, the pelletizing barrel is easy to take out.

5: Pure graphite crucible comes with quartz jacket as protect, the multihole design at the bottom can act as breaker to make the molten metal  cast into grains, what is more, It only takes 5 minutes to replace new crucible which is very convenient for the operator

6: Special cooling water to prevent adhesion of metal particles and make particles more evenly formed.

7: Metal granulator melting chamber and water tank can be designed separately or as an integrated unit, if there is not enough space for the user, we will  recommend the integrated unit, which takes up less space.

8: The detailed and complete self-diagnosis system and protection function ensure that the equipment failure rate is low.

9: After the melt is completed, the casting speed is fast, making the metal particles smooth and smooth without sand holes.

10: CDOCAST provide 2 years of after-sales service, which minimizes customers’ concerns about after-sales service.

Graphite crucible can be customized to suit different needs, the porous design of the bottom acts as a crusher to cast the molten metal into pellets

Metal granulator

The integrated design of the power cabinet and furnace facilitates operation and mobility and reduces space requirements

Metal granulator

Argon gas to protect the metal from oxidation during the melting process, and the finished product is bright and free of impurities

分类
Precious Metal Casting Machines

Small Upward Continous Casting Machine

upward continuous casting furnace
Upward Continous Casting Machine
upward casting machine

1Finished Products1

1Product Details1

[What is Small Upward Continuous Casting Machine]

CDOCAST Small upward continuous casting machine is ideal for the production of gold, silver, copper wires, sheets, or tubes, with outstanding properties of high conductivity and good drawability. Our small upward continuous casting machine has been designed with the most up-to-date technology to give you semi-finished production with the best quality in the shortest time.

CDOCAST  small upward casting machine adopts the coreless induction heating technology which can heat all metal at a rapid speed, coreless induction furnace enable melting can be 24 hrs,and also can stop any time as you like, Unlike other large-scale casting machine in the market, which must work continuously for 24 hours and non-Stopped, our small continuous manufacturing machine has strong flexibility

The small upward continuous casting machine is driven by servo motors in order to guarantee high stability in speed and high precision control. The Drawing speed is about 1000mm per minute, and the melting time usually takes about 30 minutes.

The small continuous casters adopt the Medium frequency induction heating, the strong metal stirring force can make the metal melt more fully and uniformly, due to the electromagnetic induction effect, the melting speed is rapid, the melting capacity is from 30kg-100Kg.

The most typical advantage of this small upward continuous casting machine is that it does not take up space. our continuous casting machine can cast max of four strands one time, which means each hour’s production capacity can reach up to 200kg per batch.

We also provide the wire rolling mill and wire drawing machine,

which can draw the wire to 0.2mm with the lowest investment.

It is the best choice for some customers with medium production output.

Our advisors are 24/7 online to answer any questions about this small upward continuous casting machine. Contact me to get a free proposal today.

Machine Pictures

Small Upward Continuous Casting Machine:

Click to watch the video

upward continuous casting furnace

Operation Panel:

Parameter

Model number CDO-UP45 CDO-UP70
Voltage 3P, 380V, 50/60Hz 3P, 380V, 50/60Hz
Power 45kw 70kw
Applicable metal Gold, K-Gold, Silver, Copper, Brass, Bronze, and their alloys
Capacity 50kg copper 100kg copper
Maximum temperature 1600℃ 1600℃
Temperature control range 0-1300℃ 0-1300℃
Melting time 30 minutes 40 minutes
Drawing speed 1000mm per minute 1000mm per minute
Cast scope Metals Rod, Pipe, Plate Metals Rod, Pipe, Plate
Dimensions 120(L)*63(W)*150(H)cm 120(L)*63(W)*150(H)cm
Weight 400kg 450kg

Click the link to get the crucible size

Feature

1:Different from the cored intermediate frequency induction furnace, the CDOCAST Small upward casting machine can not only work continuously for 24 hours, but also stop production at any time, which is very suitable for small factories.

2:Charcoal is added to prevent oxidation during the entire melting & casting process to minimize metal oxidation

3:Integrated design with small size design, the whole set of equipment adds up to only about 3 cubic meters, the user no need  to prepare the the speical foundation or build a platform for this small upward casting machine , Even a novice can learn to set up and use the equipment in less than half an hour.

4CDOCAST small upward casting machine Can be used for wire and tube drawing  with  various sizes.The crystallizer can be made to different specifications simply by changing the crystallizer to meet the customer’s needs.

5:: Suitable for continuous casting of gold, silver, K-gold as well as brass and copper.

upward casting machine application

Machine adopts medium-frequency induction heating to make the metal melting more fully and evenly

upward casting machine

Adopt the most advanced upward casting technology, can cast different shapes of rods depending on thecustomized mould

upwards casting Panel

A bilingual or English operation panel can be set. PLC touch screen control panel can also be chosen.

分类
Precious Metal Casting Machines

Centrifugal Vacuum Casting Machine

Centrifugal Vacuum casting machine
Centrifugal Vacuum casting machine

1Finished Products1

1Product Details1

[What is  centrifugal vacuum casting machine]

This Centrifugal Vacuum Casting Machine adopts the latest Japanese crystal intermediate frequency generator, the output power is continuously adjustable, the oscillation frequency is stable with working ability of 24 hrs continuously working.

The centrifugal motor adopts a quick-start motor which can be  driven immediately when the machine starts. It can reach the maximum speed in 0.2 seconds, and the speed is continuously adjustable.

CDOCAST centrifugal casting machine is equipped with perfect protection functions, including overvoltage, overheating, and water shortage protection. The switch is designed with mutual locking to prevent misoperation. Special pulse step function, mixing evenly and casting automatically, ensuring uniform product quality

CDOCAST centrifugal vacuum casting machine is specially designed for small-volume platinum, palladium, and stainless steel casting, this centrifugal casting machine comes with a vacuum pump design, thus the whole casting process will be in a vacuum condition, which can minimize the oxidation of the metal, When the charge is molten, the coil is retracted and the arm starts to spin in a high speed. During the rotating process, the metal gets out from the crucible and enters the flask.

This centrifugal vacuum casting machine is very suitable for small-volume platinum, palladium, and stainless steel casting. The maximum casting weight is 500g. Of course, we can also customize other platinum-casting machines.

In case you are interested in getting a quotation for a non-standard casting machine do not hesitate to send us your technical specifications

Machine Pictures

Platinum Vacuum Centrifugal  Casting Machine :

Click to watch the video

Centrifugal Vacuum casting machineCentrifugal platinum Vacuum casting machine

Vacuum Centrifugal Casting Machine Details:

Click to watch the video

Centrifugal Casting Machine

Centrifugal casting machine

Centrifugal Casting Machine With Infrared Temperature Control

Click to watch the video

centrifugal casting machine

Centrifugal Casting Machine Details

centrifugal casting machine detail

Centrifugal Casting Machine Siemens Touch Screen

centrifugal casting machine touch screen

Parameter

Model CDO-CE15 CDO-CE20
Power 15kw 20kw
Voltage 3P, 380V, 50/60Hz 3P, 380V, 50/60Hz
Applicable metal Platinum / Palladium / Steel / Stainless steel
Melting time 2min 2-3 min
Max capacity 300g (platinum) 1kg (stainless steel)
Max temperature 2000℃ 2000℃
Overall Size 800*600*1200mm 1300*1300*1300mm
Weight 230kg 450kg

Click the link to get the crucible size

Feature

Feature of centrifugal vacuum casting machine:

1: All-in-one structural design, rugged and durable

2:_suited for steel, nonferrous and precious metals, including platinum, palladium.

3:Intermediate frequency induction heating stirs the molten alloy to achieve perfect uniformity

4:castings comes with the feature of smooth surface and controlled loss

Centrifugal Vacuum casting machine

Centrifugal vacuum casting machine coil rise and fall controlled by operation panel

Centrifugal Vacuum casting machine

After metal completely melted in a vacuum, the metal comes out of the crucible by spinning and into the flask.

Centrifugal Vacuum casting machine

Specially designed for small volume platinum, palladium, stainless steel casting

分类
Precious Metal Casting Machines

Vacuum Powder Making Machine

metal vacuum powder making machine

1Finished Products1

1Product Details1

[what is vacuum Powder Making Machine]

CDOCAST Metal Vacuum Powder Making Machine is specially designed to make gold, silver,  copper, brass, steel, iron and its alloy fine powders, It adopts the vacuum pump to ensure that the powder production process under the vacuum condition can minimize oxidation.

A certain number of small holes will be drilled in the bottom of the graphite crucible, through which the molten metal can flow out, and then under the force of the high-pressure water pump break the metal liquid into very fine powder.

CDOCAST Vacuum powder making machine covers a small operation area and is very simple to operate. The melting time only takes 10-20mins. and The Powder making time can be completed in 10-20 minutes according to the particle size of the powder. Only one worker is required to operate the whole process, with the feature of small loss and high metal recovery rate.

Cdocast Vacuum powder making machine is also called water atomizer. means, the principle of this machine is to use super high-pressure water pumped by the high-pressure water pump to disperse metal melt into 100-1000 mesh size metal powder,  this small Vacuum powder making machine comes with the feature of high production efficiency and small investment

Machine Pictures

10kg 20kg 30kg 50kg Metal Vacuum Powder Making Machine

→Click here to watch the video

vacuum powder Making Machine

powder making50kg 100kg 150kg 200kg Steel Iron Copper Aluminum  Powder Making Machine

→Click here to watch the video
iron steel powder making machine

5kg Metal Vacuum Gas Atomization Powder Making Machine

gas atomization machine→Learn more about the powder making

Introduction

Water Atomizer/Vacuum Metal Powder Making Machine

The process of making metal powder by water atomization has a long history. In ancient times, people poured molten iron into water to make it explode into fine metal particles, which were used as raw materials for making steel; There are also people who pour molten lead water directly into the water to make lead pills. The process principle of making alloy powder by water atomization is the same as that of making water-burst metal liquid in ancient times, but modern technology has greatly improved the efficiency of crushing and manufacturing particles

To make metal alloy powder by high-pressure water atomization method, first, melt the raw metal in the melting furnace, and then the molten gold must be overheated for about 50 degrees and then injected into the tundish. Start the high-pressure water pump before the injection of metel solution, and let the high-pressure water atomization device start the workpiece. The metel liquid in the tundish enters the atomizer through the nozzle at the bottom of the tundish through the beam flow.

water atomizer

The atomizer is the key part for producing metal alloy powder by high-pressure water mist. The atomizer is related to the metal powder-making efficiency, Under the action of the high-pressure water from the atomizer, the molten metal liquid is continuously broken into fine droplets, which fall into the cooling liquid in the water tank and solidify into alloy powder。

In the traditional high-pressure water atomization process for producing metal powder, the metal powder can be collected continuously, but a small amount of metal powder is lost with the atomized water, In the process of producing alloy powder by high-pressure water atomization, the atomized product is concentrated in the atomization device, and then precipitated and filtered (it can be dried if necessary, and generally sent directly to the next process。

A complete set of equipment for producing metal alloy powder by high-pressure water atomization is composed of the following parts:

1:For the melting part, the medium frequency induction melting furnace is the best choice. The capacity of the furnace depends on the processing capacity of the metal powder, we have furnace capacity from 2kg to 100kg per batch.

2:  The atomization part, the equipment in this part is non-standard equipment, which should be designed and arranged according to the site conditions of the manufacturer, mainly including the tundish: when the tundish is produced in winter, it needs to be preheated;

Atomizer: the atomizer will come from high-pressure water, The high-pressure water of the pump impacts the metal liquid from the tundish at a predetermined speed and angle, breaking it into metal droplets.

Under the same water pump pressure, the amount of fine metal powder after atomization is related to the atomization efficiency of the atomizer; the atomization cylinder: it is the place where the alloy powder is atomized, crushed, cooled and collected.

3:In order to prevent the ultra-fine alloy powder from being lost with water, the obtained alloy powder should be left for a period of time after atomization, and then placed in the powder collecting box.

4:Post-processing part: powder collecting box: used to collect the atomized alloy powder and separate and remove excess water; drying furnace: dry the wet alloy powder with water;

screening machine: sieve the alloy powder, Out-of-specification coarser alloy powder can be re-melted and atomized as the return material

Feature

1: Adopt the electromagnetic induction heating principle with the feature of rapid melting time and  high production efficiency, The melting temperature rises quickly, the production efficiency is high, and the particle size distribution is good;

2: With the ability to 24-hour continuously work, can meet the needs of customers with different production output

3: Come with  vacuum Pump design, the whole granulation is carried out in the vacuum environment to minimize oxidation

4: CDOCAST vacuum powder making machine can be used for both granulation and pulverizing. with One machine you can do both purposes

5: This Vacuum powder making machine covers a very small production area and is easy to operate.  No engineer needs to sent to do the on-site installation .

6: The Vacuum powder making machine with different capacity can be customized according to customer’s demand, and the maximum capacity can reach 100 kg per batch.

7:The brand-new integrated furnace body structure design helps to improve the performance of powder making.

8:The metal smelting process can be protected by inert gas to reduce oxidation;

8:

Parameter

Integrated Type Powder Making Machine

Model CDO-PM20 CDO-PM25 CDO-PM30 CDO-PM40 CDO-PM45 CDO-PM50
Power 20 KW 25 KW 30 KW 40 KW 45 KW 50 KW
Voltage 380V, 3 phase, 50/60Hz
Melting time 10 min 15 min 18 min 20 min 25 min 30 min
Casting time 2 min 3 min 5 min 8 min 10 min 15 min
Capacity 5 kg gold 10 kg gold 15 kg gold 20 kg gold 30 kg gold 50 kg gold
Pump power 15 KW 15 KW 15 KW 23 KW 23 KW 23 KW
Water pressure 15Mpa 15Mpa 15Mpa 20Mpa 20Mpa 20Mpa
Flow rate 20L/min 20L/min 20L/min 30L/min 30L/min 30L/min
Dimension 1360*1135*2000 mm 1450*1290*2000 mm
Weight 680 kg 700 kg 720 kg 750 kg 1000 kg 1100 kg
Application metal Gold、Silver、Copper、Aluminum、Zinc、Tin、etc.

Platform Type Powder Making Machine

Model CDO-LPM50 CDO-LPM75 CDO-LPM90
Hydraulic metal
furnace
Power 50 KW 75 KW 90 KW
Voltage 380V, 3 phase, 50/60Hz
Capacity 50 kg gold 100 kg gold 150 kg gold
Platform Dimension 4*4*2.5 m 4*5*2.5 m 4*5*2.5 m
Capacity 5 kg gold 10 kg gold 15 kg gold
Powder size 200-1000 mesh 200-1000 mesh 200-1000 mesh
Hydraulic pump Inlet pressure: ≥0.1 MPA, Outlet pressure: 17MPA, Flow rate: 170L/min, Speed: 405r/min
Casting method Gravity granulation Gravity granulation Gravity granulation
Applacation metal Iron, stainless steel, platinum and other high temperature metals

Click the link to get the crucible size

Powder making machine panel

Siemens PLC control panel can be set up in multiple languages,all operations can be done with touching of the screen

Vacuum powder making machine

The dual purpose casting machine can be customized to produce powder or granule depending on the size of metal you want

Vacuum powder making machine

Every detail of the CDOCAST vacuum powder casting machine has been improved to advanced technology

分类
Precious Metal Casting Machines

Gas atomization vacuum powder making machine

vacuum gas atomization machine
gas atomizer

1Finished Products1

1Product Details1

[Gas atomization vacuum powder making machine]

CDOCAST  Gas Atomization Vacuum Powder Making Machine is a technical device used to convert metal liquids into fine particles. It usually works in a vacuum environment by spraying liquid into small particles, which quickly evaporate or solidify in the air, forming solid particles or powders.

This Vacuum gas atomization equipment is widely used in many industries, such as pharmaceuticals, chemicals, food, cosmetics, etc. Here are some possible application scenarios

1:Pharmaceutical industry: used to prepare drug granules, such as atomizing drug solutions into fine particles for oral or injection purposes.
2:Chemical industry: used in the production of powdered or granular chemicals, such as the preparation process of certain powder coatings.
3:Food processing industry: A powder form used for preparing seasonings, food additives, color pigments, etc. for easy mixing and application.
4:Cosmetics industry: used to prepare foundation make-up, eye shadow, honey powder and other cosmetics products.
5;Materials science: used for preparing powder metallurgy materials, ceramic materials, etc

The vacuum gas atomization equipment includes a vacuum induction melting furnace, where the metal alloy is melted, refined, and degassed. The refined melt is squeezed through small holes into a gas supersonic nozzle, where the melt flow is decomposed by the kinetic energy of the high-pressure inert gas flow; The metal powder solidifies in the atomization tower and is directly located below the atomization nozzle. The powder gas mixture is transported through a conveying pipe to a cyclone separator, where the coarse powder and fine powder are separated. The metal powder is collected in sealed containers located directly below the cyclone separator.

We Also Have Water Atomizer Vacuum Powder Making Machine, Click to check

Machine Pictures

5Kg Gas atomization vacuum powder making machine







Gas Atomization Vacuum Powder Making Machine

10Kg -500Kg Vacuum Gas Atomizer

gas atomizerGas Atomization Vacuum Powder Making Machine







 →Learn more about the powder making

Working Principles

Gas Atomization Vacuum Powder Making Machine Working Principles



1. Melting Process: First The furnace should be vacuumed, and the raw materials in the crucible are induced to melt in a vacuum environment. After meeting the process requirements, the metal liquid is poured into the insulation crucible of the tundish, and flows into the atomization nozzle through the guide hole at the bottom of the insulation crucible;

2. Atomization Process: The atomization nozzle is filled with high-pressure inert gas, which accelerates through the Laval structure cavity to form a supersonic airflow. The metal liquid that falls into the atomization zone is impacted and broken, causing it to atomize into fine metal droplets;

3. Powder collection: Liquid droplets become spherical particles under surface tension in the air, rapidly cool and solidify into metal powder in the atomization chamber, and then collect the metal powder through a cyclone separation system

Feature

Gas Atomization Vacuum Powder  Making Machine Feature:



1. Strong applicability, capable of preparing most metals and their alloys that cannot be atomized with air or water. Typical products include stainless steel, mold steel, high-temperature alloys, cobalt chromium alloys, aluminum alloys, etc.

2. There are various incoming materials, including alloy ingredients, parent alloy, and powder return materials;

3. The cooling rate is fast, and the solidification rate of droplets reaches 103-106K/s, rapidly solidifying into fine microcrystalline structures;

4. High purity, refined alloy under vacuum, with gas and impurity content

5. Good powder quality, using tightly coupled or free atomization nozzle technology, with high sphericity and controllable particle size;

6. Easy to operate, short production preparation time, and capable of continuous batch production;

7: High controllability: Vacuum atomization equipment usually has multiple process parameters to adjust, such as liquid injection speed, pressure, temperature, etc., allowing the operator to accurately control the size, shape, and distribution of particles.
8: Stable powder quality: Due to atomization in a vacuum environment, the influence of impurities and oxygen in the gas on the powder can be reduced, thereby ensuring the quality and stability of the powder.

9: Avoiding oxidation reactions: Due to the low oxygen content in the vacuum environment, oxidation reactions of some substances can be avoided during the atomization process, thereby maintaining the chemical properties of the raw materials

Parameter

Gas Atomization Vacuum Powder Making Machine Parameter:

Model CDO-GP5
Voltage 380V,3P
Max temperatuer 1800℃
Capacity 5kg molten iron
Gas pressure ≥5MPa, pressure control accuracy 2~3%
Gas flow rate 3.0-30Nm³/min, flow control accuracy 3%
Commonly used powder granules size segments 15~45μm,15~53μm,53~150μm
Power supply Adopts power Medium frequency power supply
Oscillation frequency 1-20KHz
Max input power 45KW
Output current 15-95A
Output voltage 70~550V
Cooling water ≥0.2MPa ≥6L/min
weight 35KG
Load duration 100%
Input voltage 380V 3P 50/60Hz
Chamber size Φ500*500mm
Vacuum degree < 5X10-3Pa
Chamber inflation pressure < 0.05MPa
Boost rate <4 Pa/h
Burnout protection and display yes
Over temperature protection yes
Overcurrent protection yes
Under water pressure protection yes
Temperature control PID
Control accuracy ± 1~ 5 ℃(more than 600℃)
Atomization system The atomization system consists of nozzles, high-pressure air pipes, valves, etc.
Gas supply system The gas supply system is a device that provides gas to the atomizing nozzle. It consists of valves, high-pressure pipes and gas source busbars.
Atomization chamber It is a container that can connect all devices together as required. It is a space where metal droplets condense. The inner wall is stainless steel, the outer layer is carbon steel, and the middle is a water-cooled interlayer.
Powder collector During the powder making process, some ultra-fine powder flies out along the pipe with the high-speed air flow. If not collected, it will pollute the environment and waste materials, so they must be recycled. The current recovery method is to use cyclone separators and water phase collection methods to solve the problem.
Control system It adopts PLC plus touch screen control, and all operations are integrated on the touch screen. The software interface is simple and easy to operate, and one-click vacuuming can be achieved. Support data collection, storage and export.
Observation window Diameter 90mm

Click the link to get the crucible size

Powder making machine panel

Gas Atomization Vacuum Powder Making Machine equipped PLC touch screen which the control panel can be set up in multiple languages, and all operations can be done with touching of the screen

gas atomizer vacuum Pump

According to Powder making Process demand, diffusion pumps or molecular pumps can be selected to control the vacuum degree of melting process, Minimize the oxidation rate of metals

Adopting advanced intermediate frequency induction heating technology from Germany, Rapid Melting Speed, high melting efficiency and strong stability, capable of working continuously for 24 hours
